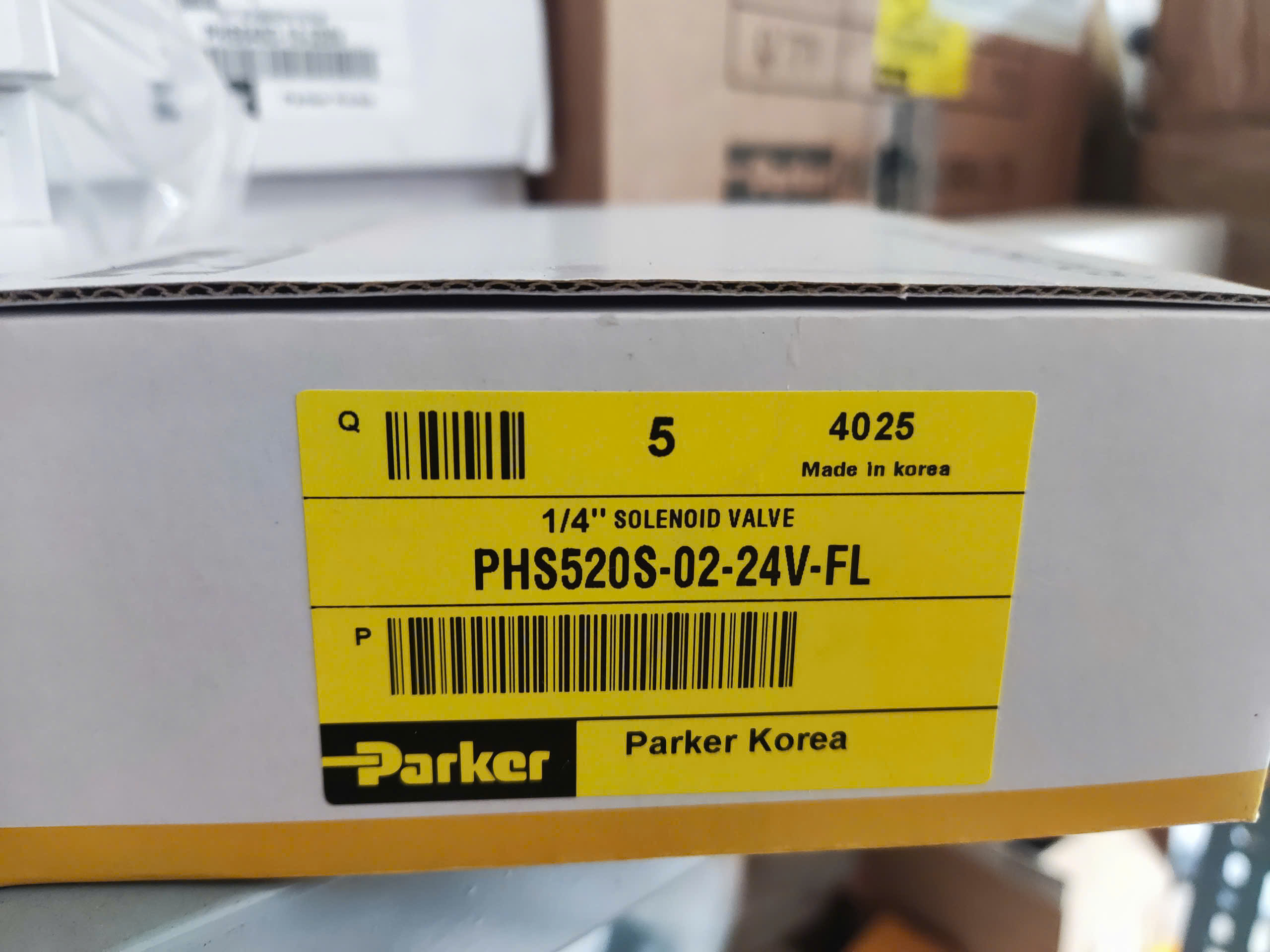

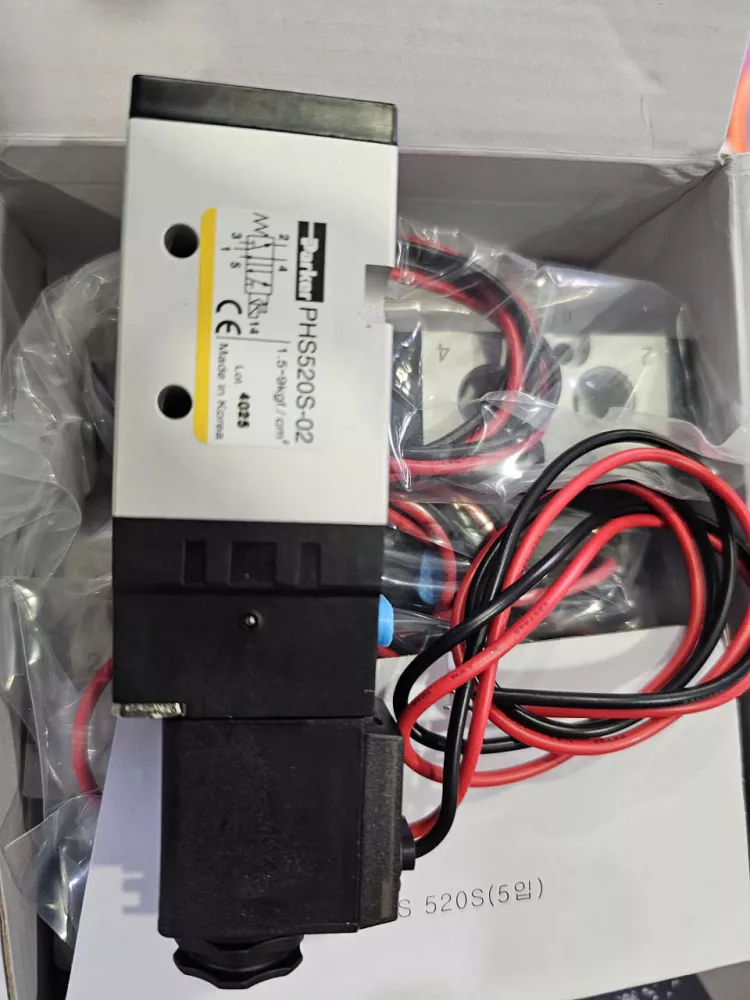

PHS520S-02-24V-FL
| Flow Capacity (Cv): | 1 |
| Port Size: | 1/4" |
| Actuation Type: | Solenoid Air |
| Mounting Type: | Inline |
| Number of Manifold Outlets: | 15 |
| Port Type: | PT |
| Input Supply Voltage: | 24 VDC |
| Overide Functionality: | Non-Locking |
| Nominal Flow Coefficient: | n/a |
| Number of Ports: | 5 |
| Maximum Flow Rate: | n/a |
| Fieldbus Protocol: | n/a |
| Specifications Met: | CE |
| Number of Positions: | 2 Position Single Solenoid |
| Pressure Rating: | 22 to 130 psi, 1.5 to 9 bar |
| Operating Temperature: | 5 to 60 °C, 41 to 160 °F |
| Media: | Air |
| Lubricant: | Non-lubricated / Lubricated Air |
| Power Consumption: | 3 W |
| Valve Type: | 2-Way |
| Body Material: | Anodized Aluminum |
| Seal Material: | Nitrile |
| Maximum Operating Pressure: | 9.0 bar |
| Maximum Operating Temperature: | 60.0 °C |
| Minimum Operating Temperature: | 5.0 °C |
| Electrical Connection: | Lead Wire w/Lamp Indicator   |
PHS520S-02-24V-FL
| Flow Capacity (Cv): | 1 |
| Port Size: | 1/4" |
| Actuation Type: | Solenoid Air |
| Mounting Type: | Inline |
| Number of Manifold Outlets: | 15 |
| Port Type: | PT |
| Input Supply Voltage: | 24 VDC |
| Overide Functionality: | Non-Locking |
| Nominal Flow Coefficient: | n/a |
| Number of Ports: | 5 |
| Maximum Flow Rate: | n/a |
| Fieldbus Protocol: | n/a |
| Specifications Met: | CE |
| Number of Positions: | 2 Position Single Solenoid |
| Pressure Rating: | 22 to 130 psi, 1.5 to 9 bar |
| Operating Temperature: | 5 to 60 °C, 41 to 160 °F |
| Media: | Air |
| Lubricant: | Non-lubricated / Lubricated Air |
| Power Consumption: | 3 W |
| Valve Type: | 2-Way |
| Body Material: | Anodized Aluminum |
| Seal Material: | Nitrile |
| Maximum Operating Pressure: | 9.0 bar |
| Maximum Operating Temperature: | 60.0 °C |
| Minimum Operating Temperature: | 5.0 °C |
| Electrical Connection: | Lead Wire w/Lamp Indicator |
