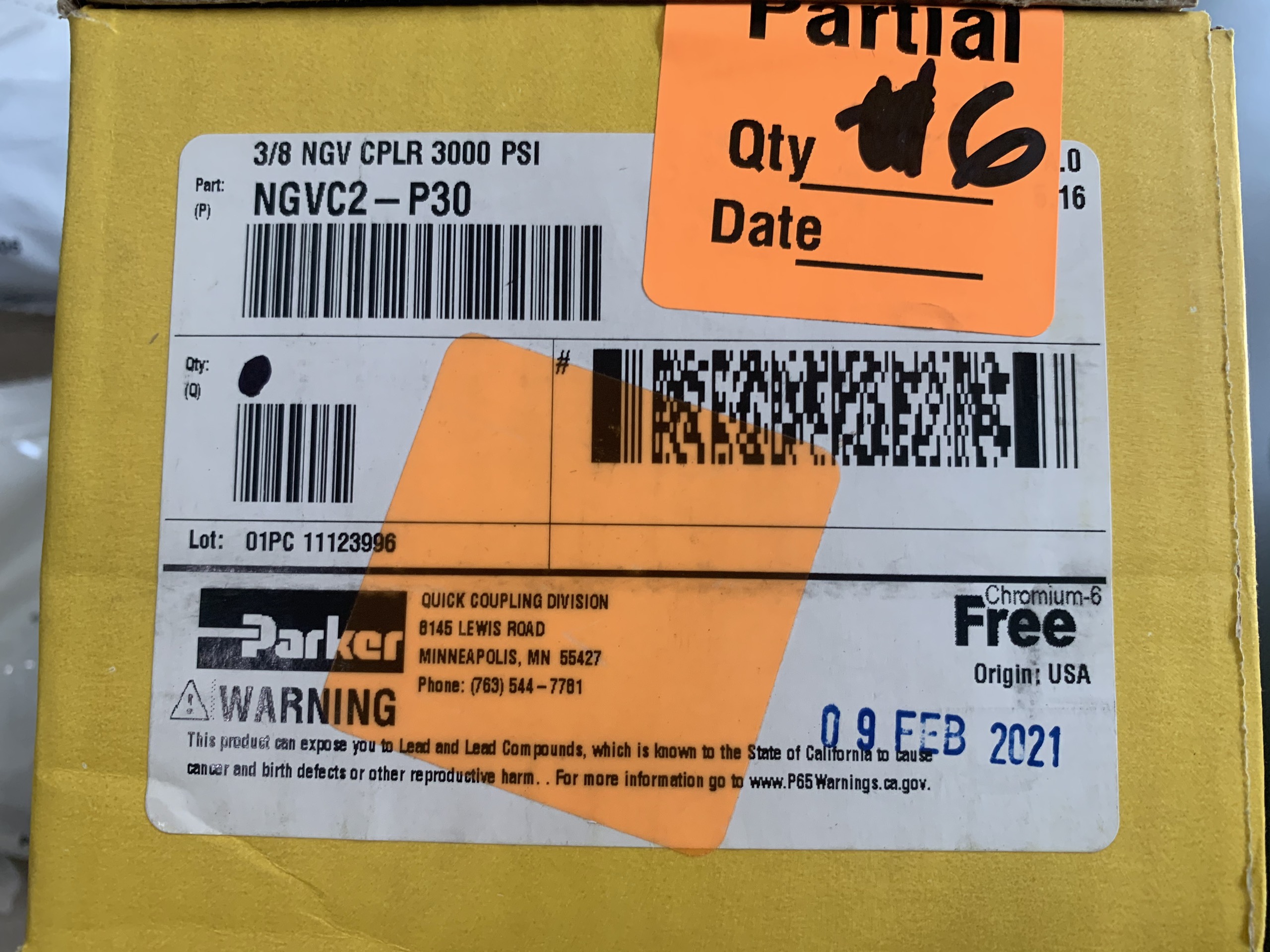

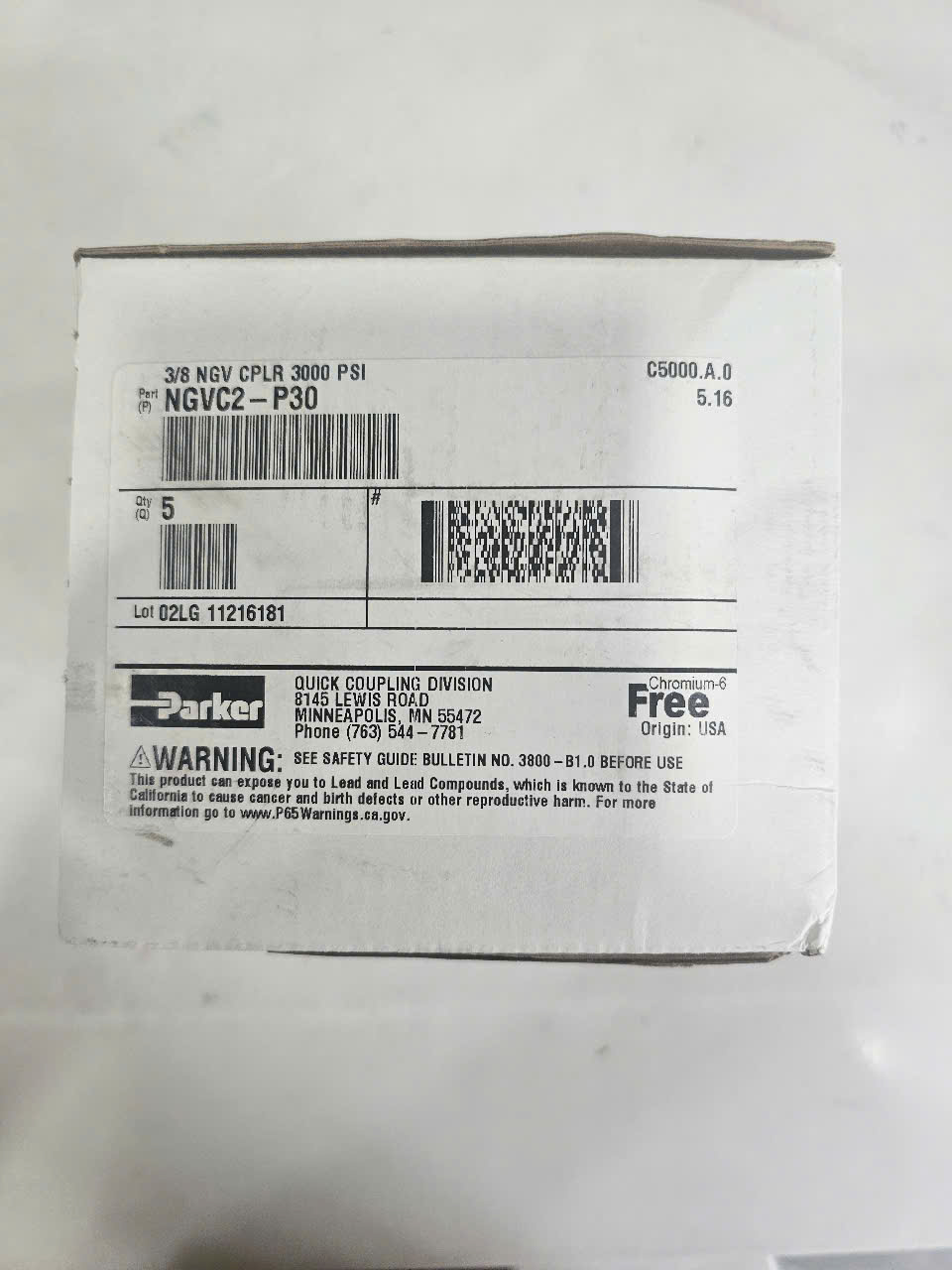

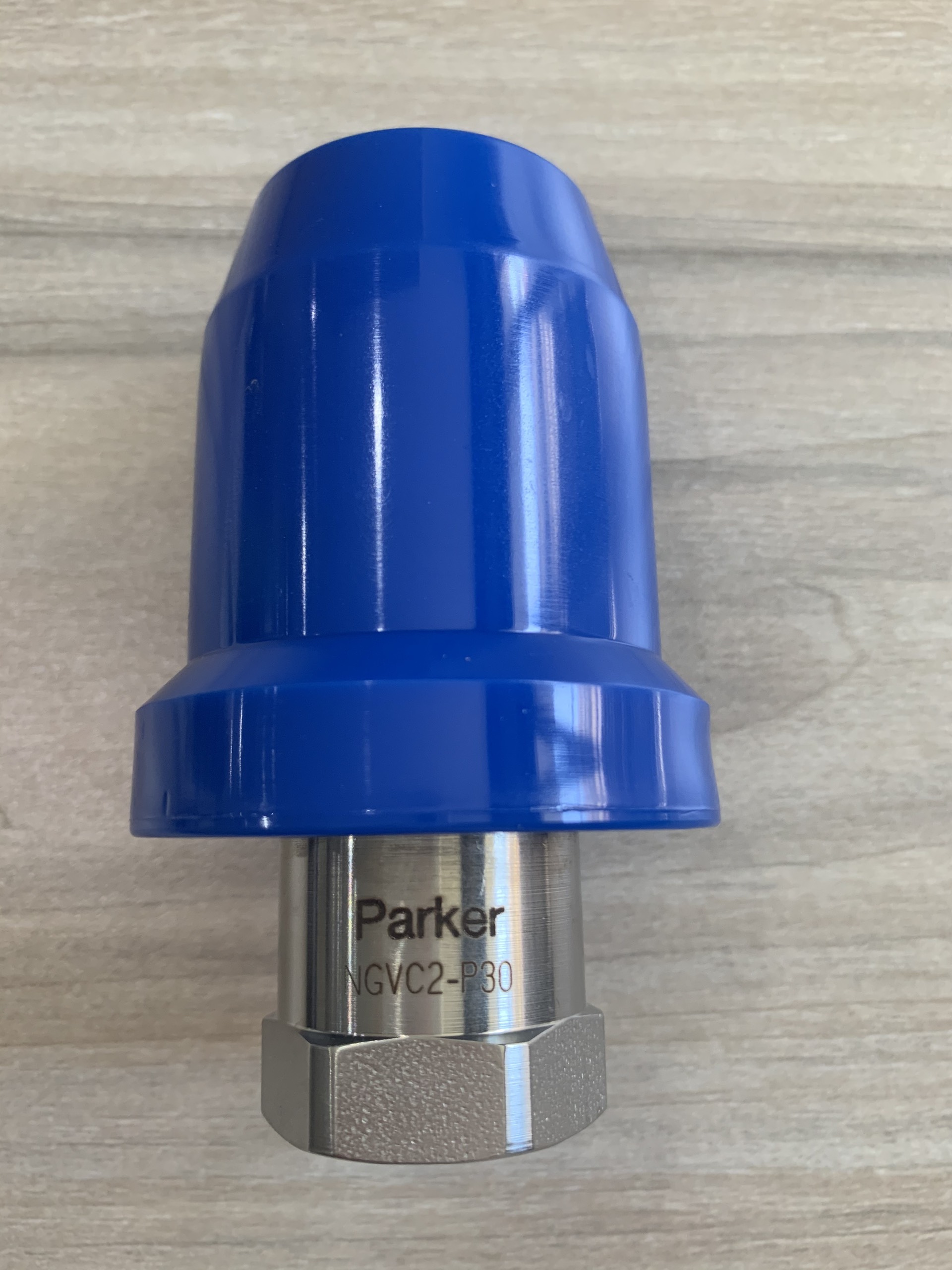

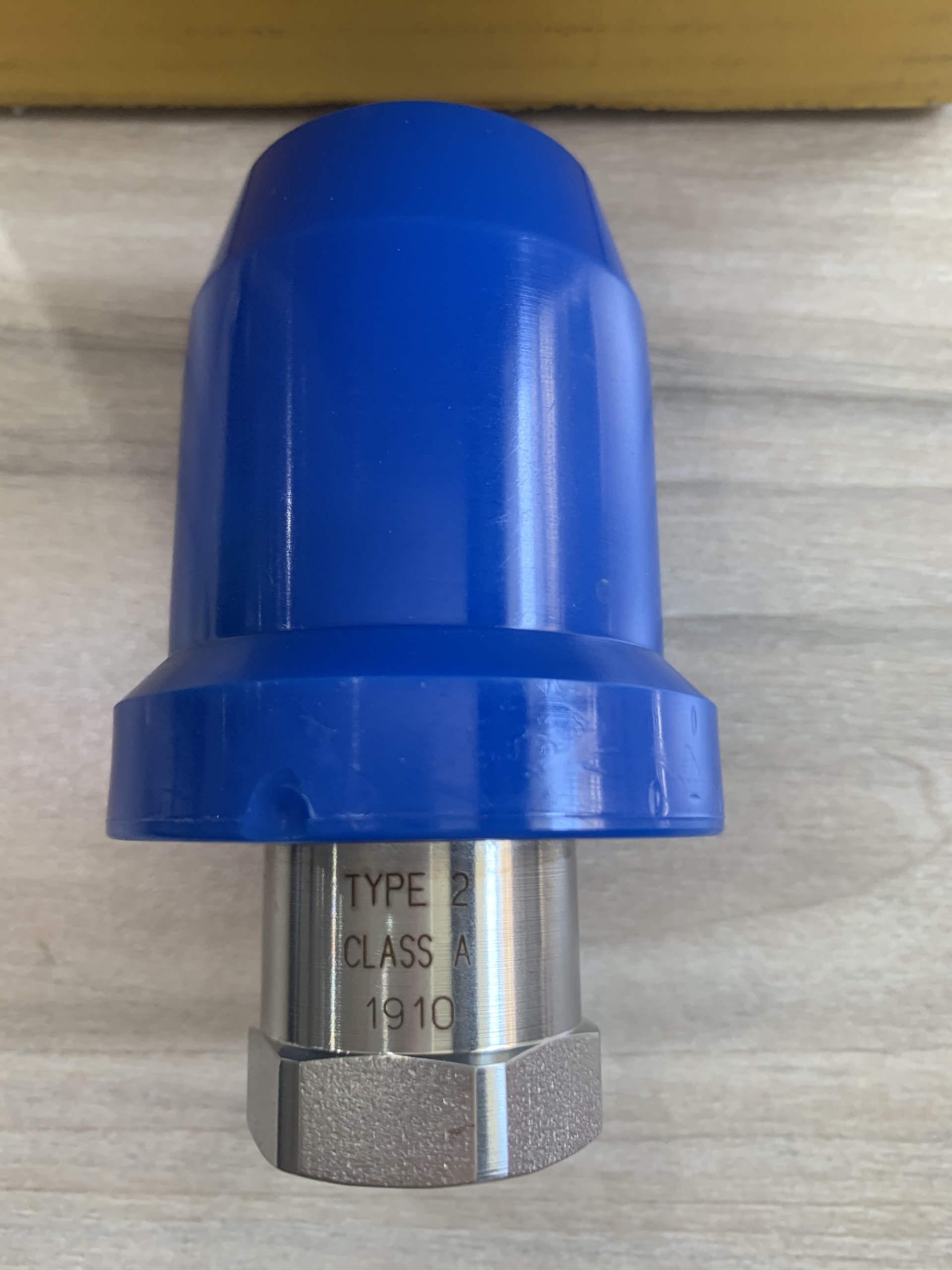

NGVC2−P30

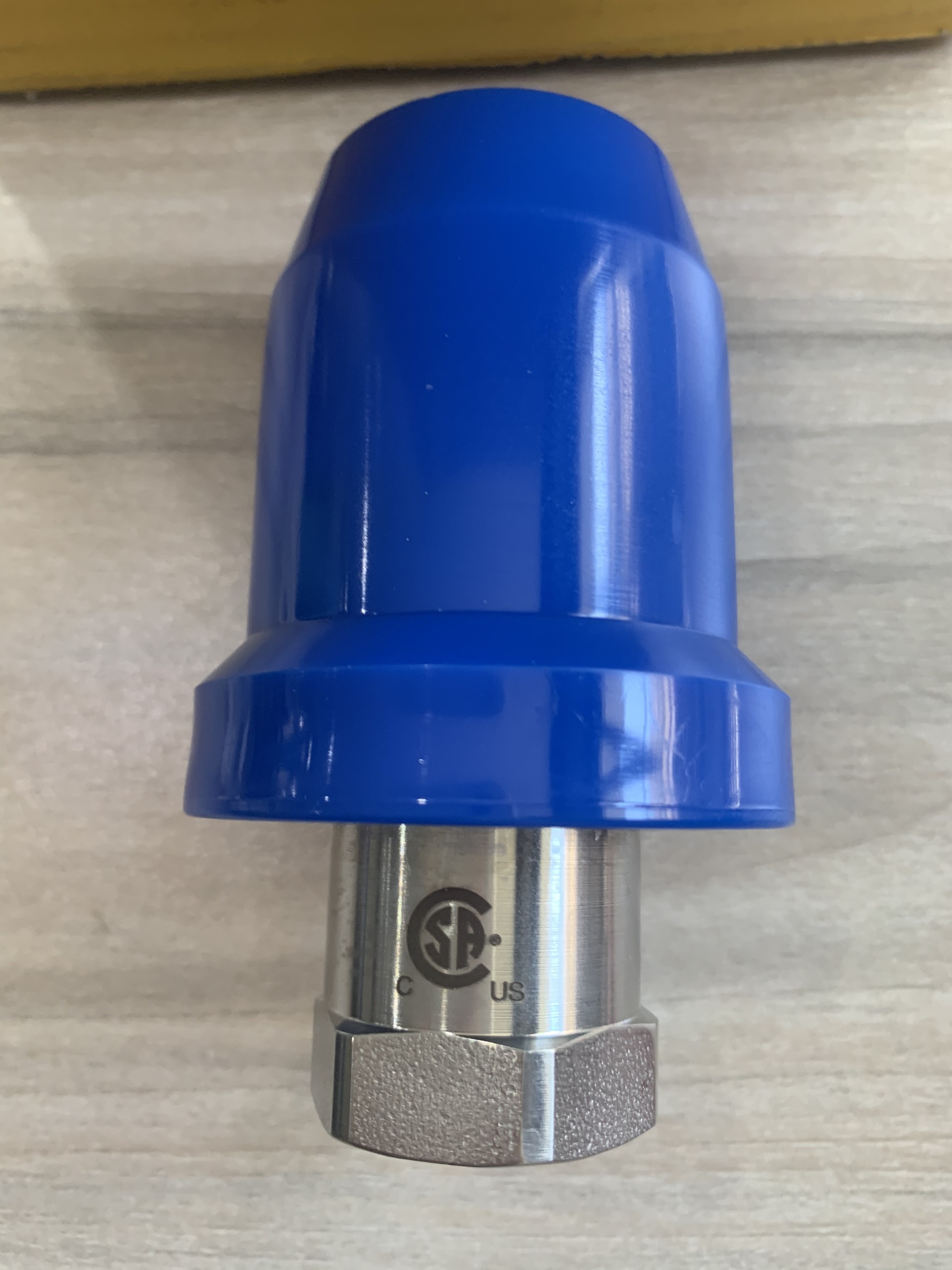

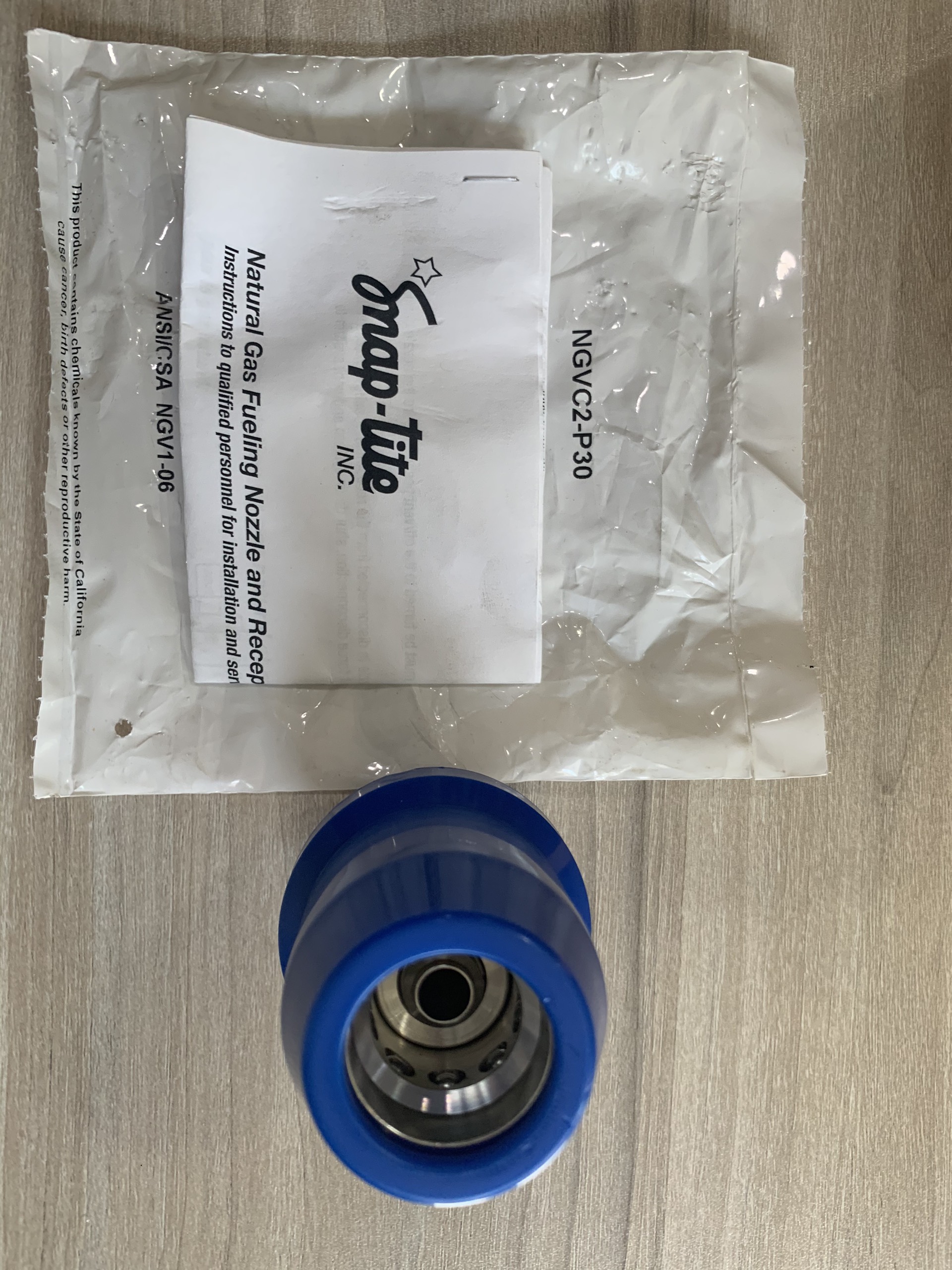

Type: CNG (Compressed Natural Gas) fueling nozzle
Connection Style: Push-to-connect
Standard: Compliant with ANSI/CSA NGV1
Application: Used in natural gas vehicle (NGV) refueling systems
| Parameter | Value |
|---|---|
| Operating Pressure | Up to 3000 psi (207 bar) |

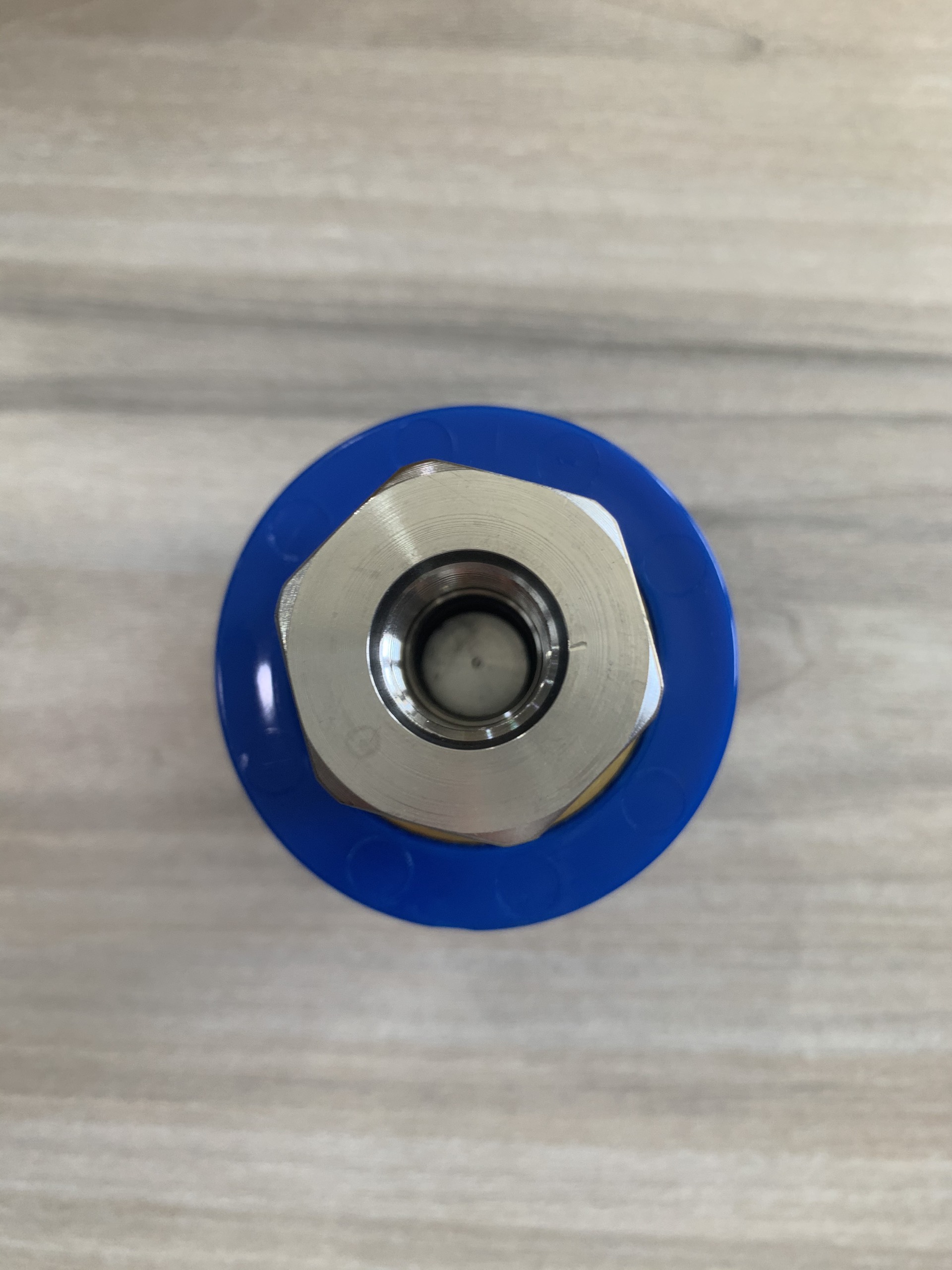

| Connection Size | 3/8" UNF male port |
| Flow Rate | Approx. 2100 SCFM |
| Operating Temperature | –40°C to +85°C |
| Body Material | Stainless steel |
| Seal Material | Nitrile (NBR) and Urethane |
| Sleeve Material | Polyurethane protective cover |
Push-to-connect operation with one-hand handling
Durable stainless-steel construction ensures long service life

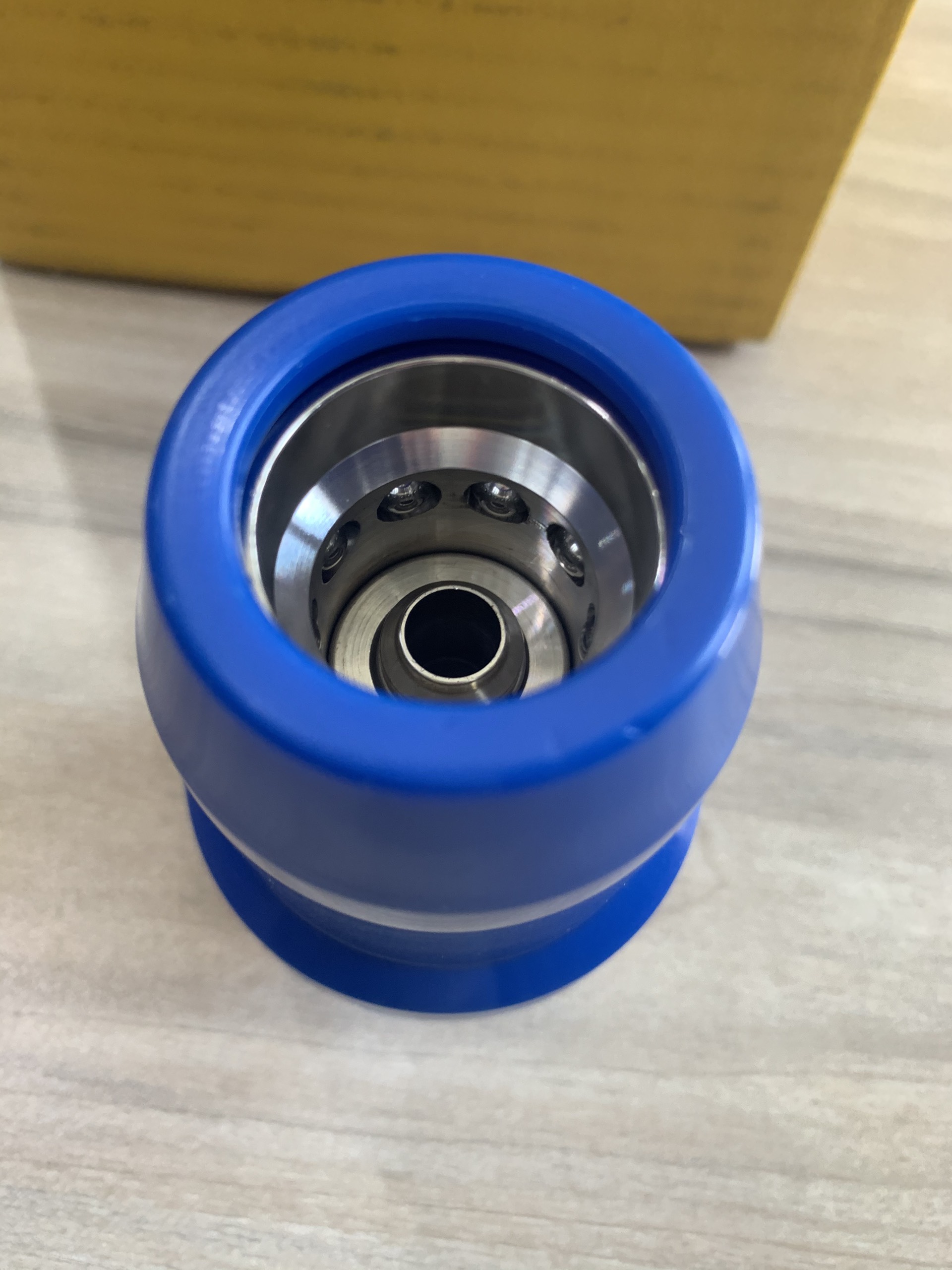

Ball-locking mechanism ensures secure, leak-free coupling
Protective sleeve prevents damage to vehicle fill ports
Vent-free disconnection for clean and safe operation
Compatible with NGV1 receptacles (FMS-type)
NGVC2−P30
Type: CNG (Compressed Natural Gas) fueling nozzle
Connection Style: Push-to-connect
Standard: Compliant with ANSI/CSA NGV1
Application: Used in natural gas vehicle (NGV) refueling systems
| Parameter | Value |
|---|---|
| Operating Pressure | Up to 3000 psi (207 bar) |
| Connection Size | 3/8" UNF male port |
| Flow Rate | Approx. 2100 SCFM |
| Operating Temperature | –40°C to +85°C |
| Body Material | Stainless steel |
| Seal Material | Nitrile (NBR) and Urethane |
| Sleeve Material | Polyurethane protective cover |
Push-to-connect operation with one-hand handling
Durable stainless-steel construction ensures long service life
Ball-locking mechanism ensures secure, leak-free coupling
Protective sleeve prevents damage to vehicle fill ports
Vent-free disconnection for clean and safe operation
Compatible with NGV1 receptacles (FMS-type)
