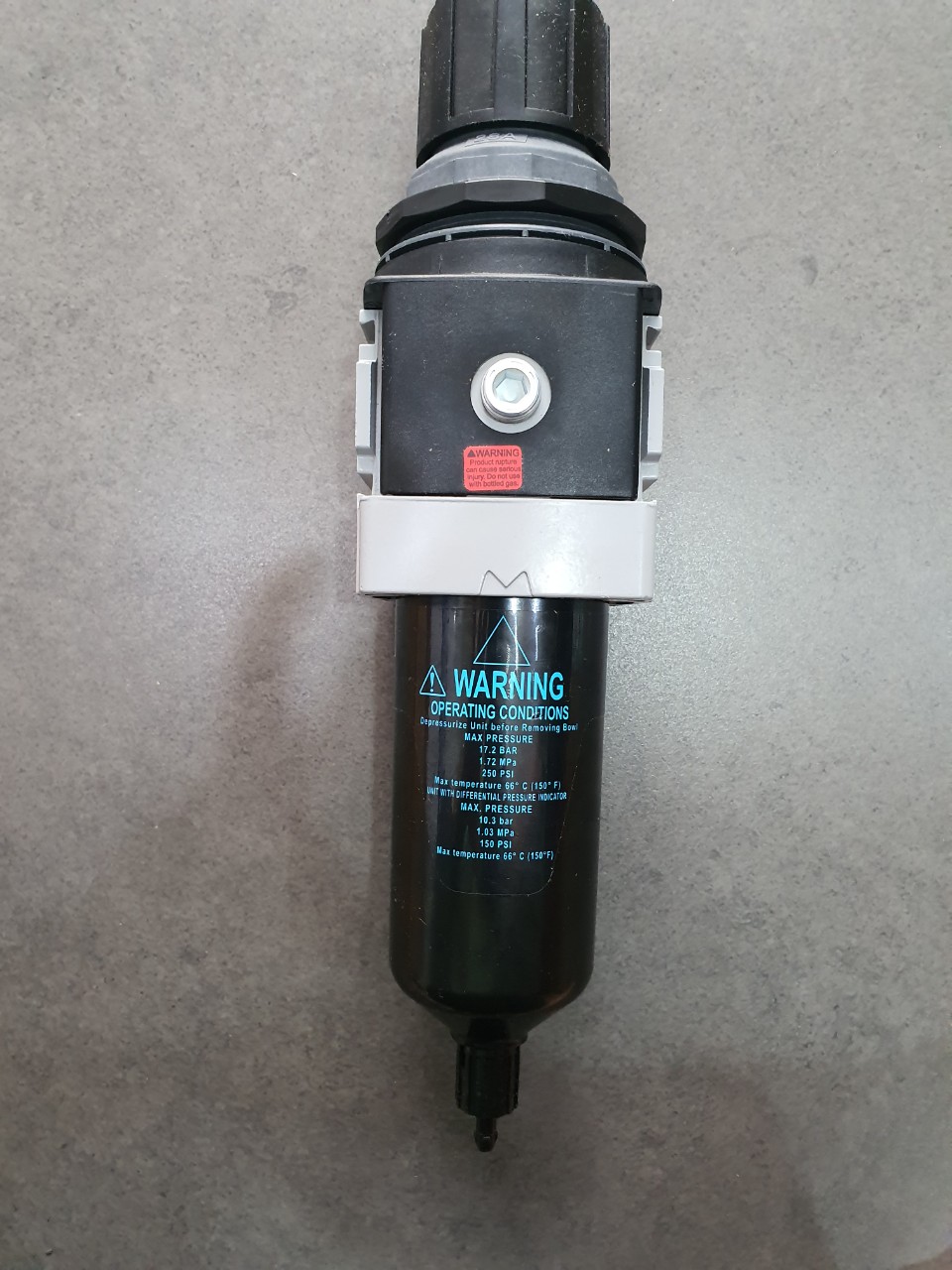

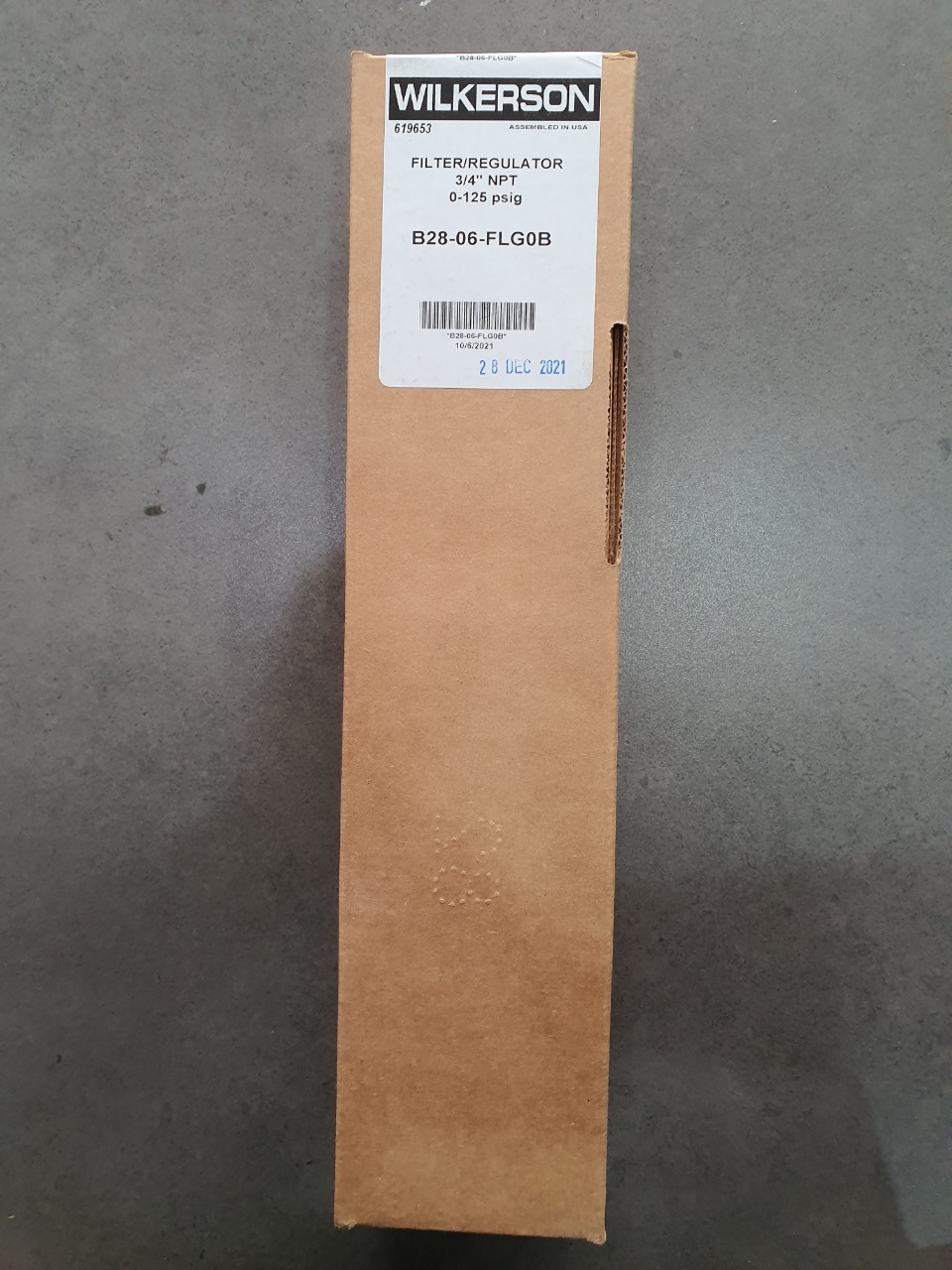

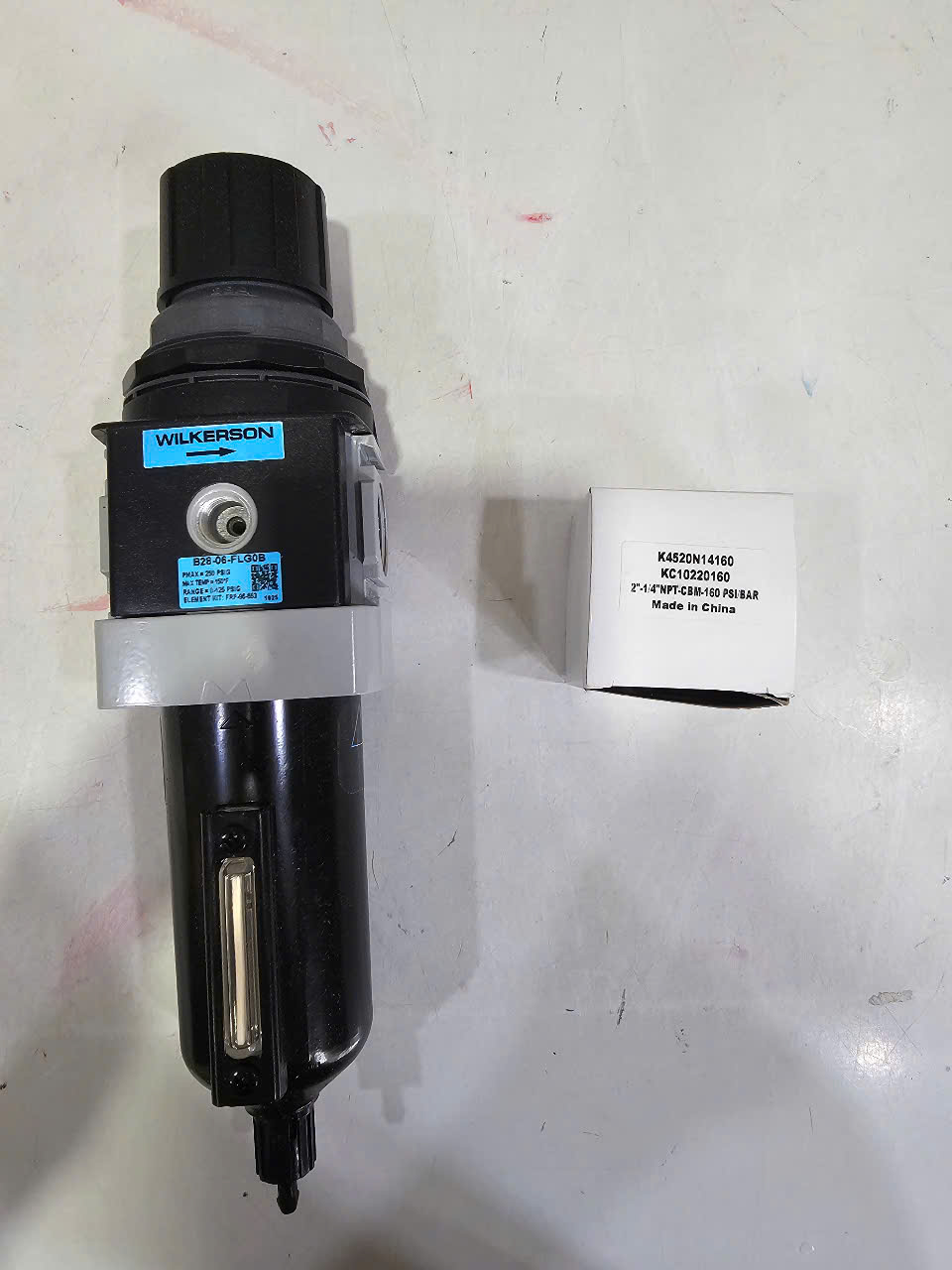

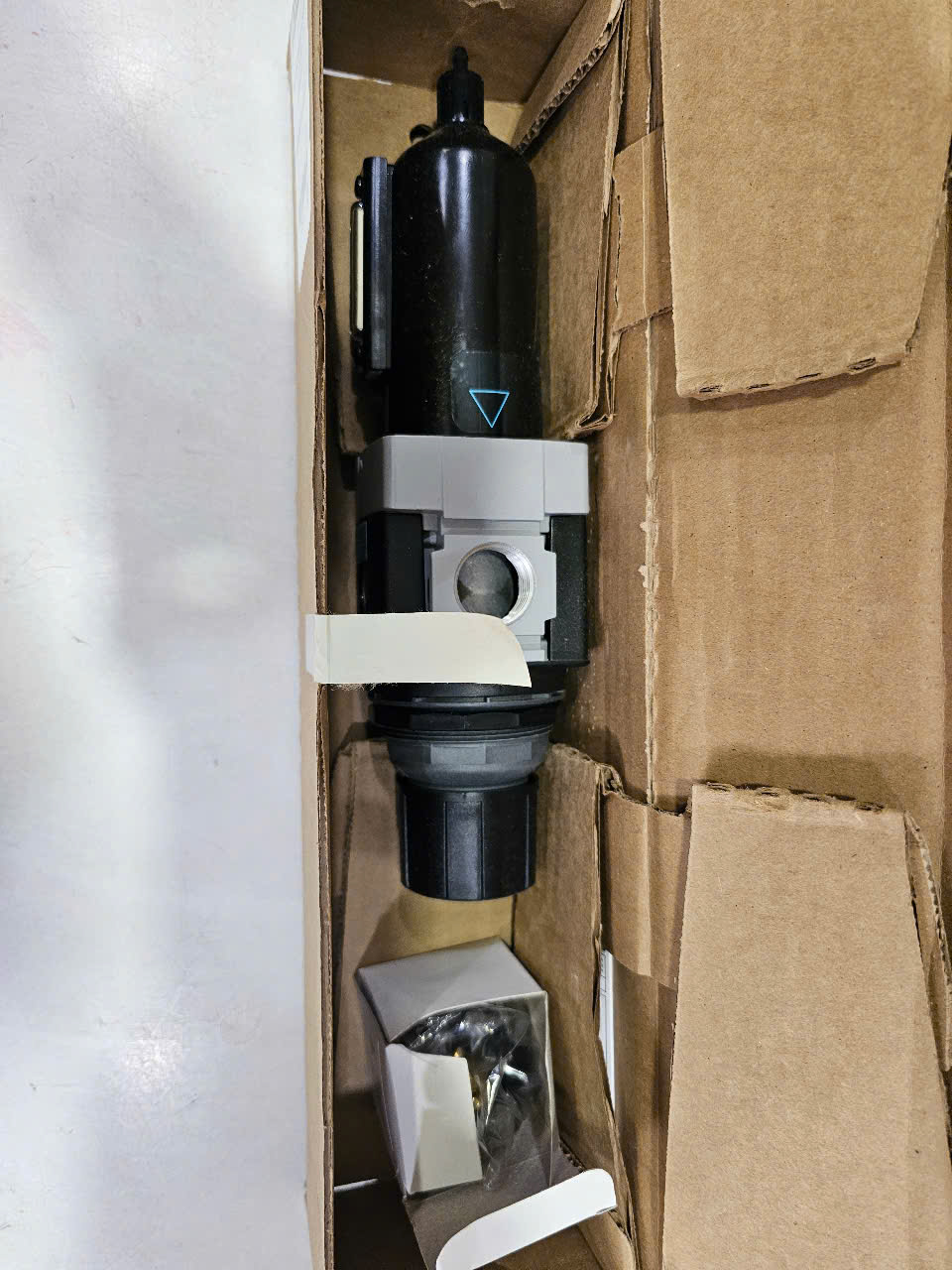

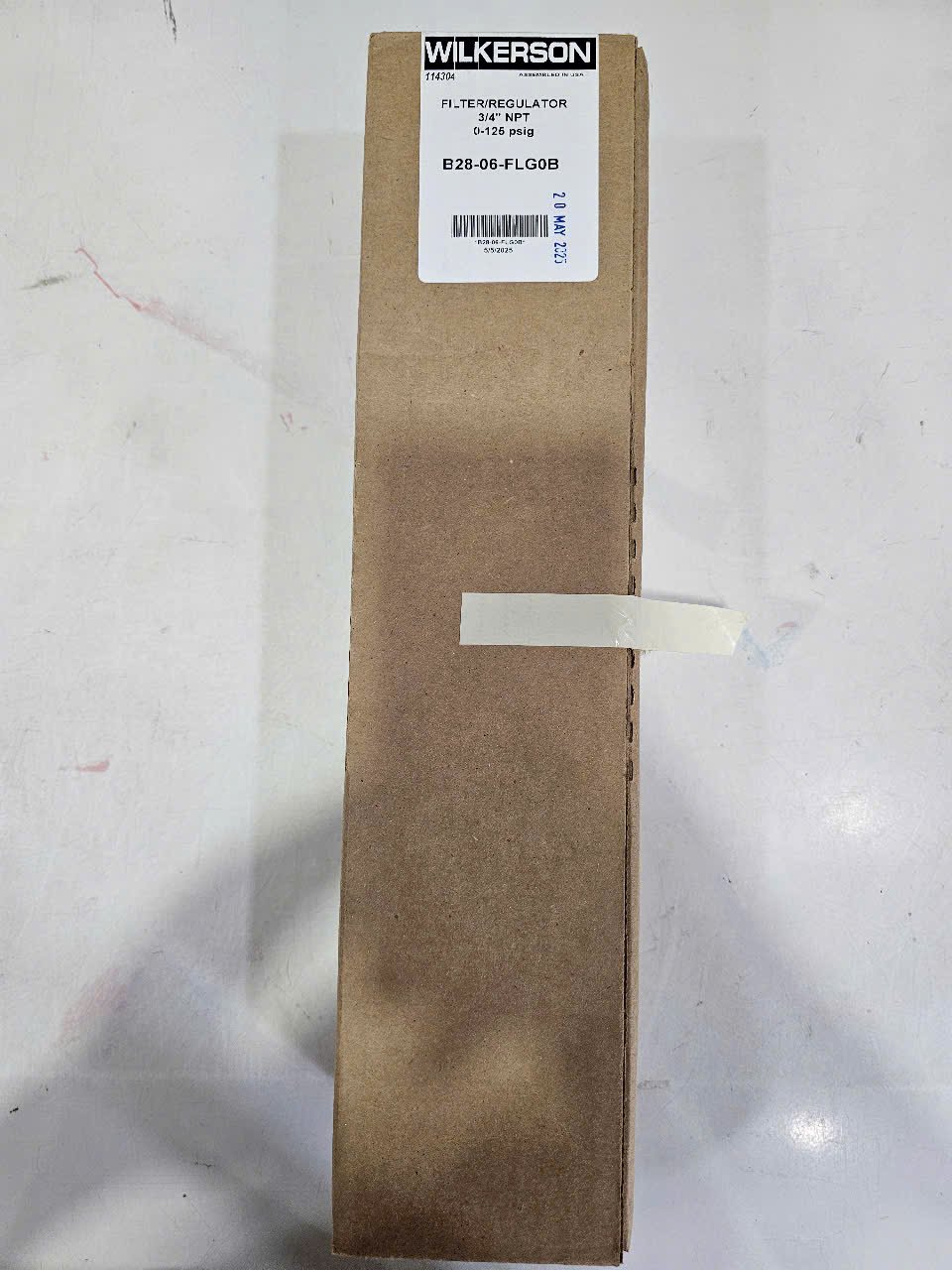

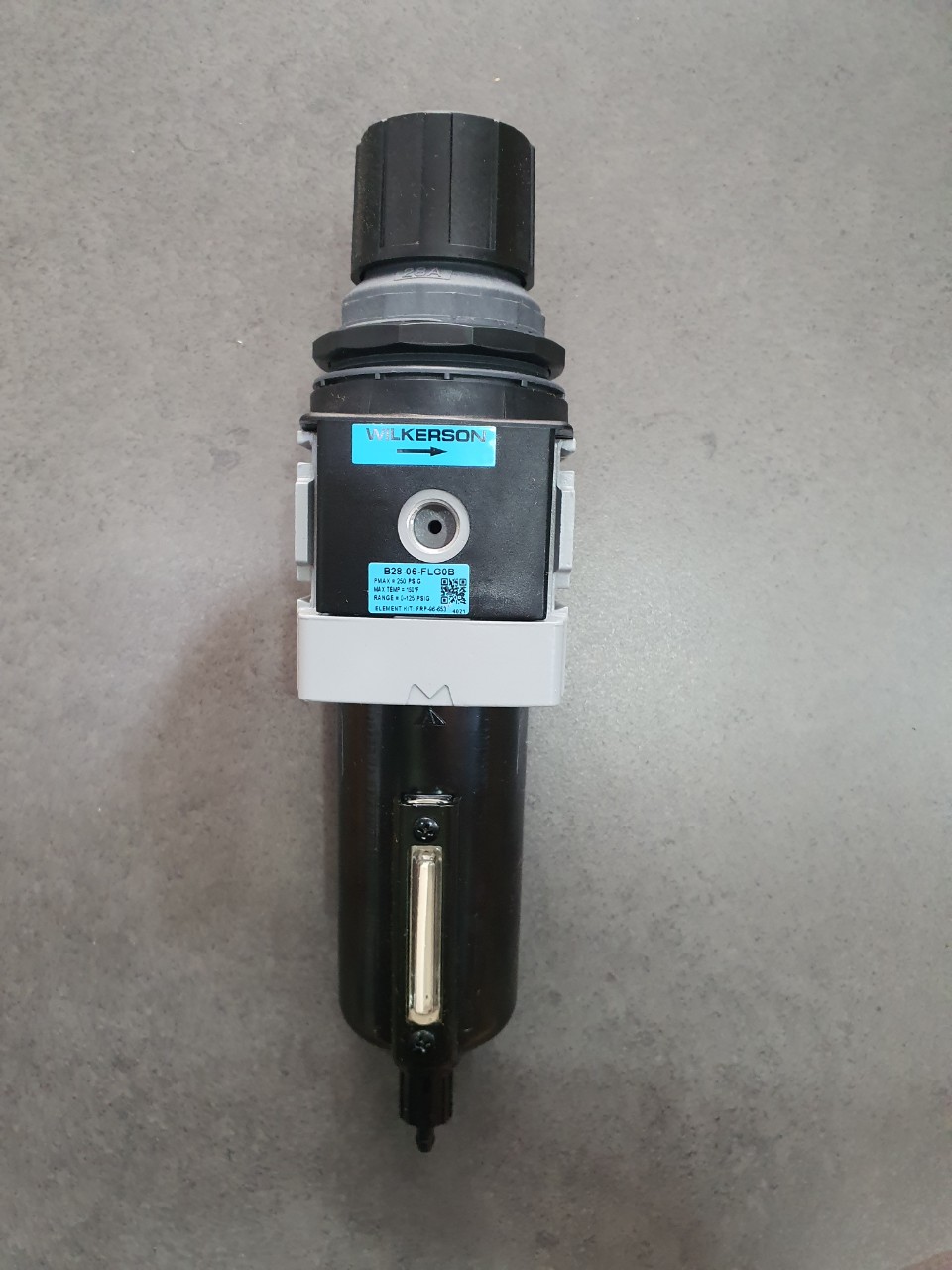

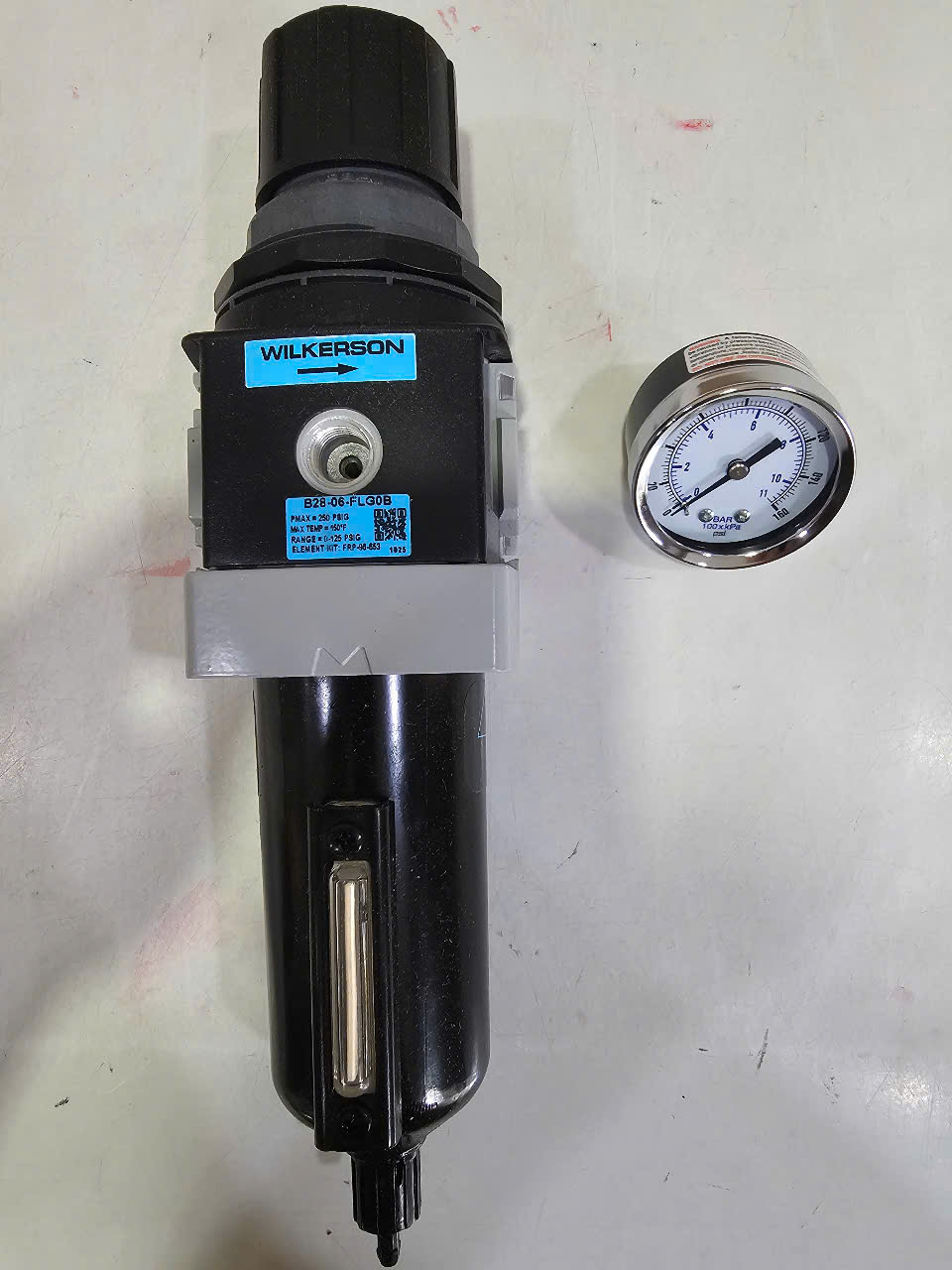

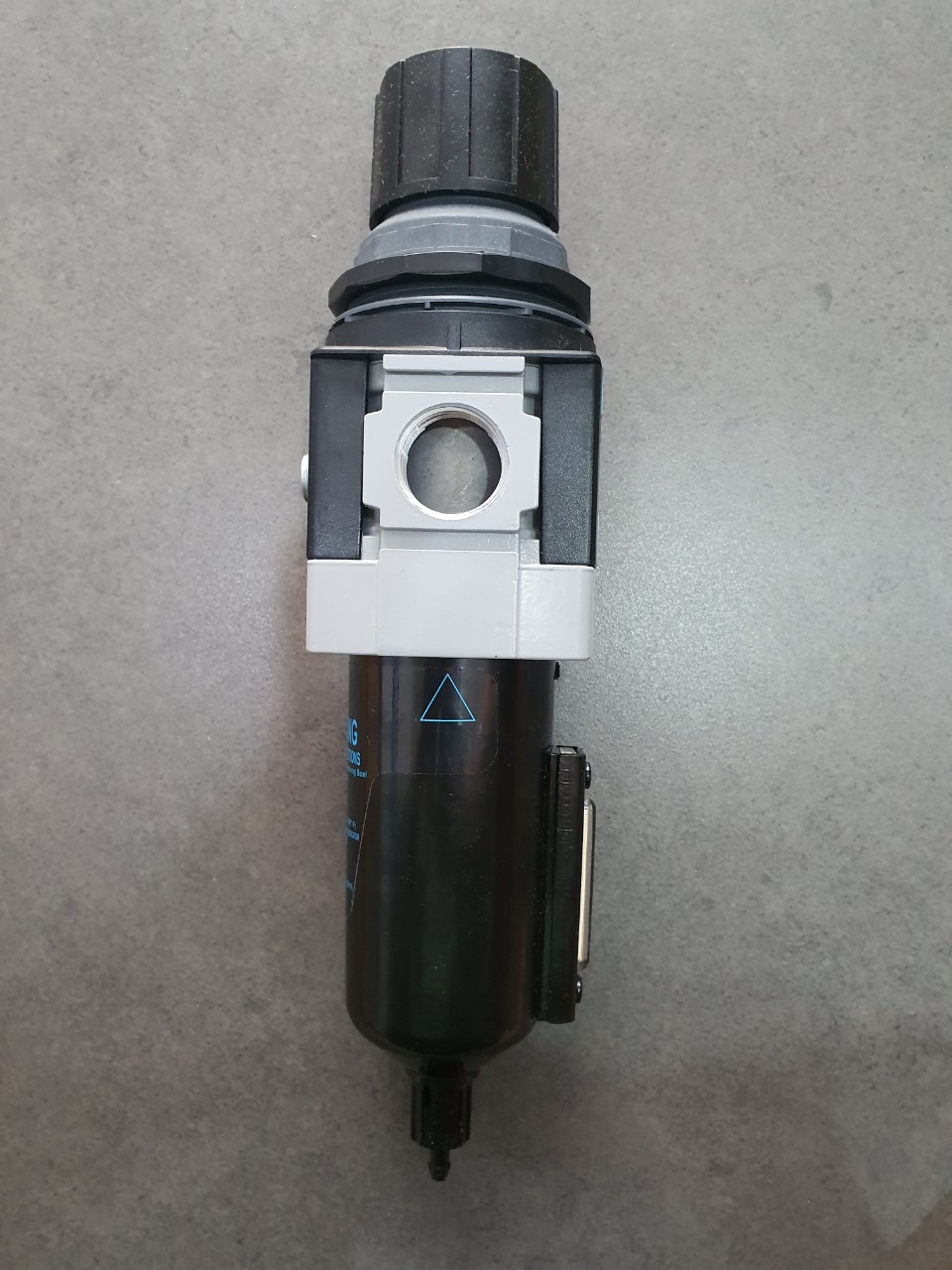

Bộ lọc điều áp Wilkerson B28-06-FLG0B
| Parameter | Value |
|---|
| Model | B28‑06‑FLG0B (Series 28) |
| Port Size | ¾″ NPT inlet & outlet |
| Filtration | 5 µm |
| Max Flow | 235 SCFM (≈100 SCFM @100 psi) |
| Pressure Range | 0–125 PSIG (0–8.6 bar) |
| Max Pressure | 250 PSIG (17 bar) |
| Operating Temp | –13 °F to +150 °F (–25 °C to +66 °C) |
| Bowl Material / Gauge | Aluminum w/ sight gauge |
| Drain Type | Manual |
| Gauge Ports | ¼″ NPT |
| Valve Type | Relieving |
| Seal Material | Nitrile (NBR) |
| Body Material | Aluminum |
| Weight | ~1.87 lb (0.85 kg) |
| Dimensions | ~11¼″ H × 4¼″ W |

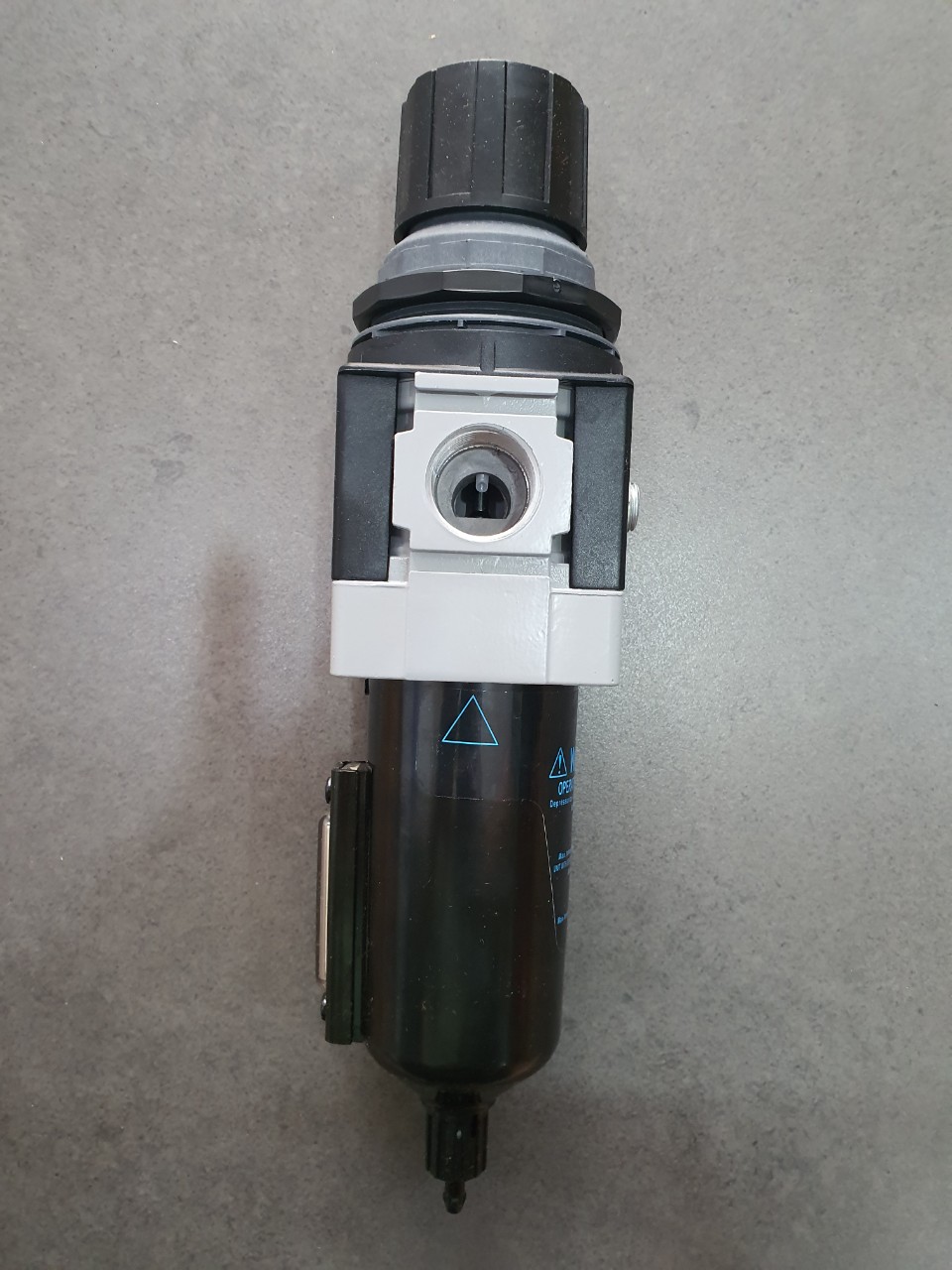

Bộ lọc điều áp Wilkerson B28-06-FLG0B
Element :FRP-96-653
| Parameter | Value |
|---|
| Model | B28‑06‑FLG0B (Series 28) |
| Port Size | ¾″ NPT inlet & outlet |
| Filtration | 5 µm |
| Max Flow | 235 SCFM (≈100 SCFM @100 psi) |
| Pressure Range | 0–125 PSIG (0–8.6 bar) |
| Max Pressure | 250 PSIG (17 bar) |
| Operating Temp | –13 °F to +150 °F (–25 °C to +66 °C) |
| Bowl Material / Gauge | Aluminum w/ sight gauge |
| Drain Type | Manual |
| Gauge Ports | ¼″ NPT |
| Valve Type | Relieving |
| Seal Material | Nitrile (NBR) |
| Body Material | Aluminum |
| Weight | ~1.87 lb (0.85 kg) |
| Dimensions | ~11¼″ H × 4¼″ W |
