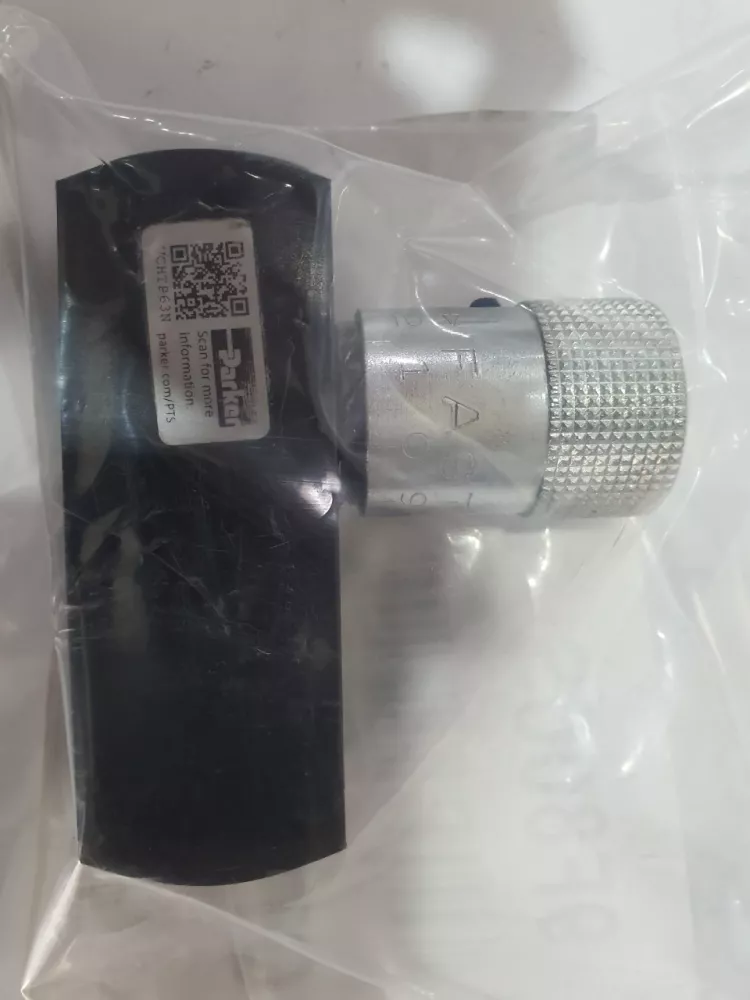

9F800S In-line Flow Control Valve

9F800S In-line Flow Control Valve
9F800S VAN TIET LUU THUY LUC9F800S VAN TIET LUU9F800S PARKER FLOW VALVE9F800S VALVE9F800S PARKER9F800S

9F800S In-line Flow Control Valve


Hãy trở thành người đầu tiên đánh giá sản phẩm này( 0)
9F800S In-line Flow Control Valve – F Series Technical Specifications Connection Type:BSPP Maximum Flow Rate:15 Configuration:InLine Minimum Operating Temperature:-40 Actuation Type:Manual Function:Flow Control Body Material:Steel Connection Size:1/2 Maximum Operating Temperature:+250 Cracking Pressure (psi):5 Knob Option:Standard Poppet Style:Metal …

Liên hệ

  • Mã sản phẩm:
  • 9F800S
  • Đơn vị tính:
  • Cái
  • Tình trạng:

9F800S
In-line Flow Control Valve – F Series

Technical Specifications

  • Connection Type:BSPP
  • Maximum Flow Rate:15
  • Configuration:InLine
  • Minimum Operating Temperature:-40
  • Actuation Type:Manual
  • Function:Flow Control
  • Body Material:Steel
  • Connection Size:1/2
  • Maximum Operating Temperature:+250
  • Cracking Pressure (psi):5
  • Knob Option:Standard
  • Poppet Style:Metal
  • Needle:Standard
  • Maximum Operating Pressure (psi):5000
  • Seal Material:Nitrile
  • Flow Rate:N/A
  • Connection Size:1/2 inch
  • Actuation Type:Manual
  • Function:Flow Control
  • Body Material:Steel
  • Seal Material:Nitrile
  • Maximum Operating Pressure:5000 psi
  • Maximum Flow Rate:15 Gal/min, 57 L/min
  • Maximum Operating Temperature:250 °F, 121 °C
  • Minimum Operating Temperature:-40 °F, -40 °C
  • Configuration:Inline
  • Connection Type:Female - Female
  • Brand:Colorflow
  • Media:Oil
  •
Liên hệ trực tiếp đến chúng tôi theo Hotline/ zalo 0937 664 929  hoặc email phuc.dao@phucthinh-tech.com

9F800S
In-line Flow Control Valve – F Series

Technical Specifications

  • Connection Type:BSPP
  • Maximum Flow Rate:15
  • Configuration:InLine
  • Minimum Operating Temperature:-40
  • Actuation Type:Manual
  • Function:Flow Control
  • Body Material:Steel
  • Connection Size:1/2
  • Maximum Operating Temperature:+250
  • Cracking Pressure (psi):5
  • Knob Option:Standard
  • Poppet Style:Metal
  • Needle:Standard
  • Maximum Operating Pressure (psi):5000
  • Seal Material:Nitrile
  • Flow Rate:N/A
  • Connection Size:1/2 inch
  • Actuation Type:Manual
  • Function:Flow Control
  • Body Material:Steel
  • Seal Material:Nitrile
  • Maximum Operating Pressure:5000 psi
  • Maximum Flow Rate:15 Gal/min, 57 L/min
  • Maximum Operating Temperature:250 °F, 121 °C
  • Minimum Operating Temperature:-40 °F, -40 °C
  • Configuration:Inline
  • Connection Type:Female - Female
  • Brand:Colorflow
  • Media:Oil
