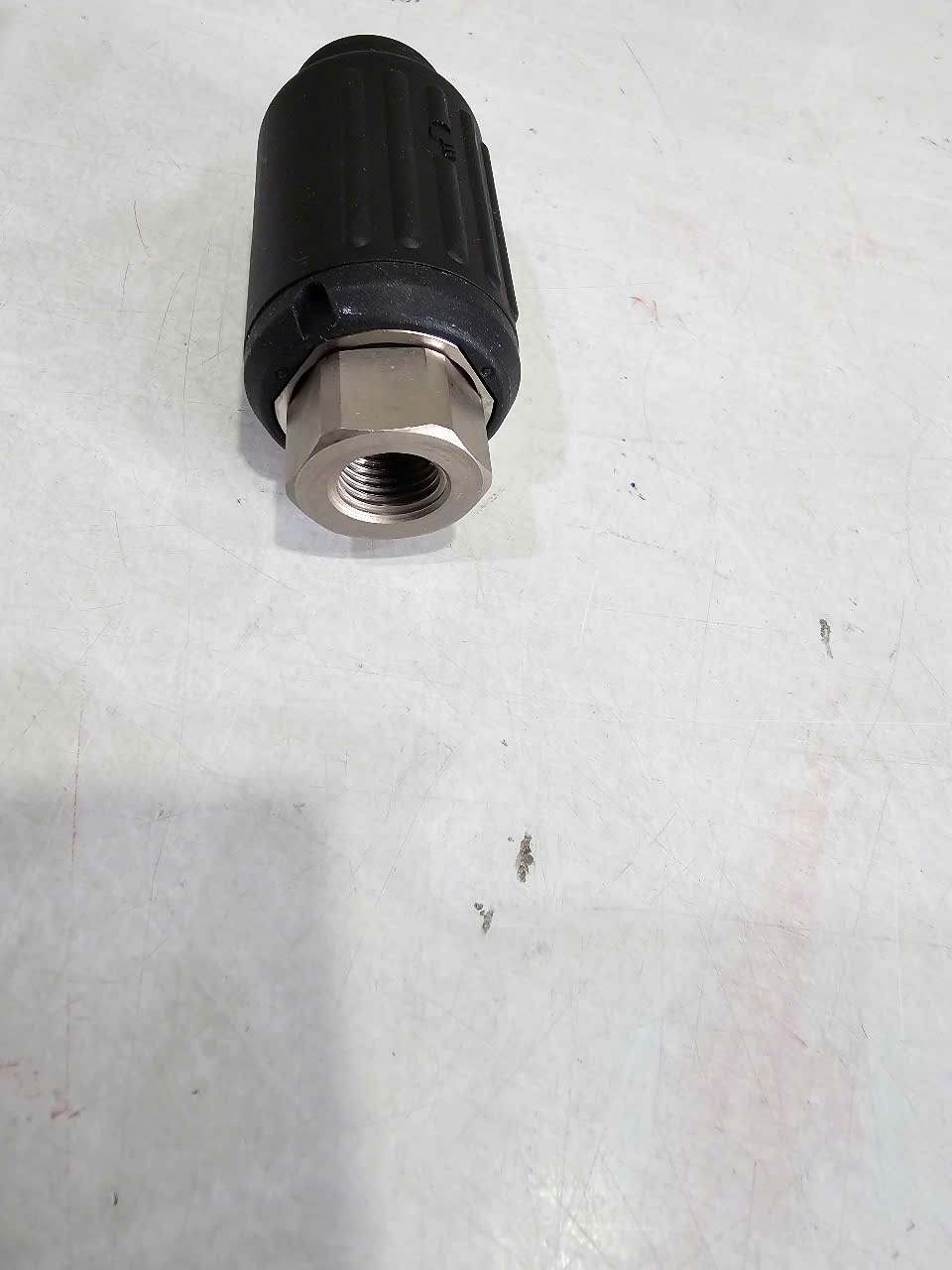

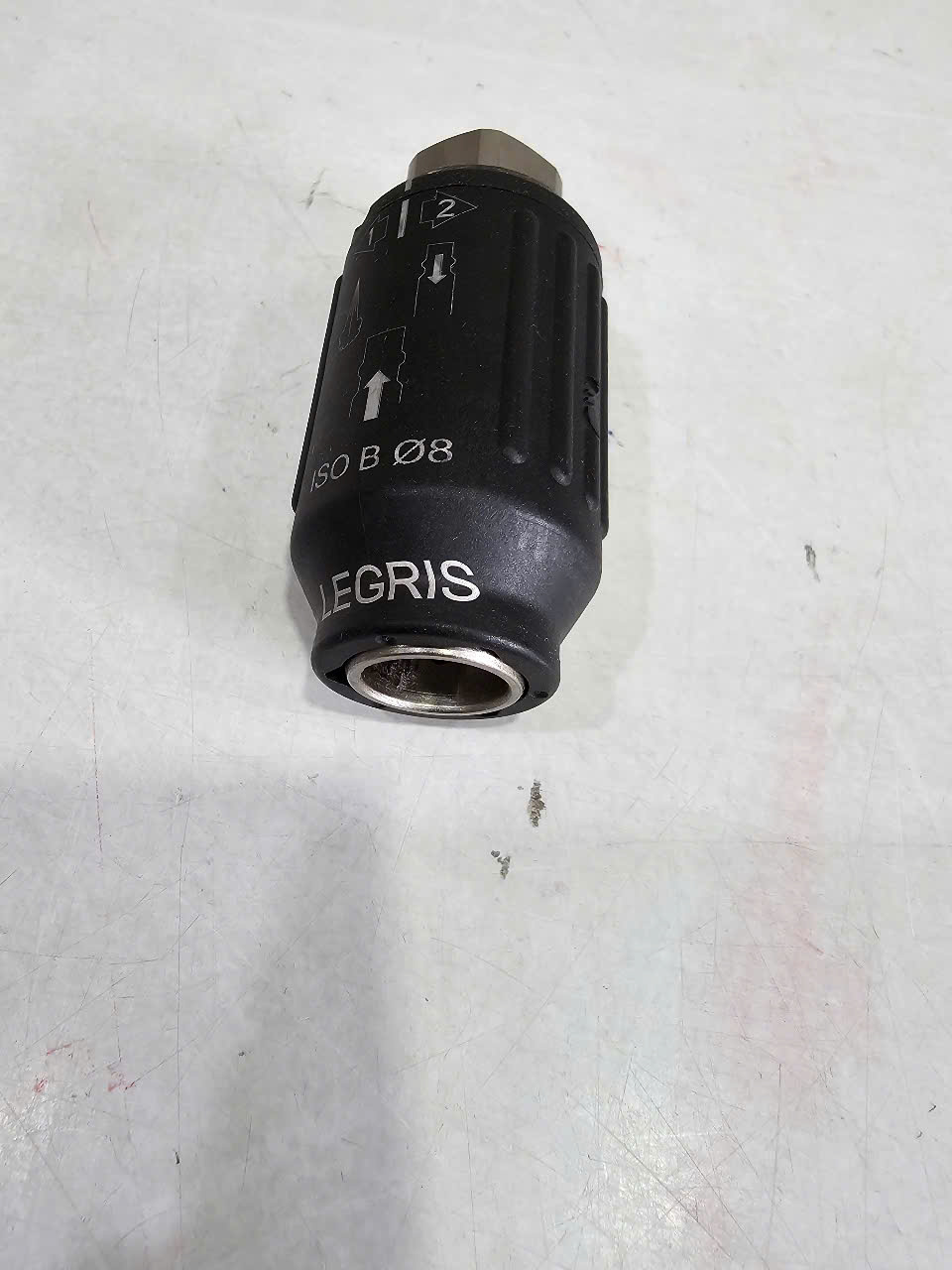

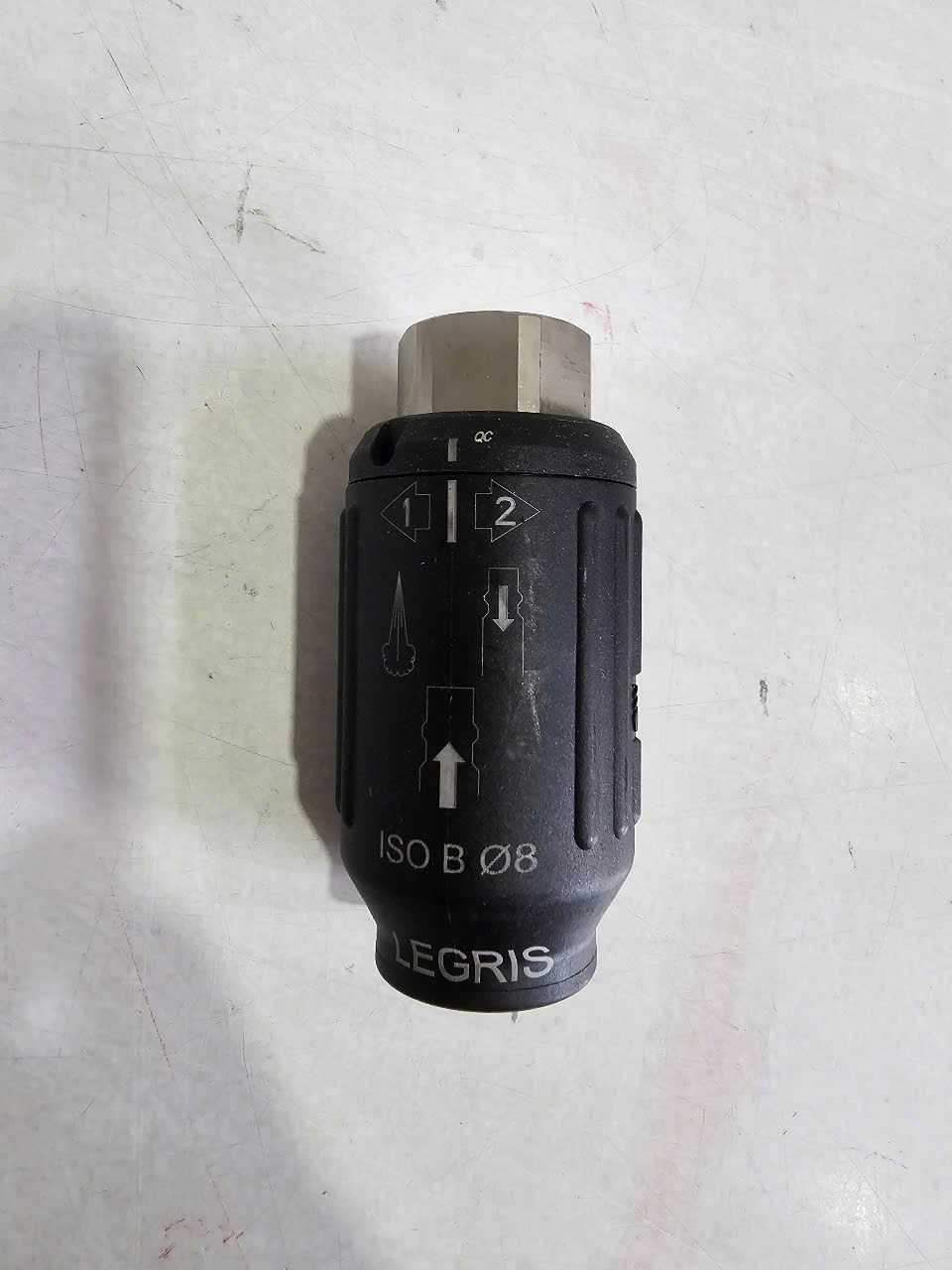

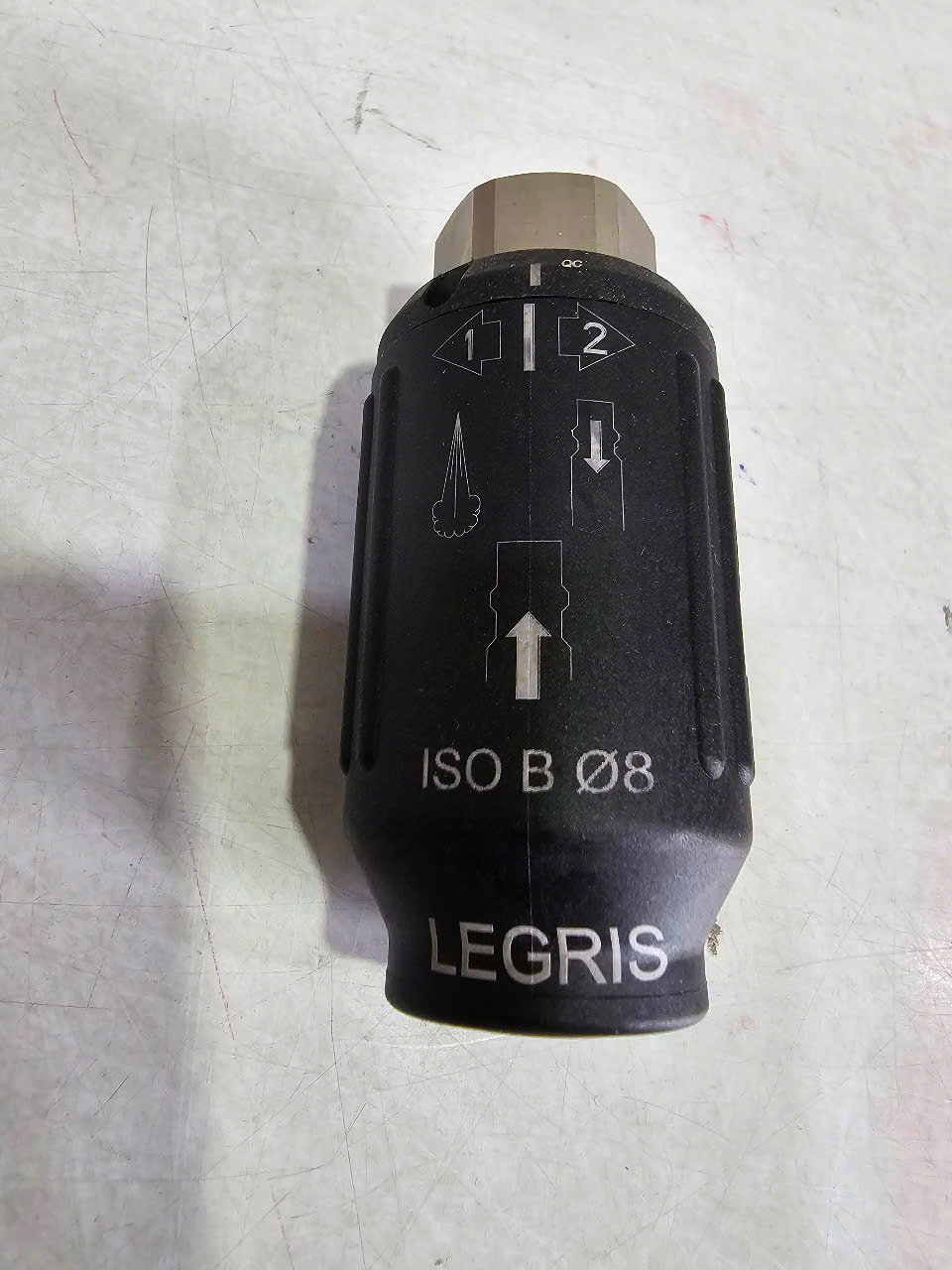

Model: 9414U08 13
Type: Self-venting quick coupler
Thread Size: G 1/4″ (female BSPP)
Nominal Diameter (DN): 8 mm
Connection Type: Female BSPP thread
Standard: ISO B profile
| Specification | Value |
|---|---|
| Operating Pressure | 0 – 16 bar |
| Operating Temperature | –20°C to +60°C |
| Air Flow Rate | ~2,400 L/min (~85 CFM) |
| Body Material | Engineered polymer with brass insert |
| Seal Material | NBR (Nitrile rubber) |
| Locking Balls | Stainless steel |
| Weight | ~127 g |
Self-venting safety: Automatically vents pressure before disconnection
Low coupling force, easy to connect/disconnect
Safety sleeve prevents accidental disconnection
High flow performance with low pressure drop
Suitable for compressed air systems, pneumatic tools, and closed-loop networks
Model: 9414U08 13
Type: Self-venting quick coupler
Thread Size: G 1/4″ (female BSPP)
Nominal Diameter (DN): 8 mm
Connection Type: Female BSPP thread
Standard: ISO B profile
| Specification | Value |
|---|---|
| Operating Pressure | 0 – 16 bar |
| Operating Temperature | –20°C to +60°C |
| Air Flow Rate | ~2,400 L/min (~85 CFM) |
| Body Material | Engineered polymer with brass insert |
| Seal Material | NBR (Nitrile rubber) |
| Locking Balls | Stainless steel |
| Weight | ~127 g |
Self-venting safety: Automatically vents pressure before disconnection
Low coupling force, easy to connect/disconnect
Safety sleeve prevents accidental disconnection
High flow performance with low pressure drop
Suitable for compressed air systems, pneumatic tools, and closed-loop networks
