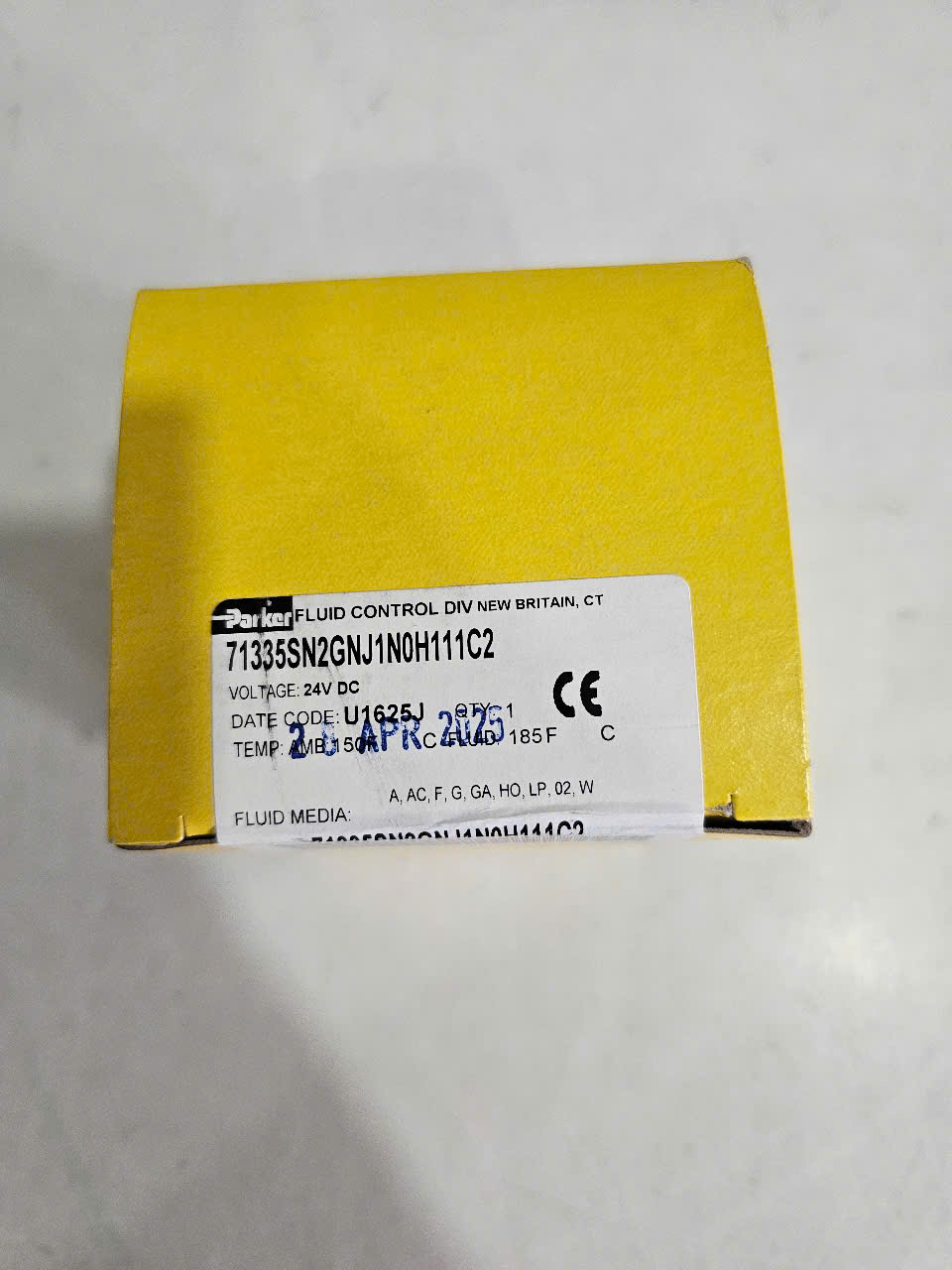

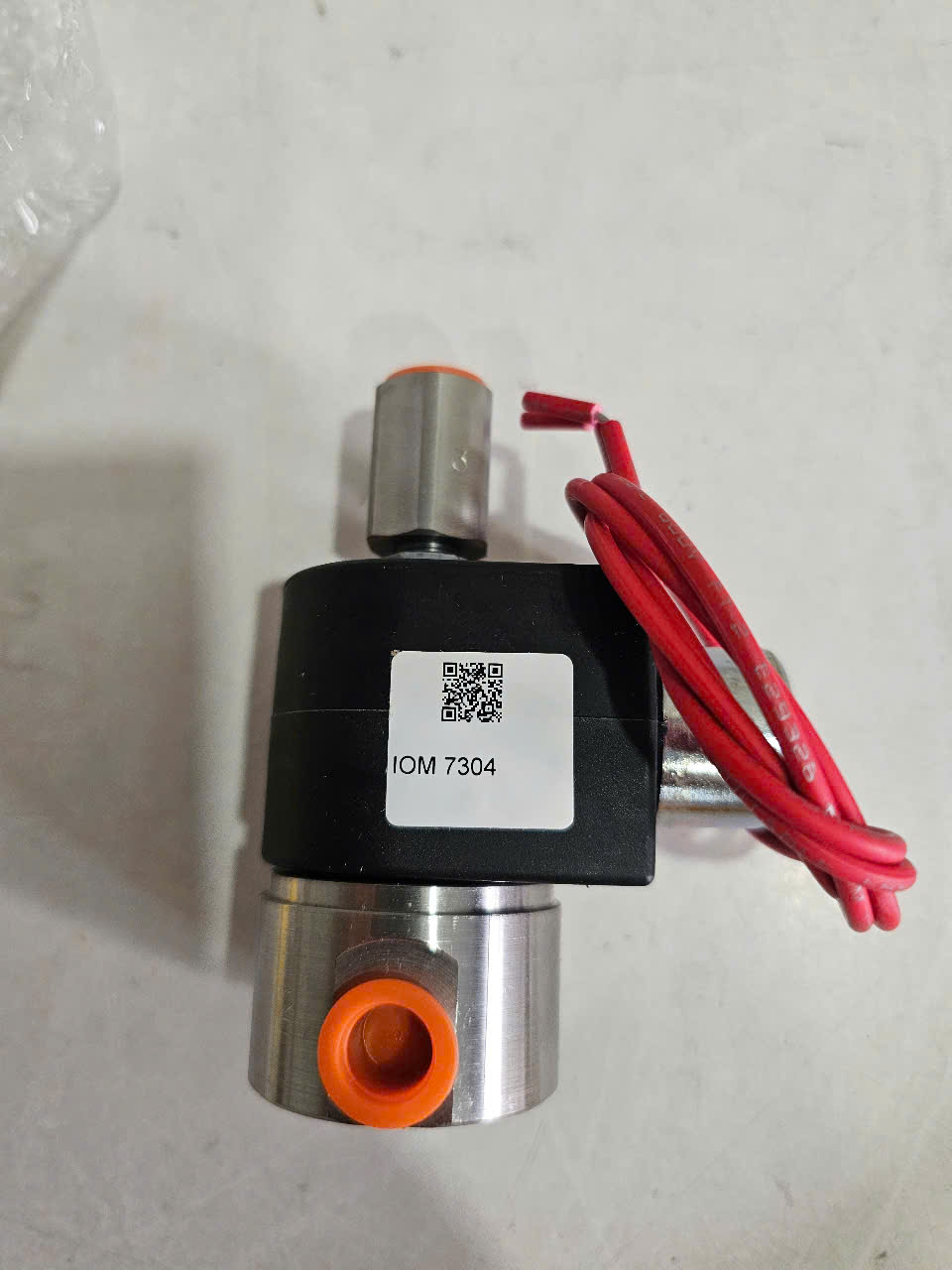

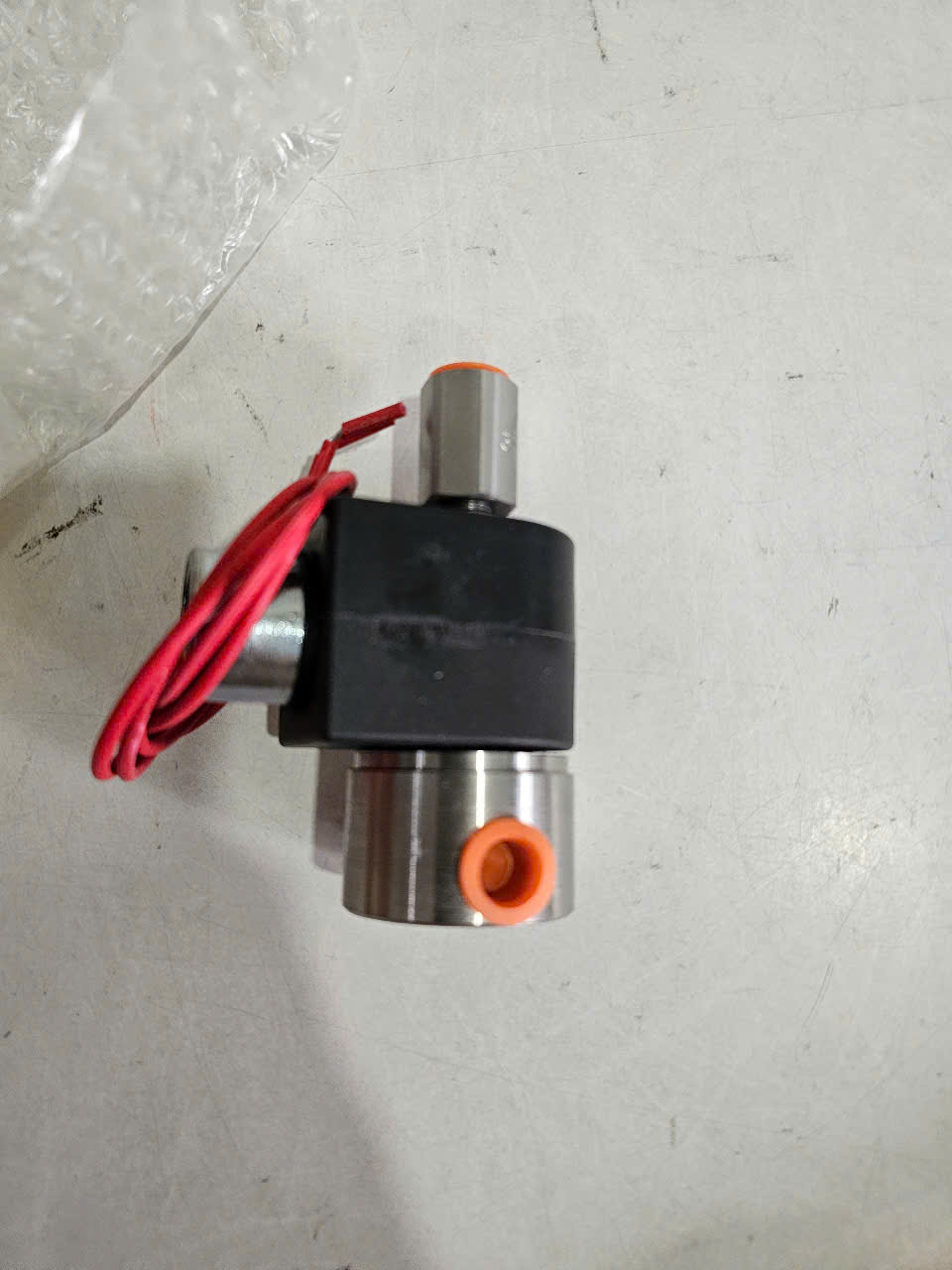

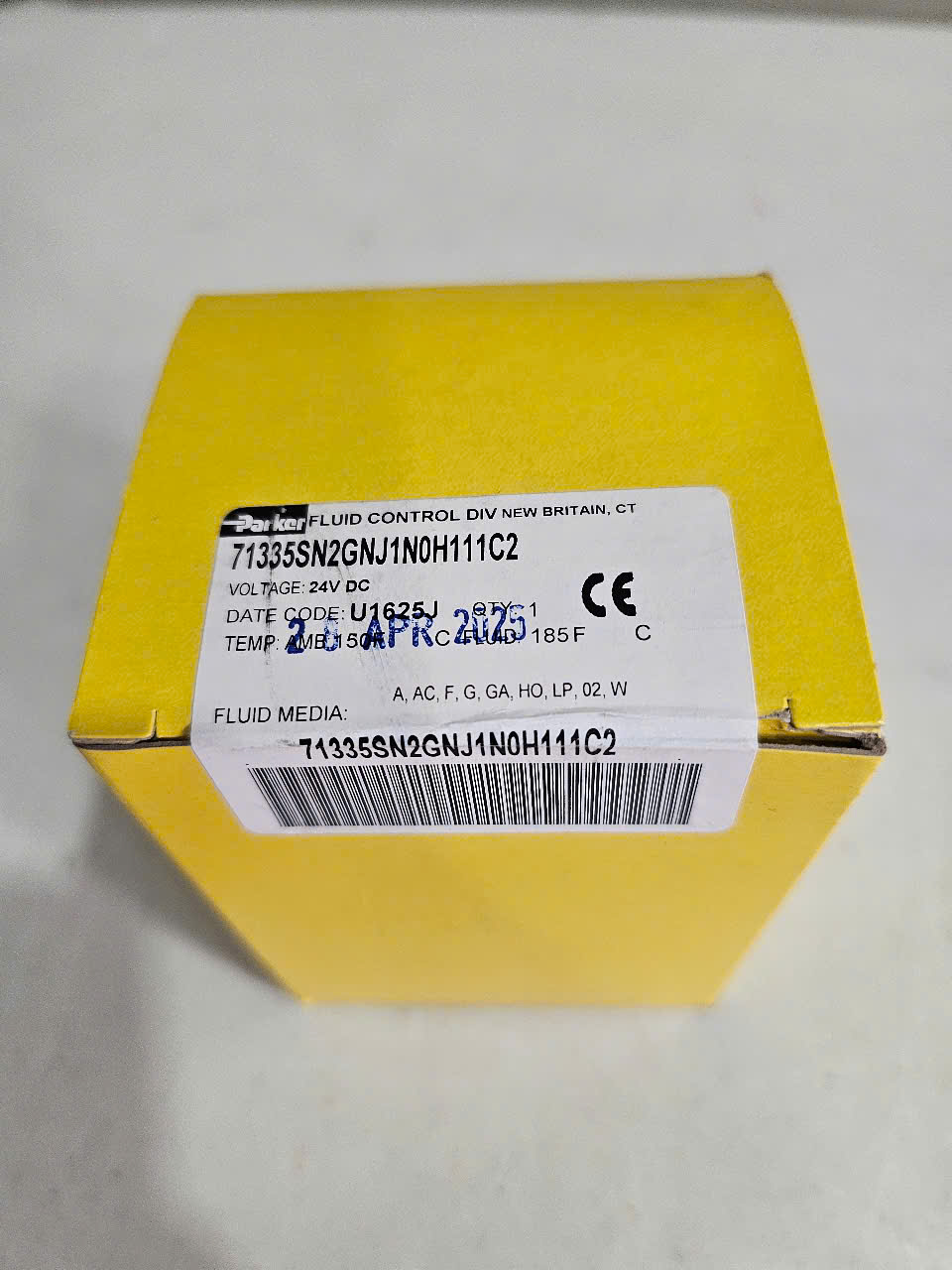

71335SN2GNJ1N0H111C2 24 VDC PARKER LUCIFER
1/4 in. NPT, 24 Volt DC, Universal, 0-115 psi, NBR Seals, Stainless Steel
71335SN2GNJ1N0H111C2 24 VDC PARKER LUCIFER
| SERIES | 7000 Series |
| VALVE TYPE | 3-Way |
| FUNCTION | Multipurpose |
| PORT SIZE | 1/4 inch |
| VOLTAGE | 24 VDC |
| BODY MATERIAL | 430F Stainless |
| SEAL MATERIAL | NBR |
| ORIFICE MAIN (INCH) | 1/16 |
| FLOW FACTOR MAIN (CV) | 0.095 |
| POWER (WATTS) | 10 Watt (DC) |
| COIL TYPE | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 |
| MAXIMUM PRESSURE DIFFERENTIAL (PSI) | 115 psi (DC) |
| MECHANICAL OPTION | Exhaust Adapter Nut |
| NUMBER OF PORTS | 3 |
| ACTUATION | Direct Acting |
| MEDIA | General Purpose for Air, Liquids and Gases |
| PORT TYPE | NPT |
| ORIFICE EXHAUST (INCH) | 1/16 |
| FLOW FACTOR EXHAUST (CV) | 0.095 |
| ORIFICE 2 SIZE (INCH) | n/a |
| FLOW FACTOR 2 (CV) | n/a |
| MINIMUM PRESSURE DIFFERENTIAL (PSI) | 0 |
| MINIMUM FLUID TEMPERATURE (F) | 0 |
| MAXIMUM FLUID TEMPERATURE (F) | 185 |
| COIL PROTECTION MODE | NEMA 7, 9    |
71335SN2GNJ1N0H111C2 24 VDC PARKER LUCIFER
1/4 in. NPT, 24 Volt DC, Universal, 0-115 psi, NBR Seals, Stainless Steel
