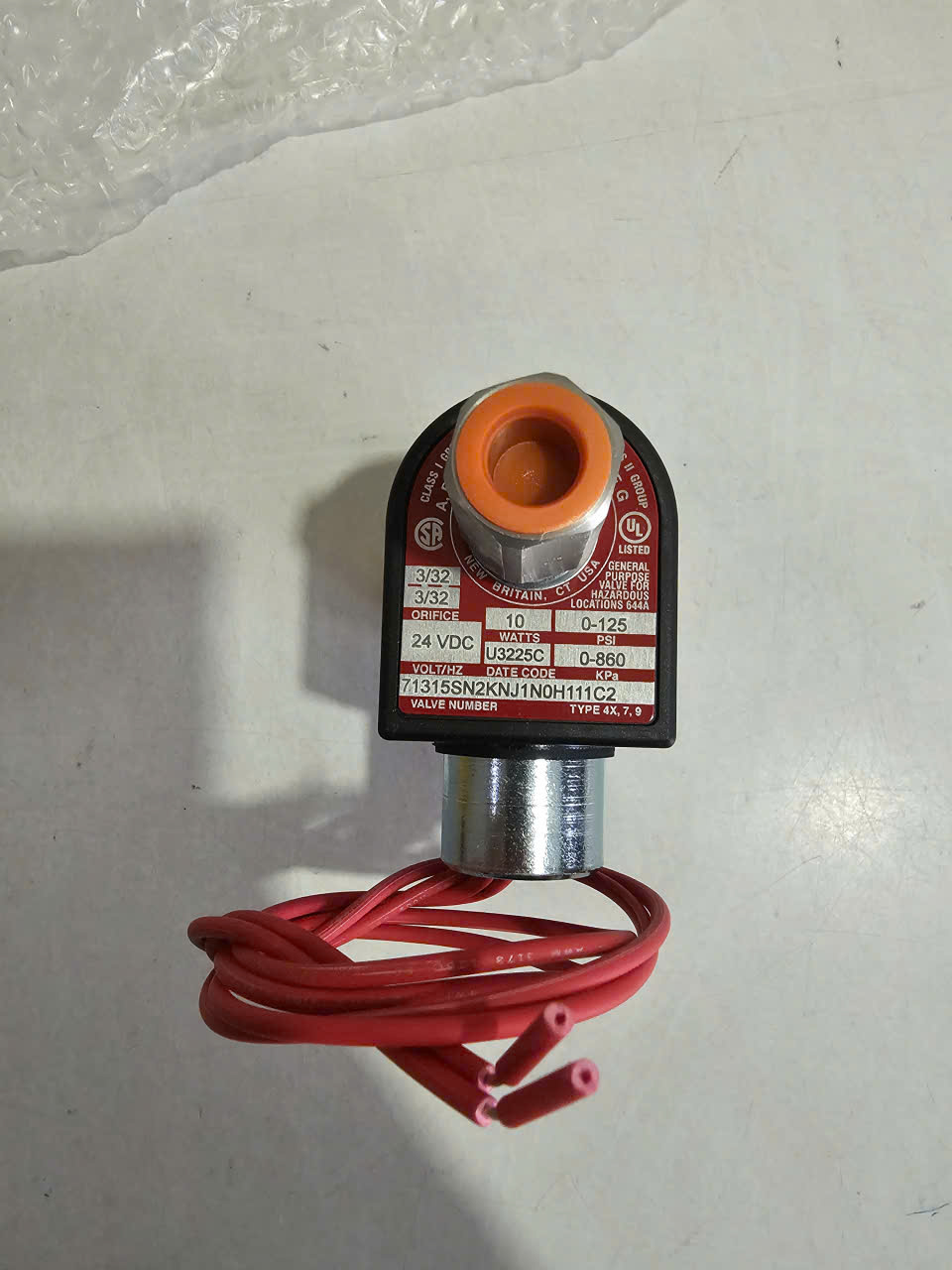

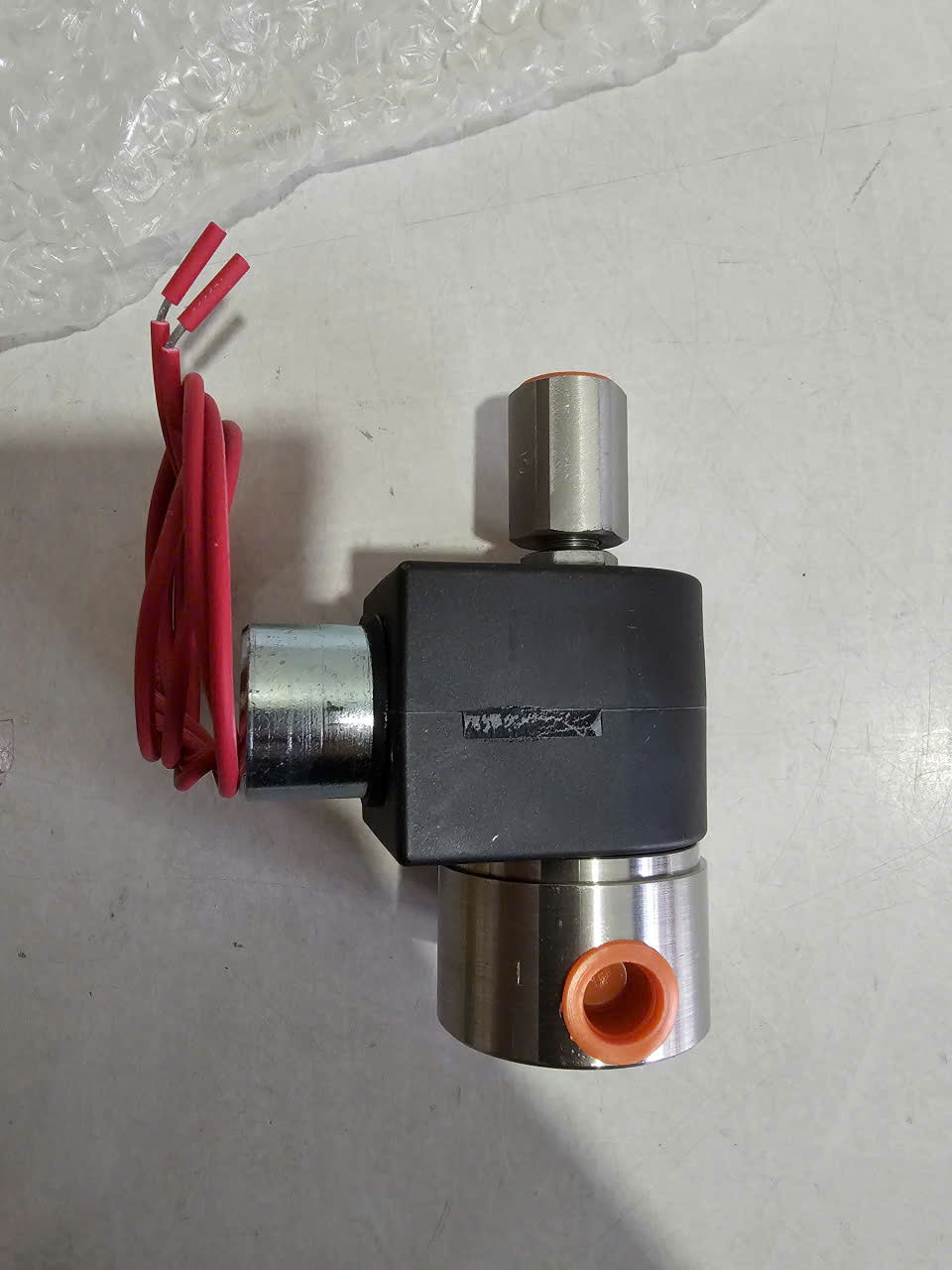

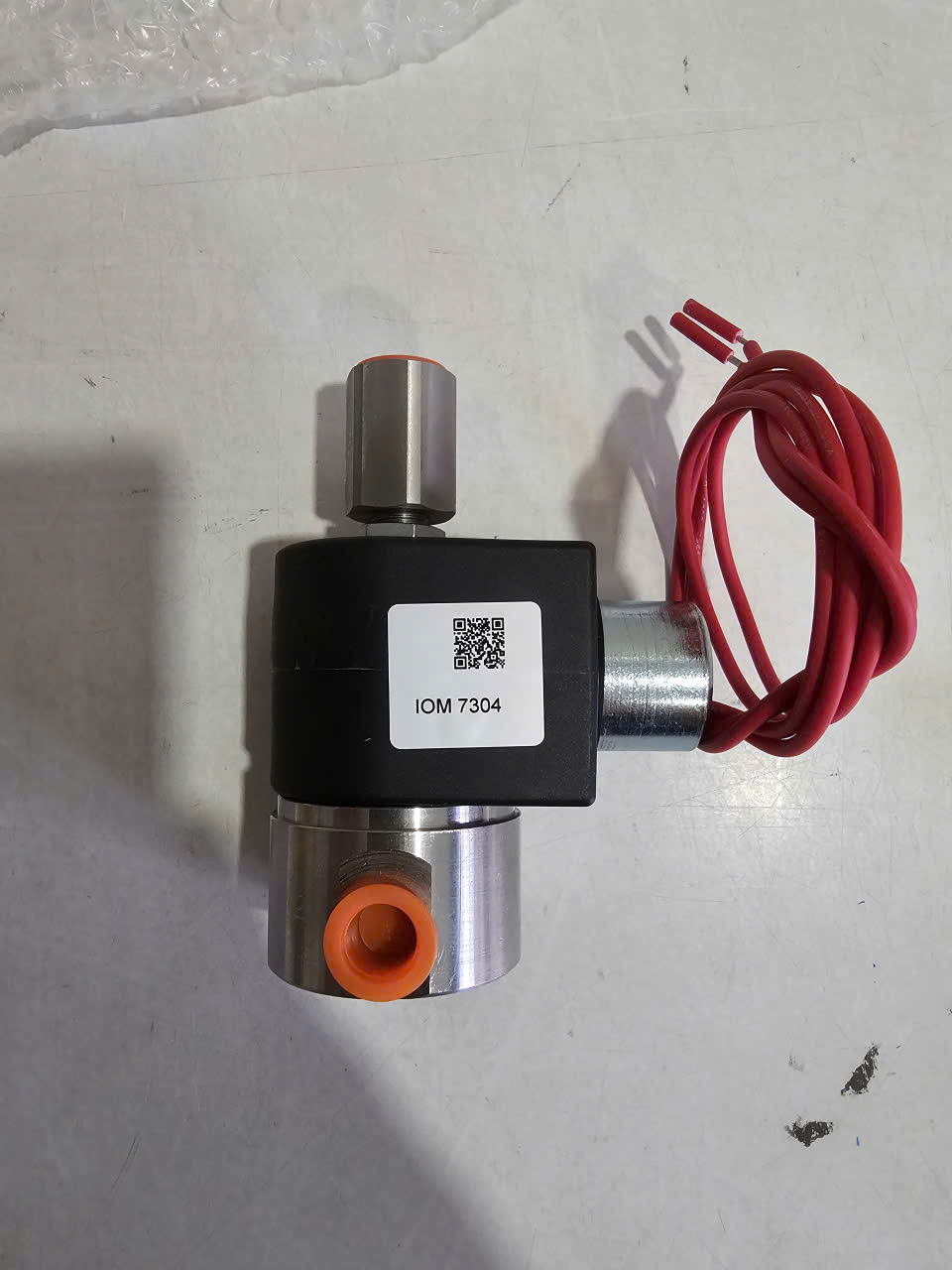

71315SN2KNJ1N0H111C2 parker skinner 24VDC solenoid valve

71315SN2KNJ1N0H111C2 parker skinner 24VDC solenoid valve

71315SN2KNJ1N0H111C2 parker skinner 24VDC solenoid valve


Hãy trở thành người đầu tiên đánh giá sản phẩm này ( 0)
71315SN2KNJ1N0H111C2     Product Series: 7000 Series Mechanical Option: Exhaust Adapter Nut Valve Type: 3-Way Function: Normally Closed (NC) Port Size: 1/4 inch Coil Type: 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 Input Voltage: 24.0 VDC Body Material: Stainless Steel Orifice Main (inch): [...]

Liên hệ

  • Mã sản phẩm:
  • 71315SN2KNJ1N0H111C2
  • Đơn vị tính:
  • Cái
  • Tình trạng:

71315SN2KNJ1N0H111C2





Product Series: 7000 Series
Mechanical Option: Exhaust Adapter Nut
Valve Type: 3-Way
Function: Normally Closed (NC)
Port Size: 1/4 inch
Coil Type: 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
Input Voltage: 24.0 VDC
Body Material: Stainless Steel
Orifice Main (inch): 3/32
Seal Material: NBR
Main Orifice Size: 3/32 inch
Main Flow Coefficient: 0.17 Cv
Power Consumption: 10 W (DC)
Coil Type: 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
Flow Factor Main (Cv): 0.17
Maximum Pressure Differential: 125 psi (DC)
Additional Options: Exhaust Adapter Nut
Number of Ports: 3
Actuation Type: Direct Acting
Media: General Purpose for Air, Liquids and Gases
Port Type: NPT
Exhaust Orifice Size: 3/32 inch
Exhaust Flow Coefficient: 0.17 Cv
Maximum Pressure Differential (psi): 125 psi (DC)
Orifice 2 Size: n/a
Flow Coefficient 2: n/a
Minimum Pressure Differential: 0 psi
Minimum Fluid Temperature: 0 °F
Maximum Fluid Temperature: 185 °F
Coil Specifications Met: NEMA 7, NEMA 9
Voltage (V): 24 VDC
Power (Watts): 10 Watt (DC)
Seal Material: NBR



Products Voltage (V) Seal Material Orifice Main (inch) Flow Factor Main (Cv) Power (Watts) Coil Type Maximum Pressure Differential (psi) Mechanical Option
71315SN2EN00N0C111C1 12 VDC NBR 3/64 0.062 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 250 psi (DC) No Option
71315SN2EN00N0C111C2 24 VDC NBR 3/64 0.062 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 250 psi (DC) No Option
71315SN2EN00N0C111P3 110/50-120/60 NBR 3/64 0.062 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 250 psi (AC) No Option
71315SN2EN00N0C111Q3 220/50-240/60 NBR 3/64 0.062 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 250 psi (AC) No Option
71315SN2EN00N0C222C1 12 VDC NBR 3/64 0.062 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 250 psi (DC) No Option
71315SN2EN00N0C222C2 24 VDC NBR 3/64 0.062 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 250 psi (DC) No Option
71315SN2EN00N0C222P3 110/50-120/60 NBR 3/64 0.062 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 250 psi (AC) No Option
71315SN2EN00N0C222Q3 220/50-240/60 NBR 3/64 0.062 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 250 psi (AC) No Option
71315SN2EN00N0D100C1 12 VDC NBR 3/64 0.062 10 Watt (DC) DIN Form A, Class F 250 psi (DC) No Option
71315SN2EN00N0D100C2 24 VDC NBR 3/64 0.062 10 Watt (DC) DIN Form A, Class F 250 psi (DC) No Option
71315SN2EN00N0D100P3 110/50-120/60 NBR 3/64 0.062 10 Watt (AC) DIN Form A, Class F 250 psi (AC) No Option
71315SN2EN00N0D100Q3 220/50-240/60 NBR 3/64 0.062 10 Watt (AC) DIN Form A, Class F 250 psi (AC) No Option
71315SN2EN00N0D200C1 12 VDC NBR 3/64 0.062 10 Watt (DC) DIN Form A, Class H 250 psi (DC) No Option
71315SN2EN00N0D200P3 110/50-120/60 NBR 3/64 0.062 10 Watt (AC) DIN Form A, Class H 250 psi (AC) No Option
71315SN2EN00N0H111C1 12 VDC NBR 3/64 0.062 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 250 psi (DC) No Option
71315SN2EN00N0H111C2 24 VDC NBR 3/64 0.062 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 250 psi (DC) No Option
71315SN2EN00N0H111P3 110/50-120/60 NBR 3/64 0.062 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 250 psi (AC) No Option
71315SN2EN00N0H111Q3 220/50-240/60 NBR 3/64 0.062 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 250 psi (AC) No Option
71315SN2EN00N0H222C2 24 VDC NBR 3/64 0.062 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 250 psi (DC) No Option
71315SN2EN00N0H222P3 110/50-120/60 NBR 3/64 0.062 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 250 psi (AC) No Option
71315SN2EN00N0H222Q3 220/50-240/60 NBR 3/64 0.062 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 250 psi (AC) No Option
71315SN2EN00N0T100P3 110/50-120/60 NBR 3/64 0.062 10 Watt (AC) 1/4 " Tab Terminal, Class F 250 psi (AC) No Option
71315SN2ENJ1N0C111C1 12 VDC NBR 3/64 0.062 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 250 psi (DC) Exhaust Adapter Nut
71315SN2ENJ1N0C111C2 24 VDC NBR 3/64 0.062 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 250 psi (DC) Exhaust Adapter Nut
71315SN2ENJ1N0C111P3 110/50-120/60 NBR 3/64 0.062 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 250 psi (AC) Exhaust Adapter Nut
71315SN2ENJ1N0C111Q3 220/50-240/60 NBR 3/64 0.062 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 250 psi (AC) Exhaust Adapter Nut
71315SN2ENJ1N0C222C1 12 VDC NBR 3/64 0.062 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 250 psi (DC) Exhaust Adapter Nut
71315SN2ENJ1N0C222C2 24 VDC NBR 3/64 0.062 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 250 psi (DC) Exhaust Adapter Nut
71315SN2ENJ1N0C222P3 110/50-120/60 NBR 3/64 0.062 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 250 psi (AC) Exhaust Adapter Nut
71315SN2ENJ1N0C222Q3 220/50-240/60 NBR 3/64 0.062 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 250 psi (AC) Exhaust Adapter Nut
71315SN2ENJ1N0D100C1 12 VDC NBR 3/64 0.062 10 Watt (DC) DIN Form A, Class F 250 psi (DC) Exhaust Adapter Nut
71315SN2ENJ1N0D100C2 24 VDC NBR 3/64 0.062 10 Watt (DC) DIN Form A, Class F 250 psi (DC) Exhaust Adapter Nut
71315SN2ENJ1N0D100P3 110/50-120/60 NBR 3/64 0.062 10 Watt (AC) DIN Form A, Class F 250 psi (AC) Exhaust Adapter Nut
71315SN2ENJ1N0D100Q3 220/50-240/60 NBR 3/64 0.062 10 Watt (AC) DIN Form A, Class F 250 psi (AC) Exhaust Adapter Nut
71315SN2ENJ1N0D200C1 12 VDC NBR 3/64 0.062 10 Watt (DC) DIN Form A, Class H 250 psi (DC) Exhaust Adapter Nut
71315SN2ENJ1N0D200P3 110/50-120/60 NBR 3/64 0.062 10 Watt (AC) DIN Form A, Class H 250 psi (AC) Exhaust Adapter Nut
71315SN2ENJ1N0H111C1 12 VDC NBR 3/64 0.062 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 250 psi (DC) Exhaust Adapter Nut
71315SN2ENJ1N0H111C2 24 VDC NBR 3/64 0.062 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 250 psi (DC) Exhaust Adapter Nut
71315SN2ENJ1N0H111P3 110/50-120/60 NBR 3/64 0.062 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 250 psi (AC) Exhaust Adapter Nut
71315SN2ENJ1N0H111Q3 220/50-240/60 NBR 3/64 0.062 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 250 psi (AC) Exhaust Adapter Nut
71315SN2ENJ1N0H222C2 24 VDC NBR 3/64 0.062 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 250 psi (DC) Exhaust Adapter Nut
71315SN2ENJ1N0H222P3 110/50-120/60 NBR 3/64 0.062 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 250 psi (AC) Exhaust Adapter Nut
71315SN2ENJ1N0H222Q3 220/50-240/60 NBR 3/64 0.062 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 250 psi (AC) Exhaust Adapter Nut
71315SN2ENJ1N0T100P3 110/50-120/60 NBR 3/64 0.062 10 Watt (AC) 1/4 " Tab Terminal, Class F 250 psi (AC) Exhaust Adapter Nut
71315SN2GN00N0C111C1 12 VDC NBR 1/16 0.11 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 200 psi (DC) No Option
71315SN2GN00N0C111C2 24 VDC NBR 1/16 0.11 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 200 psi (DC) No Option
71315SN2GN00N0C111P3 110/50-120/60 NBR 1/16 0.11 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 200 psi (AC) No Option
71315SN2GN00N0C111Q3 220/50-240/60 NBR 1/16 0.11 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 200 psi (AC) No Option
71315SN2GN00N0C222C1 12 VDC NBR 1/16 0.11 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 200 psi (DC) No Option
71315SN2GN00N0C222C2 24 VDC NBR 1/16 0.11 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 200 psi (DC) No Option
71315SN2GN00N0C222P3 110/50-120/60 NBR 1/16 0.11 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 200 psi (AC) No Option
71315SN2GN00N0C222Q3 220/50-240/60 NBR 1/16 0.11 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 200 psi (AC) No Option
71315SN2GN00N0D100C1 12 VDC NBR 1/16 0.11 10 Watt (DC) DIN Form A, Class F 200 psi (DC) No Option
71315SN2GN00N0D100C2 24 VDC NBR 1/16 0.11 10 Watt (DC) DIN Form A, Class F 200 psi (DC) No Option
71315SN2GN00N0D100P3 110/50-120/60 NBR 1/16 0.11 10 Watt (AC) DIN Form A, Class F 200 psi (AC) No Option
71315SN2GN00N0D100Q3 220/50-240/60 NBR 1/16 0.11 10 Watt (AC) DIN Form A, Class F 200 psi (AC) No Option
71315SN2GN00N0D200C1 12 VDC NBR 1/16 0.11 10 Watt (DC) DIN Form A, Class H 200 psi (DC) No Option
71315SN2GN00N0D200P3 110/50-120/60 NBR 1/16 0.11 10 Watt (AC) DIN Form A, Class H 200 psi (AC) No Option
71315SN2GN00N0H111C1 12 VDC NBR 1/16 0.11 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 200 psi (DC) No Option
71315SN2GN00N0H111C2 24 VDC NBR 1/16 0.11 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 200 psi (DC) No Option
71315SN2GN00N0H111P3 110/50-120/60 NBR 1/16 0.11 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 200 psi (AC) No Option
71315SN2GN00N0H111Q3 220/50-240/60 NBR 1/16 0.11 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 200 psi (AC) No Option
71315SN2GN00N0H222C2 24 VDC NBR 1/16 0.11 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 200 psi (DC) No Option
71315SN2GN00N0H222P3 110/50-120/60 NBR 1/16 0.11 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 200 psi (AC) No Option
71315SN2GN00N0H222Q3 220/50-240/60 NBR 1/16 0.11 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 200 psi (AC) No Option
71315SN2GN00N0T100P3 110/50-120/60 NBR 1/16 0.11 10 Watt (AC) 1/4 " Tab Terminal, Class F 200 psi (AC) No Option
71315SN2GNJ1N0C111C1 12 VDC NBR 1/16 0.11 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 200 psi (DC) Exhaust Adapter Nut
71315SN2GNJ1N0C111C2 24 VDC NBR 1/16 0.11 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 200 psi (DC) Exhaust Adapter Nut
71315SN2GNJ1N0C111P3 110/50-120/60 NBR 1/16 0.11 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 200 psi (AC) Exhaust Adapter Nut
71315SN2GNJ1N0C111Q3 220/50-240/60 NBR 1/16 0.11 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 200 psi (AC) Exhaust Adapter Nut
71315SN2GNJ1N0C222C1 12 VDC NBR 1/16 0.11 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 200 psi (DC) Exhaust Adapter Nut
71315SN2GNJ1N0C222C2 24 VDC NBR 1/16 0.11 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 200 psi (DC) Exhaust Adapter Nut
71315SN2GNJ1N0C222P3 110/50-120/60 NBR 1/16 0.11 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 200 psi (AC) Exhaust Adapter Nut
71315SN2GNJ1N0C222Q3 220/50-240/60 NBR 1/16 0.11 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 200 psi (AC) Exhaust Adapter Nut
71315SN2GNJ1N0D100C1 12 VDC NBR 1/16 0.11 10 Watt (DC) DIN Form A, Class F 200 psi (DC) Exhaust Adapter Nut
71315SN2GNJ1N0D100C2 24 VDC NBR 1/16 0.11 10 Watt (DC) DIN Form A, Class F 200 psi (DC) Exhaust Adapter Nut
71315SN2GNJ1N0D100P3 110/50-120/60 NBR 1/16 0.11 10 Watt (AC) DIN Form A, Class F 200 psi (AC) Exhaust Adapter Nut
71315SN2GNJ1N0D100Q3 220/50-240/60 NBR 1/16 0.11 10 Watt (AC) DIN Form A, Class F 200 psi (AC) Exhaust Adapter Nut
71315SN2GNJ1N0D200C1 12 VDC NBR 1/16 0.11 10 Watt (DC) DIN Form A, Class H 200 psi (DC) Exhaust Adapter Nut
71315SN2GNJ1N0D200P3 110/50-120/60 NBR 1/16 0.11 10 Watt (AC) DIN Form A, Class H 200 psi (AC) Exhaust Adapter Nut
71315SN2GNJ1N0H111C1 12 VDC NBR 1/16 0.11 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 200 psi (DC) Exhaust Adapter Nut
71315SN2GNJ1N0H111C2 24 VDC NBR 1/16 0.11 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 200 psi (DC) Exhaust Adapter Nut
71315SN2GNJ1N0H111P3 110/50-120/60 NBR 1/16 0.11 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 200 psi (AC) Exhaust Adapter Nut
71315SN2GNJ1N0H111Q3 220/50-240/60 NBR 1/16 0.11 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 200 psi (AC) Exhaust Adapter Nut
71315SN2GNJ1N0H222C2 24 VDC NBR 1/16 0.11 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 200 psi (DC) Exhaust Adapter Nut
71315SN2GNJ1N0H222P3 110/50-120/60 NBR 1/16 0.11 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 200 psi (AC) Exhaust Adapter Nut
71315SN2GNJ1N0H222Q3 220/50-240/60 NBR 1/16 0.11 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 200 psi (AC) Exhaust Adapter Nut
71315SN2GNJ1N0T100P3 110/50-120/60 NBR 1/16 0.11 10 Watt (AC) 1/4 " Tab Terminal, Class F 200 psi (AC) Exhaust Adapter Nut
71315SN2GVJ1N0C111C1 12 VDC FKM 1/16 0.11 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 200 psi (DC) Exhaust Adapter Nut
71315SN2GVJ1N0C111C2 24 VDC FKM 1/16 0.11 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 200 psi (DC) Exhaust Adapter Nut
71315SN2GVJ1N0C111P3 110/50-120/60 FKM 1/16 0.11 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 200 psi (AC) Exhaust Adapter Nut
71315SN2GVJ1N0C111Q3 220/50-240/60 FKM 1/16 0.11 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X 200 psi (AC) Exhaust Adapter Nut
71315SN2GVJ1N0C222C1 12 VDC FKM 1/16 0.11 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 200 psi (DC) Exhaust Adapter Nut
71315SN2GVJ1N0C222C2 24 VDC FKM 1/16 0.11 10 Watt (DC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 200 psi (DC) Exhaust Adapter Nut
71315SN2GVJ1N0C222P3 110/50-120/60 FKM 1/16 0.11 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 200 psi (AC) Exhaust Adapter Nut
71315SN2GVJ1N0C222Q3 220/50-240/60 FKM 1/16 0.11 10 Watt (AC) 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X 200 psi (AC) Exhaust Adapter Nut
71315SN2GVJ1N0D100C1 12 VDC FKM 1/16 0.11 10 Watt (DC) DIN Form A, Class F 200 psi (DC) Exhaust Adapter Nut
71315SN2GVJ1N0D100C2 24 VDC FKM 1/16 0.11 10 Watt (DC) DIN Form A, Class F 200 psi (DC) Exhaust Adapter Nut
71315SN2GVJ1N0D100P3 110/50-120/60 FKM 1/16 0.11 10 Watt (AC) DIN Form A, Class F 200 psi (AC) Exhaust Adapter Nut
71315SN2GVJ1N0D100Q3 220/50-240/60 FKM 1/16 0.11 10 Watt (AC) DIN Form A, Class F71315SN2KNJ1N0H111C271315SN2KNJ1N0H111C271315SN2KNJ1N0H111C271315SN2KNJ1N0H111C2
Liên hệ trực tiếp đến chúng tôi theo Hotline/ zalo 0937 664 929  hoặc email phuc.dao@phucthinh-tech.com

71315SN2KNJ1N0H111C2





Product Series: 7000 Series
Mechanical Option: Exhaust Adapter Nut
Valve Type: 3-Way
Function: Normally Closed (NC)
Port Size: 1/4 inch
Coil Type: 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
Input Voltage: 24.0 VDC
Body Material: Stainless Steel
Orifice Main (inch): 3/32
Seal Material: NBR
Main Orifice Size: 3/32 inch
Main Flow Coefficient: 0.17 Cv
Power Consumption: 10 W (DC)
Coil Type: 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
Flow Factor Main (Cv): 0.17
Maximum Pressure Differential: 125 psi (DC)
Additional Options: Exhaust Adapter Nut
Number of Ports: 3
Actuation Type: Direct Acting
Media: General Purpose for Air, Liquids and Gases
Port Type: NPT
Exhaust Orifice Size: 3/32 inch
Exhaust Flow Coefficient: 0.17 Cv
Maximum Pressure Differential (psi): 125 psi (DC)
Orifice 2 Size: n/a
Flow Coefficient 2: n/a
Minimum Pressure Differential: 0 psi
Minimum Fluid Temperature: 0 °F
Maximum Fluid Temperature: 185 °F
Coil Specifications Met: NEMA 7, NEMA 9
Voltage (V): 24 VDC
Power (Watts): 10 Watt (DC)
Seal Material: NBR
Tags: 71315SN2KNJ1N0H111C2
