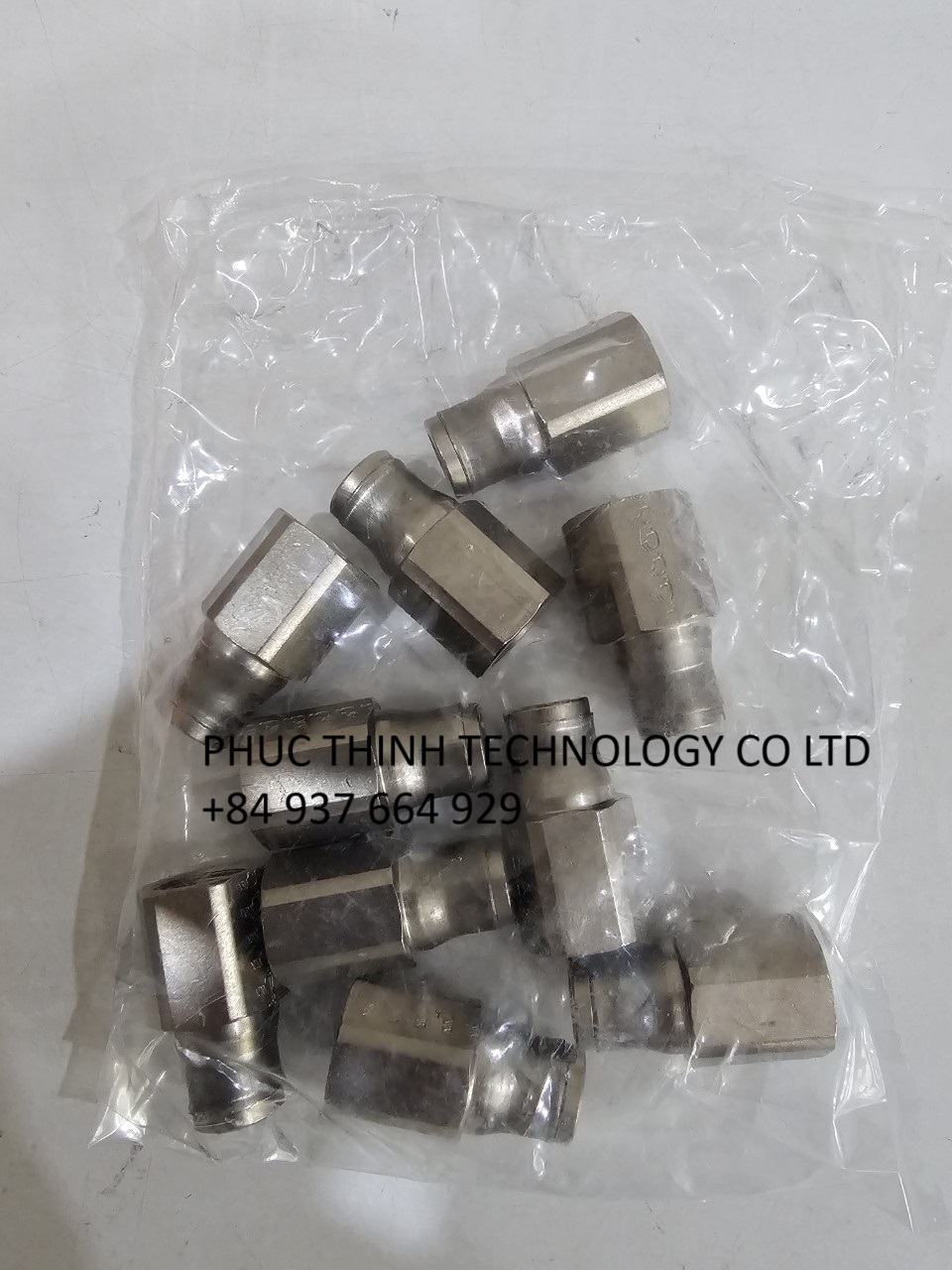

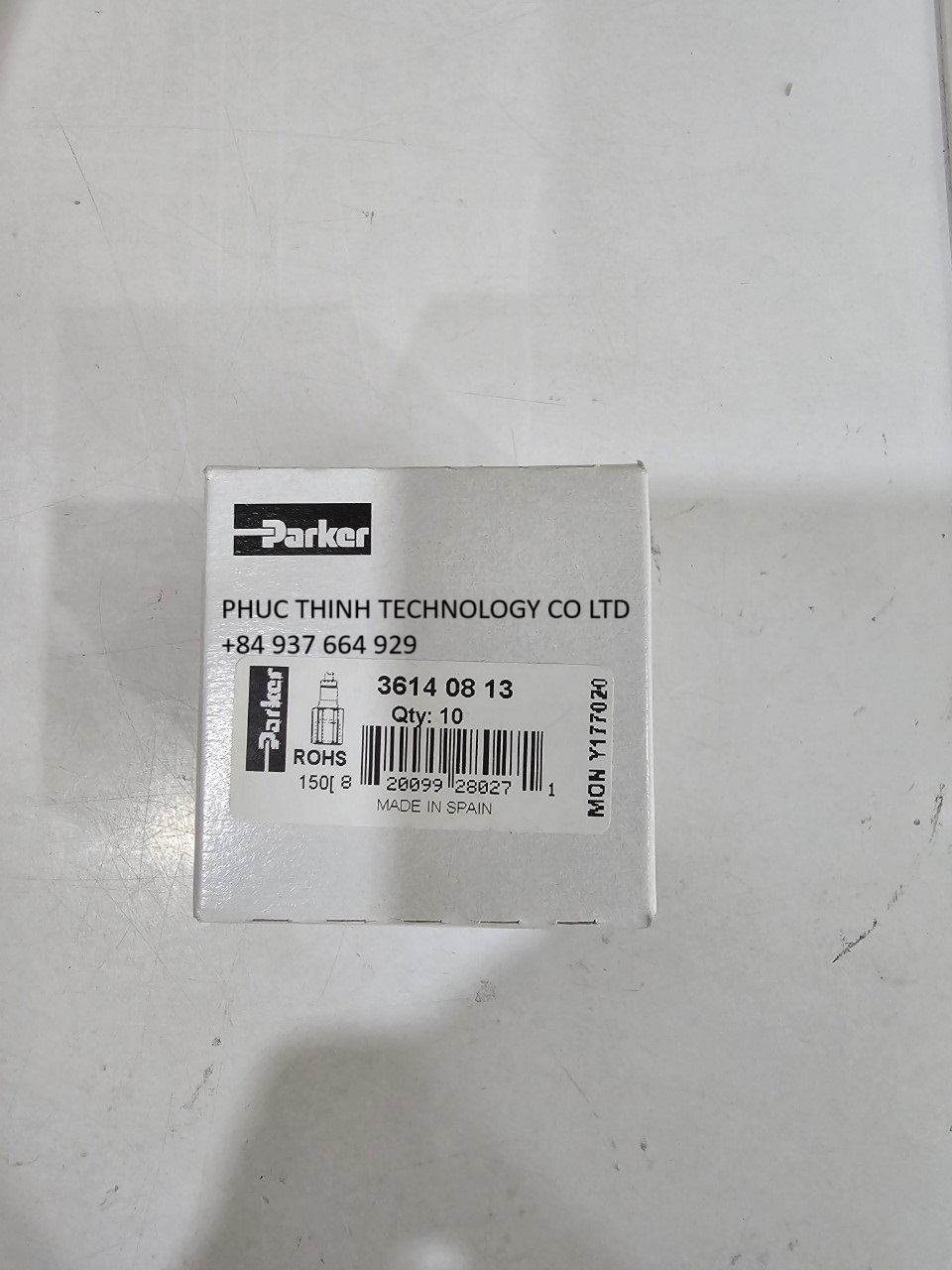

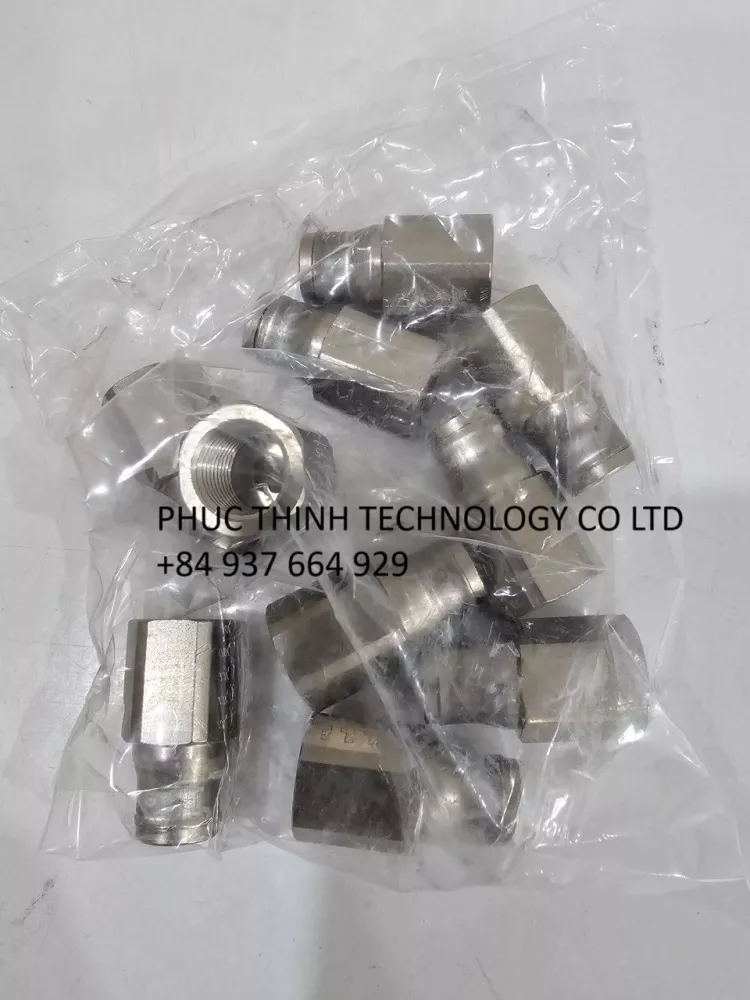

3614 08 13 LEGRIS STUD FITTING FEMALE
| Connection 1 Thread Size (metric): | G1/4 |
| O-Ring Material: | FKM |
| Maximum Operating Pressure: | 30 barg |
| Minimum Operating Temperature: | -20 °C |
| Maximum Operating Temperature: | 150 °C |
| Vacuum Pressure Rating: | 755 mm-Hg |
| Quantity per Box: | 10 |
| Weight: | 0.028 kg |
| Connection 1 Thread Style: | BSPP |
| Connection 2 Tube O.D. (mm): | 8 |
| Application: | Food Processing, Coffee Machines, In-Plant Automotive, Medical Equipment, Printing, Misting, Welding Robots |
| Media: | Air (Compressed Air), Lubricants (Grease), Water |
| Specifications Met: | ISO 14743, PED DI: 97/23/EC, ROHS DI: 2002/95/EC, ROHS DI: 2011/65/EC, RG: 1907/2006 (REACH), DI: 94/9/EC (ATEX ), UL94 V-0: Please Consult Us, FDA 21 CFR, RG: 193 |
| Connection 4 Tube O.D. (inch): | na |
| Color: | na |
| Body Material: | FDA CHEMICAL NICKEL PLATED BRASS |
| Connection 3 Tube O.D. (mm): | na |
| Connection 4 Tube O.D. (mm): | na |
| Connection 2 Tube O.D. (inch): | na |
| Product Type: | Stud Fittings |
| Shape: | Female stud fitting thread |
