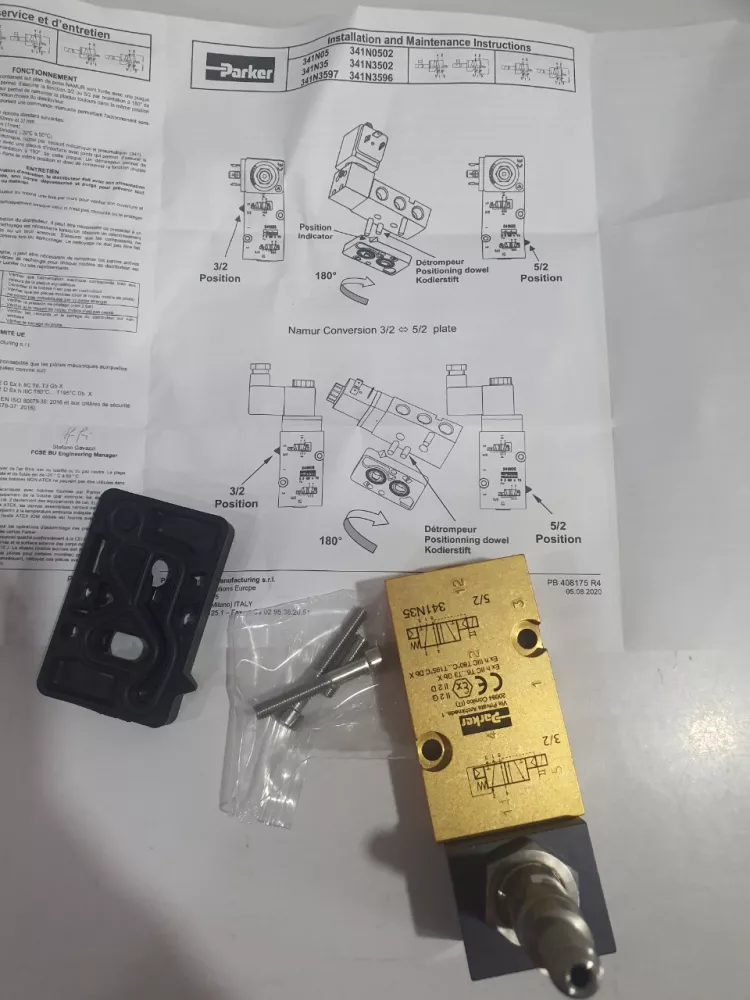

341N35 PARKER LUCIFER VALVE

341N35 PARKER LUCIFER VALVE


Hãy trở thành người đầu tiên đánh giá sản phẩm này( 0)
N "High Flow" NAMUR Series Solenoid Valves for Process applications | #341N35 N "High Flow" NAMUR Series is a full range of NAMUR indirect operated solenoid valves, from 1/4" to 1/2", solenoid or air operated with a borad range of functions including 3/2, 5/2, …

Liên hệ

  • Mã sản phẩm:
  • 341N35
  • Đơn vị tính:
  • Cái
  • Tình trạng:
  • Nhà cung cấp:
  • Parker USParker EU

Technical Specifications

  • Actuation Type:Solenoid Operated
  • Maximum Fluid Temperature:50 °C
  • Power Supply Voltage:-
  • Valve Type:3/2 - 5/2 Way
  • Port Size:1/4" G
  • Insulation Class:-
  • Coil Temperature Range:-
  • Flow Coefficient 1:1200 l/min
  • Function:Spring & air return
  • Port Type:Namur
  • Body Material:Anodized Aluminum
  • Media:Dry or Lubricated Air
  • Orifice Size:7,0 mm
  • Minimum Operating Pressure:2,5 bar
  • Maximum Operating Pressure:10 bar AC/DC
  • Minimum Fluid Temperature:-20 °C
  • Seal Material:NBR
  • Coil Power Consumption:-
  • Electrical Connection:-
  • Coil Specifications Met:-
  • Specifications Met:Manual Override - Perpendicular Operator
  • ATEX Specifications Met:
Liên hệ trực tiếp đến chúng tôi theo Hotline/ zalo 0937 664 929  hoặc email phuc.dao@phucthinh-tech.com

N "High Flow" NAMUR Series Solenoid Valves for Process applications | #341N35

N "High Flow" NAMUR Series is a full range of NAMUR indirect operated solenoid valves, from 1/4" to 1/2", solenoid or air operated with a borad range of functions including 3/2, 5/2, 5/3.

Tags: 341N35
