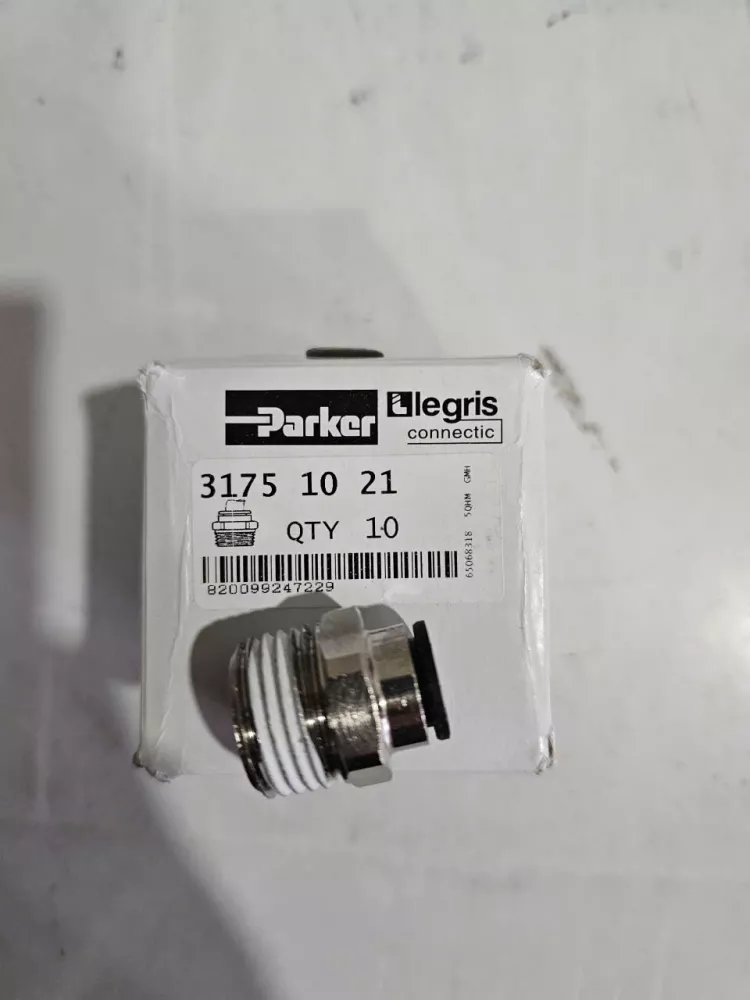

3175 10 21 technical Specifications
| Connection 2 Size: |
R 1/2 |
| Connection 1 Size: |
10 mm (O.D.) |
| Connection 2 Type: |
Male BSPT |
| Configuration: |
Tube to Port |
| Product Style: |
Stud Fitting |
| Brand: |
Parker, Legris |
| Division: |
Low Pressure Connectors Europe Division |
| Industry: |
Industrial Manufacturing Equipment, Industrial Processing, Chemicals Processing, Electronics, Semiconductor, Power Generation, Renewable Energy, Transportation, Off-road Machinery |
| Application: |
Robotics, Automotive, Pneumatics, Textile, Packaging, Vacuum |
| Technology: |
Fluid & Gas Handling |
| Product Type: |
Pneumatic Push-In Fittings - LF 3000® |
| Product Style: |
Stud Fittings |
| Product Series: |
LF 3000® |
| Vacuum Pressure Rating: |
755 mm-Hg |
| Shape: |
Straight |
| Configuration: |
Tube to Port |
| Connection 1 Type: |
Tube |
| Connection 1 Size: |
10 mm Tube O.D. |
| Connection 2 Type: |
Male, BSPT |
| Connection 2 Size: |
R 1/2 inch Thread |
| Hex Size: |
2 |
| Hex Type: |
Hexagon Metric |
| Maximum Operating Temperature: |
80 °C |
| Minimum Operating Temperature: |
-20 °C |
| For Fluid Type: |
Air (Compressed Air), Other Fluids: Please Consult Us |
| Body Material: |
Brass, Nickel-plated |
| Seal Material: |
NBR |
| Gripping Ring Material: |
Stainless Steel |
| Weight: |
0.036 kg |
| Quantity per Box: |
10 |
| Shape: |
Straight |
| 3175 04 11 |
|
Stud Fitting |
Straight |
Tube to Port |
4 mm (O.D.) |
1/8" NPT |
Male NPT |
| 3175 04 14 |
|
Stud Fitting |
Straight |
Tube to Port |
4 mm (O.D.) |
1/4" NPT |
Male NPT |
| 3175 06 11 |
|
Stud Fitting |
Straight |
Tube to Port |
6 mm (O.D.) |
1/8" NPT |
Male NPT |
| 3175 06 14 |
|
Stud Fitting |
Straight |
Tube to Port |
6 mm (O.D.) |
1/4" NPT |
Male NPT |
| 3175 08 11 |
|
Stud Fitting |
Straight |
Tube to Port |
8 mm (O.D.) |
1/8" NPT |
Male NPT |
| 3175 08 14 |
|
Stud Fitting |
Straight |
Tube to Port |
8 mm (O.D.) |
1/4" NPT |
Male NPT |
| 3175 08 18 |
|
Stud Fitting |
Straight |
Tube to Port |
8 mm (O.D.) |
3/8" NPT |
Male NPT |
| 3175 10 14 |
|
Stud Fitting |
Straight |
Tube to Port |
10 mm (O.D.) |
1/4" NPT |
Male NPT |
| 3175 10 18 |
|
Stud Fitting |
Straight |
Tube to Port |
10 mm (O.D.) |
3/8" NPT |
Male NPT |
| 3175 10 22 |
|
Stud Fitting |
Straight |
Tube to Port |
10 mm (O.D.) |
1/2" NPT |
Male NPT |
| 3175 12 18 |
|
Stud Fitting |
Straight |
Tube to Port |
12 mm (O.D.) |
3/8" NPT |
Male NPT |
| 3175 12 22 |
|
Stud Fitting |
Straight |
Tube to Port |
12 mm (O.D.) |
1/2" NPT |
Male NPT |
| 3175 53 11 |
|
Stud Fitting |
Straight |
Tube to Port |
1/8" (O.D.) |
1/8" NPT |
Male NPT |
| 3175 53 14 |
|
Stud Fitting |
Straight |
Tube to Port |
1/8" (O.D.) |
1/4" NPT |
Male NPT |
| 3175 56 11 |
|
Stud Fitting |
Straight |
Tube to Port |
1/4" (O.D.) |
1/8" NPT |
Male NPT |
| 3175 56 14 |
|
Stud Fitting |
Straight |
Tube to Port |
1/4" (O.D.) |
1/4" NPT |
Male NPT |
| 3175 56 18 |
|
Stud Fitting |
Straight |
Tube to Port |
1/4" (O.D.) |
3/8" NPT |
Male NPT |
| 3175 60 11 |
|
Stud Fitting |
Straight |
Tube to Port |
3/8" (O.D.) |
1/8" NPT |
Male NPT |
| 3175 60 14 |
|
Stud Fitting |
Straight |
Tube to Port |
3/8" (O.D.) |
1/4" NPT |
Male NPT |
| 3175 60 18 |
|
Stud Fitting |
Straight |
Tube to Port |
3/8" (O.D.) |
3/8" NPT |
Male NPT |
| 3175 60 22 |
|
Stud Fitting |
Straight |
Tube to Port |
3/8" (O.D.) |
1/2" NPT |
Male NPT |
| 3175 62 14 |
|
Stud Fitting |
Straight |
Tube to Port |
1/2" (O.D.) |
1/4" NPT |
Male NPT |
| 3175 62 18 |
|
Stud Fitting |
Straight |
Tube to Port |
1/2" (O.D.) |
3/8" NPT |
Male NPT |
| 3175 62 22 |
|
Stud Fitting |
Straight |
Tube to Port |
1/2" (O.D.) |
1/2" NPT |
Male NPT |
| 3175 00 00 49 |
|
Stud Fitting |
Straight |
Tube to Port |
12 mm (O.D.) |
R 1/2 |
Male BSPT |
| 3175 04 10 |
|
Stud Fitting |
Straight |
Tube to Port |
4 mm (O.D.) |
R 1/8 |
Male BSPT |
| 3175 04 10 52 |
|
Stud Fitting |
Straight |
Tube to Port |
4 mm (O.D.) |
R 1/8 |
Male BSPT |
| 3175 04 13 |
|
Stud Fitting |
Straight |
Tube to Port |
4 mm (O.D.) |
R 1/4 |
Male BSPT |
| 3175 04 17 |
|
Stud Fitting |
Straight |
Tube to Port |
4 mm (O.D.) |
R 3/8 |
Male BSPT |
| 3175 06 10 |
|
Stud Fitting |
Straight |
Tube to Port |
6 mm (O.D.) |
R 1/8 |
Male BSPT |
| 3175 06 10 52 |
|
Stud Fitting |
Straight |
Tube to Port |
6 mm (O.D.) |
R 1/8 |
Male BSPT |
| 3175 06 13 |
|
Stud Fitting |
Straight |
Tube to Port |
6 mm (O.D.) |
R 1/4 |
Male BSPT |
| 3175 06 13 52 |
|
Stud Fitting |
Straight |
Tube to Port |
6 mm (O.D.) |
R 1/4 |
Male BSPT |
| 3175 06 17 |
|
Stud Fitting |
Straight |
Tube to Port |
6 mm (O.D.) |
R 3/8 |
Male BSPT |
| 3175 06 21 |
|
Stud Fitting |
Straight |
Tube to Port |
6 mm (O.D.) |
R 1/2 |
Male BSPT |
| 3175 08 10 |
|
Stud Fitting |
Straight |
Tube to Port |
8 mm (O.D.) |
R 1/8 |
Male BSPT |
| 3175 08 10 52 |
|
Stud Fitting |
Straight |
Tube to Port |
8 mm (O.D.) |
R 1/8 |
Male BSPT |
| 3175 08 13 |
|
Stud Fitting |
Straight |
Tube to Port |
8 mm (O.D.) |
R 1/4 |
Male BSPT |
| 3175 08 13 52 |
|
Stud Fitting |
Straight |
Tube to Port |
8 mm (O.D.) |
R 1/4 |
Male BSPT |
| 3175 08 17 |
|
Stud Fitting |
Straight |
Tube to Port |
8 mm (O.D.) |
R 3/8 |
Male BSPT |
| 3175 08 17 52 |
|
Stud Fitting |
Straight |
Tube to Port |
8 mm (O.D.) |
R 3/8 |
Male BSPT |
| 3175 08 21 |
|
Stud Fitting |
Straight |
Tube to Port |
8 mm (O.D.) |
R 1/2 |
Male BSPT |
| 3175 10 10 |
|
Stud Fitting |
Straight |
Tube to Port |
10 mm (O.D.) |
R 1/8 |
Male BSPT |
| 3175 10 13 |
|
Stud Fitting |
Straight |
Tube to Port |
10 mm (O.D.) |
R 1/4 |
Male BSPT |
| 3175 10 13 52 |
|
Stud Fitting |
Straight |
Tube to Port |
10 mm (O.D.) |
R 1/4 |
Male BSPT |
| 3175 10 17 |
|
Stud Fitting |
Straight |
Tube to Port |
10 mm (O.D.) |
R 3/8 |
Male BSPT |
| 3175 10 17 52 |
|
Stud Fitting |
Straight |
Tube to Port |
10 mm (O.D.) |
R 3/8 |
Male BSPT |
| 3175 10 21 |
|
Stud Fitting |
Straight |
Tube to Port |
10 mm (O.D.) |
R 1/2 |
Male BSPT |
| 3175 12 13 |
|
Stud Fitting |
Straight |
Tube to Port |
12 mm (O.D.) |
R 1/4 |
Male BSPT |
| 3175 12 13 52 |
|
Stud Fitting |
Straight |
Tube to Port |
12 mm (O.D.) |
R 1/4 |
Male BSPT |
| 3175 12 17 |
|
Stud Fitting |
Straight |
Tube to Port |
12 mm (O.D.) |
R 3/8 |
Male BSPT |
| 3175 12 17 52 |
|
Stud Fitting |
Straight |
Tube to Port |
12 mm (O.D.) |
R 3/8 |
Male BSPT |
| 3175 12 21 |
|
Stud Fitting |
Straight |
Tube to Port |
12 mm (O.D.) |
R 1/2 |
Male BSPT |
| 3175 12 21 52 |
|
Stud Fitting |
Straight |
Tube to Port |
12 mm (O.D.) |
R 1/2 |
Male BSPT |
| 3175 14 17 |
|
Stud Fitting |
Straight |
Tube to Port |
14 mm (O.D.) |
R 3/8 |
Male BSPT |
| 3175 14 21 |
|
Stud Fitting |
Straight |
Tube to Port |
14 mm (O.D.) |
R 1/2 |
Male BSPT |
| 3175 16 17 |
|
Stud Fitting |
Straight |
Tube to Port |
16 mm (O.D.) |
R 3/8 |
Male BSPT |
| 3175 16 21 |
|
Stud Fitting |
Straight |
Tube to Port |
16 mm (O.D.) |
1/2" |
Male BSPT |
| 3175 53 10 |
|
Stud Fitting |
Straight |
Tube to Port |
1/8" (O.D.) |
R 1/8 |
Male BSPT |
| 3175 55 10 |
|
Stud Fitting |
Straight |
Tube to Port |
3/16" (O.D.) |
R 1/8 |
Male BSPT |
| 3175 55 13 |
|
Stud Fitting |
Straight |
Tube to Port |
3/16" (O.D.) |
R 1/4 |
Male BSPT |
| 3175 56 10 |
|
Stud Fitting |
Straight |
Tube to Port |
1/4" (O.D.) |
R 1/8 |
Male BSPT |
| 3175 56 13 |
|
Stud Fitting |
Straight |
Tube to Port |
1/4" (O.D.) |
R 1/4 |
Male BSPT |
| 3175 60 13 |
|
Stud Fitting |
Straight |
Tube to Port |
3/8" (O.D.) |
R 1/4 |
Male BSPT |
| 3175 60 17 |
|
Stud Fitting |
Straight |
Tube to Port |
3/8" (O.D.) |
R 3/8 |
Male BSPT |
| 3175 60 21 |
|
Stud Fitting |
Straight |
Tube to Port |
3/8" (O.D.) |
R 1/2 |
Male BSPT |
| 3175 62 13 |
|
Stud Fitting |
Straight |
Tube to Port |
1/2" (O.D.) |
R 1/4 |
Male BSPT |
| 3175 62 17 |
|
Stud Fitting |
Straight |
Tube to Port |
1/2" (O.D.) |
R 3/8 |
Male BSPT |
| 3175 62 21 |
|
Stud Fitting |
Straight |
Tube to Port |
1/2" (O.D.) |
R 1/2 |
Male BSPT |
Liên hệ trực tiếp đến chúng tôi theo Hotline/ zalo 0937 664 929 hoặc email phuc.dao@phucthinh-tech.com
3175 10 21
technical Specifications
| Connection 2 Size: |
R 1/2 |
| Connection 1 Size: |
10 mm (O.D.) |
| Connection 2 Type: |
Male BSPT |
| Configuration: |
Tube to Port |
| Product Style: |
Stud Fitting |
| Brand: |
Parker, Legris |
| Division: |
Low Pressure Connectors Europe Division |
| Industry: |
Industrial Manufacturing Equipment, Industrial Processing, Chemicals Processing, Electronics, Semiconductor, Power Generation, Renewable Energy, Transportation, Off-road Machinery |
| Application: |
Robotics, Automotive, Pneumatics, Textile, Packaging, Vacuum |
| Technology: |
Fluid & Gas Handling |
| Product Type: |
Pneumatic Push-In Fittings - LF 3000® |
| Product Style: |
Stud Fittings |
| Product Series: |
LF 3000® |
| Vacuum Pressure Rating: |
755 mm-Hg |
| Shape: |
Straight |
| Configuration: |
Tube to Port |
| Connection 1 Type: |
Tube |
| Connection 1 Size: |
10 mm Tube O.D. |
| Connection 2 Type: |
Male, BSPT |
| Connection 2 Size: |
R 1/2 inch Thread |
| Hex Size: |
2 |
| Hex Type: |
Hexagon Metric |
| Maximum Operating Temperature: |
80 °C |
| Minimum Operating Temperature: |
-20 °C |
| For Fluid Type: |
Air (Compressed Air), Other Fluids: Please Consult Us |
| Body Material: |
Brass, Nickel-plated |
| Seal Material: |
NBR |
| Gripping Ring Material: |
Stainless Steel |
| Weight: |
0.036 kg |
| Quantity per Box: |
10 |
| Shape: |
Straight |
