3175 06 10  LEGRIS PARKER 06 X 1/8 "

3175 06 10 LEGRIS PARKER 06 X 1/8 "


Hãy trở thành người đầu tiên đánh giá sản phẩm này ( 0)
3175 06 10  made in china / France  BOX 10  Pneumatic Push-In Fittings - LF 3000® | #3175 06 10 The LF 3000® push-in fittings range includes banjo, oscillating, and modular multiport functions offering multiple configurations. Robust, lightweight, and compact thus connectors allow you to optimize the design of your pneumatic [...]

Liên hệ

  • Mã sản phẩm:
  • 31750610
  • Đơn vị tính:
  • Cái
  • Tình trạng:

3175 06 10 legris pneumatic 3175 06 10 parker adaptor 3175 06 10parker legris 31750610hông số kỹ thuật

  • Kích cỡ kết nối 1:06 MM (O.D)
  • Kích cỡ kết nối 2:R 1/8
  • Loại kết nối 2:Male BSPT
  • Cấu hình:Tube to Port
  • Kiểu dáng sản phẩm:Stud Fitting
  • Hình dạng:Straight
  • Vật liệu thân:NICKEL PLATED BRASS
  • Chất liệu vòng chữ O:NBR
  • Chất liệu vòng kẹp:STAINLESS STEEL
  • Vật liệu chất bịt kín ren:PTFE
  • Áp suất vận hành tối đa:20 barg
  • Nhiệt độ làm việc tối thiểu:-20 °C
  • Nhiệt độ vận hành tối đa:80 °C
  • Định mức áp suất chân không:755 mm-Hg
  • Số lượng mỗi thùng:10
  • Trọng lượng:0,017 kg
  • Ứng dụng:Robotics, Automotive Process, Pneumatics, Semi-Conductors, Textile, Packaging, Vacuum
  • Truyền thông:Compressed Air, Other fluids: please consult us
  • Đáp ứng các thông số kỹ thuật:ISO 14743, DI: 97/23/EC (PED), DI : 2002/95/EC (RoHS), 2011/65/EC, DI : 1907/2006 (REACH)
Liên hệ trực tiếp đến chúng tôi theo Hotline/ zalo 0937 664 929  hoặc email phuc.dao@phucthinh-tech.com

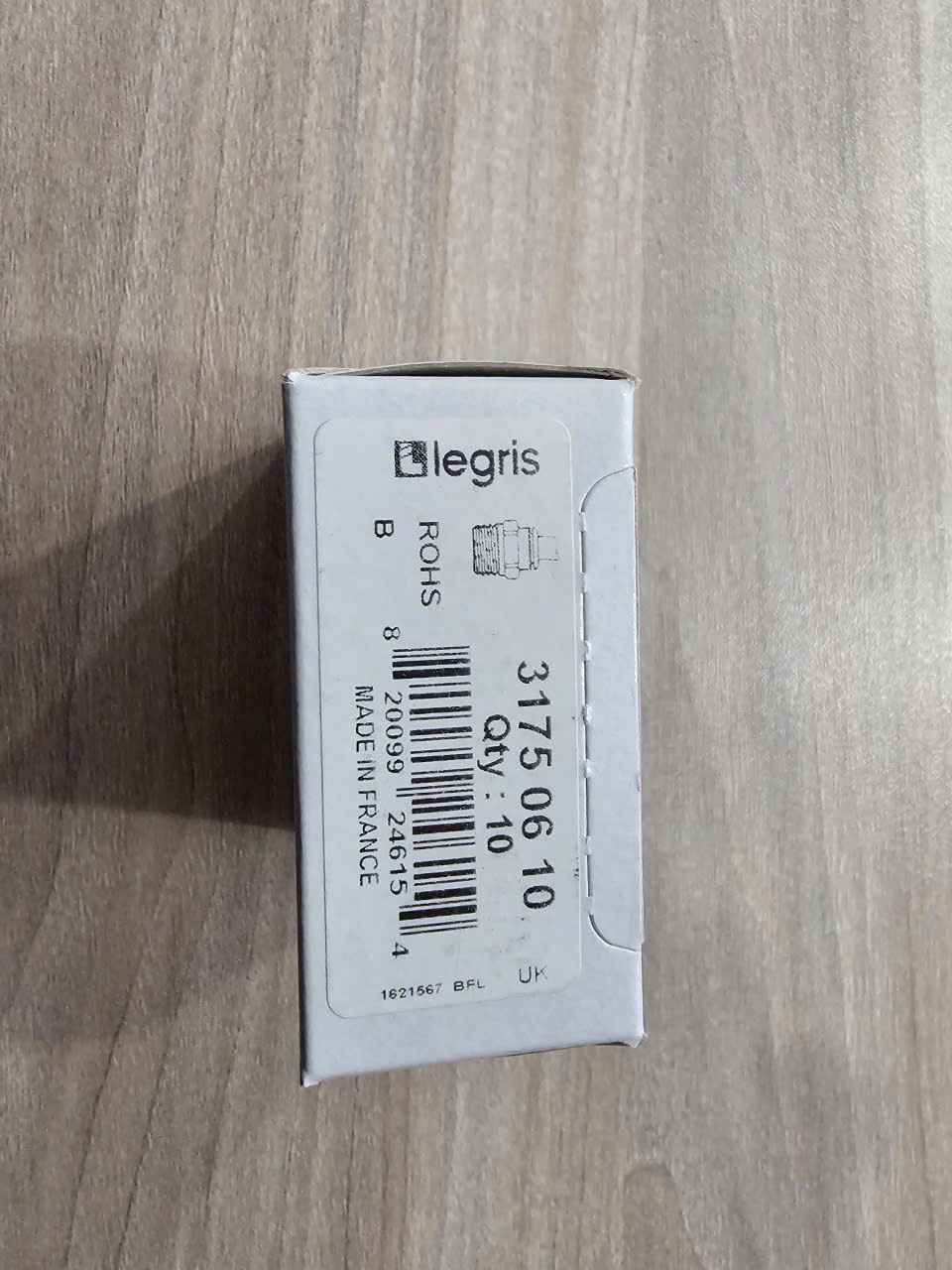

3175 06 10  made in china / France
BOX 10

Pneumatic Push-In Fittings - LF 3000® | #3175 06 10

The LF 3000® push-in fittings range includes banjo, oscillating, and modular multiport functions offering multiple configurations. Robust, lightweight, and compact thus connectors allow you to optimize the design of your pneumatic equipment.

Tags: 31750610
