3101 08 13

3101 08 13

3101 08 13


Hãy trở thành người đầu tiên đánh giá sản phẩm này ( 0)

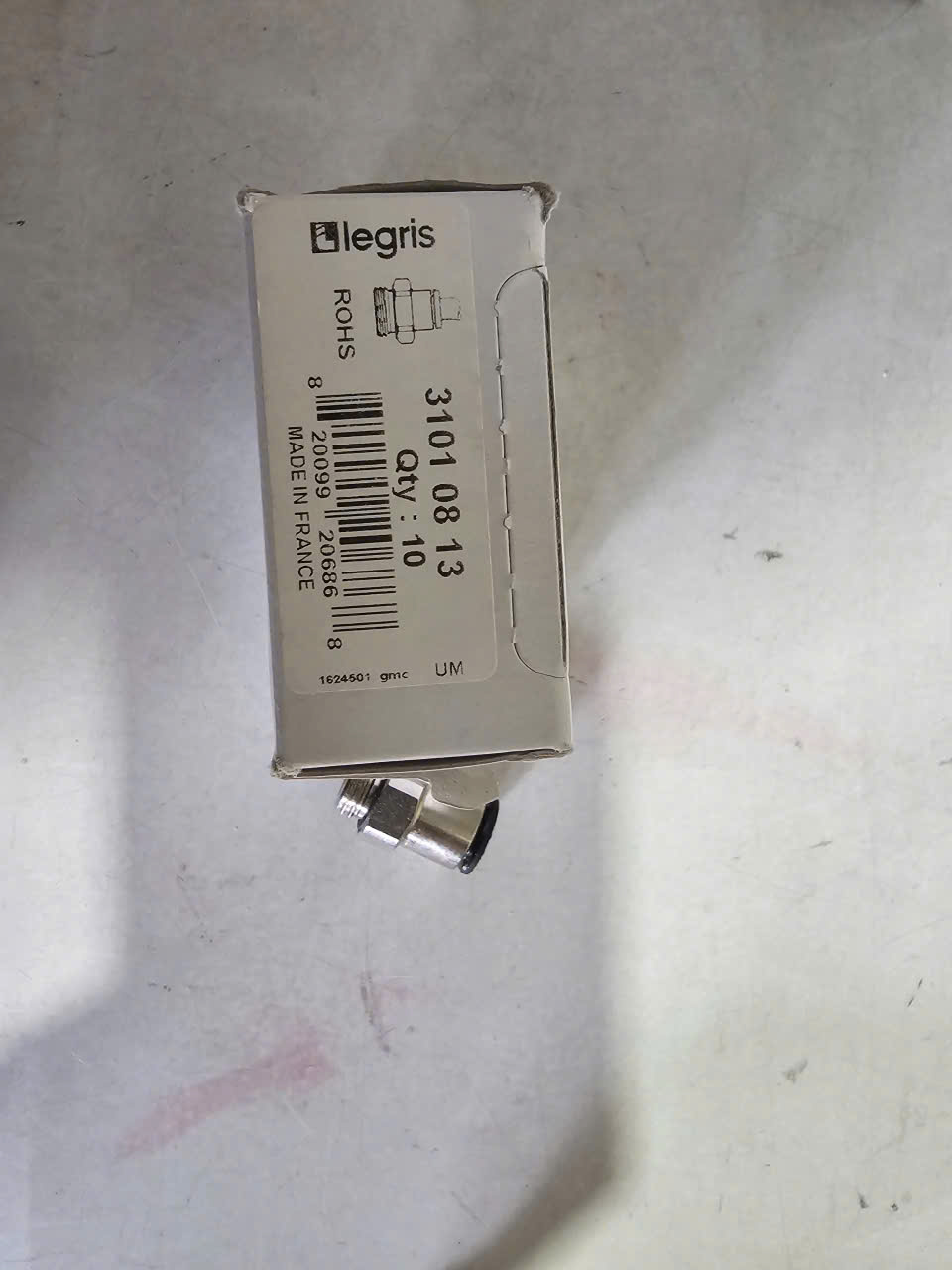

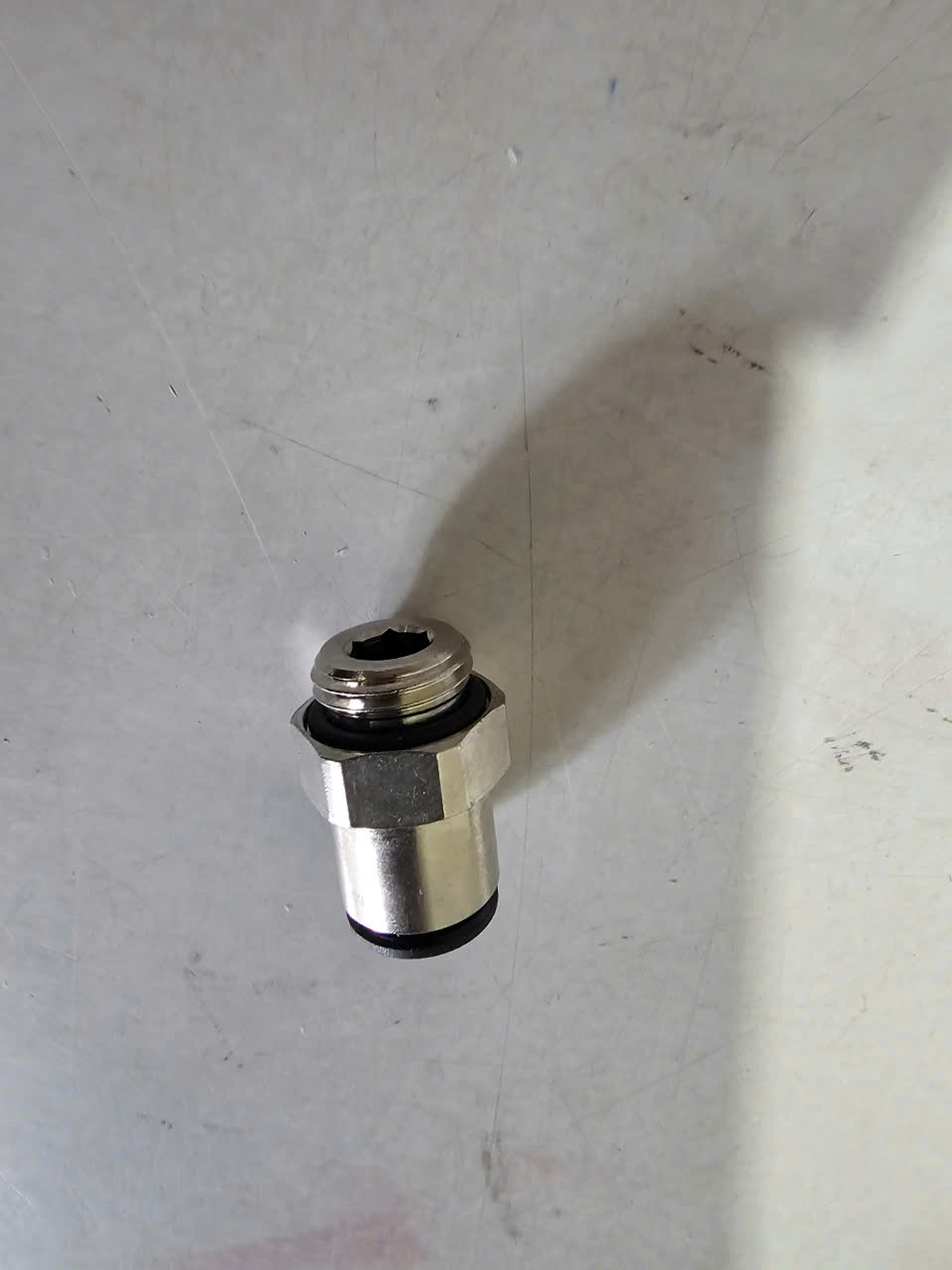

3101 08 13 Connection 2 Size: G 1/4 Connection 1 Size: 8 mm (O.D.) Configuration: Tube to Port Connection 2 Type: Male BSPP Product Style: Stud Fitting Brand: Parker, Legris Division: Low Pressure Connectors Europe Division Industry: Industrial Manufacturing Equipment, Industrial Processing, Chemicals Processing, [...]

Liên hệ

  • Mã sản phẩm:
  • 31010813
  • Đơn vị tính:
  • Cái
  • Tình trạng:

3101 08 13

Connection 2 Size: G 1/4
Connection 1 Size: 8 mm (O.D.)
Configuration: Tube to Port
Connection 2 Type: Male BSPP
Product Style: Stud Fitting
Brand: Parker, Legris
Division: Low Pressure Connectors Europe Division
Industry: Industrial Manufacturing Equipment, Industrial Processing, Chemicals Processing, Electronics, Semiconductor, Power Generation, Renewable Energy, Transportation, Off-road Machinery
Application: Robotics, Automotive, Pneumatics, Textile, Packaging, Vacuum
Technology: Fluid & Gas Handling
Product Type: Pneumatic Push-In Fittings - LF 3000®
Product Style: Stud Fittings
Product Series: LF 3000®
Vacuum Pressure Rating: 755 mm-Hg
Shape: Straight
Configuration: Tube to Port
Connection 1 Type: Tube
Connection 1 Size: 8 mm Tube O.D.
Connection 2 Type: Male, BSPP
Connection 2 Size: G 1/4 inch Thread
Hex Size: 16
Hex Type: Hexagon Metric
Maximum Operating Temperature: 80 °C
Minimum Operating Temperature: -20 °C
For Fluid Type: Air (Compressed Air), Other Fluids: Please Consult Us
Body Material: Brass, Nickel-plated
Seal Material: NBR
Gripping Ring Material: Stainless Steel
Weight: 0.016 kg
Quantity per Box: 10
Shape:

Straight

Products Status Product Style Shape Configuration Connection 1 Size Connection 2 Size Connection 2 Type
3101 04 10   Stud Fitting Straight Tube to Port 4 mm (O.D.) G 1/8 Male BSPP
3101 04 10 52   Stud Fitting Straight Tube to Port 4 mm (O.D.) G 1/8 Male BSPP
3101 04 13   Stud Fitting Straight Tube to Port 4 mm (O.D.) G 1/4 Male BSPP
3101 04 13 52 Stud Fitting Straight Tube to Port 4 mm (O.D.) G 1/4 Male BSPP
3101 06 10   Stud Fitting Straight Tube to Port 6 mm (O.D.) G 1/8 Male BSPP
3101 06 10 52   Stud Fitting Straight Tube to Port 6 mm (O.D.) G 1/8 Male BSPP
3101 06 13   Stud Fitting Straight Tube to Port 6 mm (O.D.) G 1/4 Male BSPP
3101 06 13 52   Stud Fitting Straight Tube to Port 6 mm (O.D.) G 1/4 Male BSPP
3101 06 17   Stud Fitting Straight Tube to Port 6 mm (O.D.) G 3/8 Male BSPP
3101 06 21   Stud Fitting Straight Tube to Port 6 mm (O.D.) G 1/2 Male BSPP
3101 08 10   Stud Fitting Straight Tube to Port 8 mm (O.D.) G 1/8 Male BSPP
3101 08 10 52   Stud Fitting Straight Tube to Port 8 mm (O.D.) G 1/8 Male BSPP
3101 08 13   Stud Fitting Straight Tube to Port 8 mm (O.D.) G 1/4 Male BSPP
3101 08 13 52   Stud Fitting Straight Tube to Port 8 mm (O.D.) G 1/4 Male BSPP
3101 08 17   Stud Fitting Straight Tube to Port 8 mm (O.D.) G 3/8 Male BSPP
3101 08 17 52   Stud Fitting Straight Tube to Port 8 mm (O.D.) G 3/8 Male BSPP
3101 08 21   Stud Fitting Straight Tube to Port 8 mm (O.D.) G 1/2 Male BSPP
3101 10 13   Stud Fitting Straight Tube to Port 10 mm (O.D.) G 1/4 Male BSPP
3101 10 13 52   Stud Fitting Straight Tube to Port 10 mm (O.D.) G 1/4 Male BSPP
3101 10 17   Stud Fitting Straight Tube to Port 10 mm (O.D.) G 3/8 Male BSPP
3101 10 17 52   Stud Fitting Straight Tube to Port 10 mm (O.D.) G 3/8 Male BSPP
3101 10 21   Stud Fitting Straight Tube to Port 10 mm (O.D.) G 1/2 Male BSPP
3101 12 13   Stud Fitting Straight Tube to Port 12 mm (O.D.) G 1/4 Male BSPP
3101 12 13 52   Stud Fitting Straight Tube to Port 12 mm (O.D.) G 1/4 Male BSPP
3101 12 17   Stud Fitting Straight Tube to Port 12 mm (O.D.) G 3/8 Male BSPP
3101 12 17 52   Stud Fitting Straight Tube to Port 12 mm (O.D.) G 3/8 Male BSPP
3101 12 21   Stud Fitting Straight Tube to Port 12 mm (O.D.) G 1/2 Male BSPP
3101 12 21 52   Stud Fitting Straight Tube to Port 12 mm (O.D.) G 1/2 Male BSPP
3101 14 17   Stud Fitting Straight Tube to Port 14 mm (O.D.) G 3/8 Male BSPP
3101 14 21   Stud Fitting Straight Tube to Port 14 mm (O.D.) G 1/2 Male BSPP
3101 16 17   Stud Fitting Straight Tube to Port 16 mm (O.D.) G 3/8 Male BSPP
3101 16 21   Stud Fitting Straight Tube to Port 16 mm (O.D.) G 1/2 Male BSPP
Liên hệ trực tiếp đến chúng tôi theo Hotline/ zalo 0937 664 929  hoặc email phuc.dao@phucthinh-tech.com

3101 08 13

Connection 2 Size: G 1/4
Connection 1 Size: 8 mm (O.D.)
Configuration: Tube to Port
Connection 2 Type: Male BSPP
Product Style: Stud Fitting
Brand: Parker, Legris
Division: Low Pressure Connectors Europe Division
Industry: Industrial Manufacturing Equipment, Industrial Processing, Chemicals Processing, Electronics, Semiconductor, Power Generation, Renewable Energy, Transportation, Off-road Machinery
Application: Robotics, Automotive, Pneumatics, Textile, Packaging, Vacuum
Technology: Fluid & Gas Handling
Product Type: Pneumatic Push-In Fittings - LF 3000®
Product Style: Stud Fittings
Product Series: LF 3000®
Vacuum Pressure Rating: 755 mm-Hg
Shape: Straight
Configuration: Tube to Port
Connection 1 Type: Tube
Connection 1 Size: 8 mm Tube O.D.
Connection 2 Type: Male, BSPP
Connection 2 Size: G 1/4 inch Thread
Hex Size: 16
Hex Type: Hexagon Metric
Maximum Operating Temperature: 80 °C
Minimum Operating Temperature: -20 °C
For Fluid Type: Air (Compressed Air), Other Fluids: Please Consult Us
Body Material: Brass, Nickel-plated
Seal Material: NBR
Gripping Ring Material: Stainless Steel
Weight: 0.016 kg
Quantity per Box: 10
Shape: Straight
Tags: 31010813
