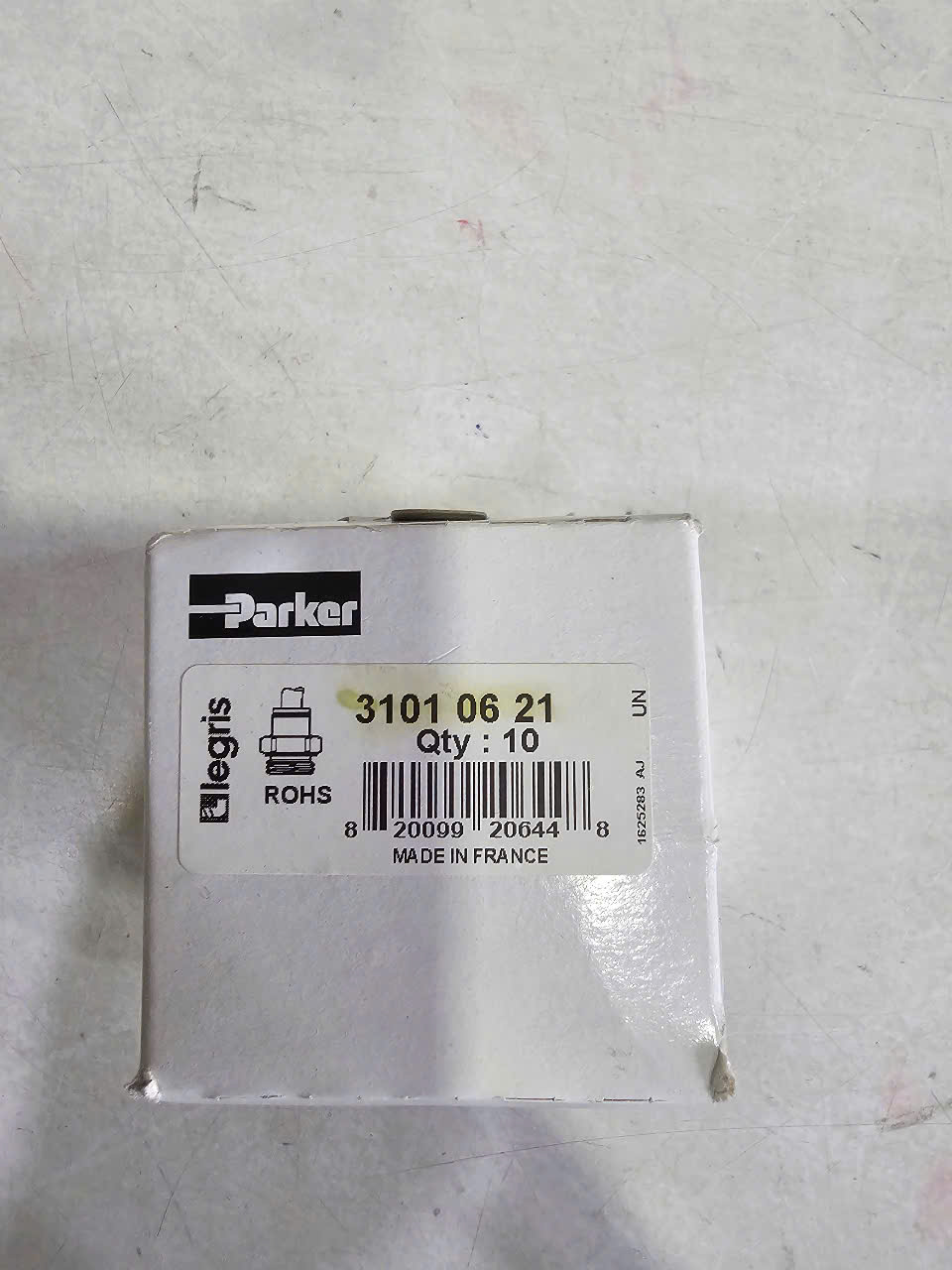

3101 06 21

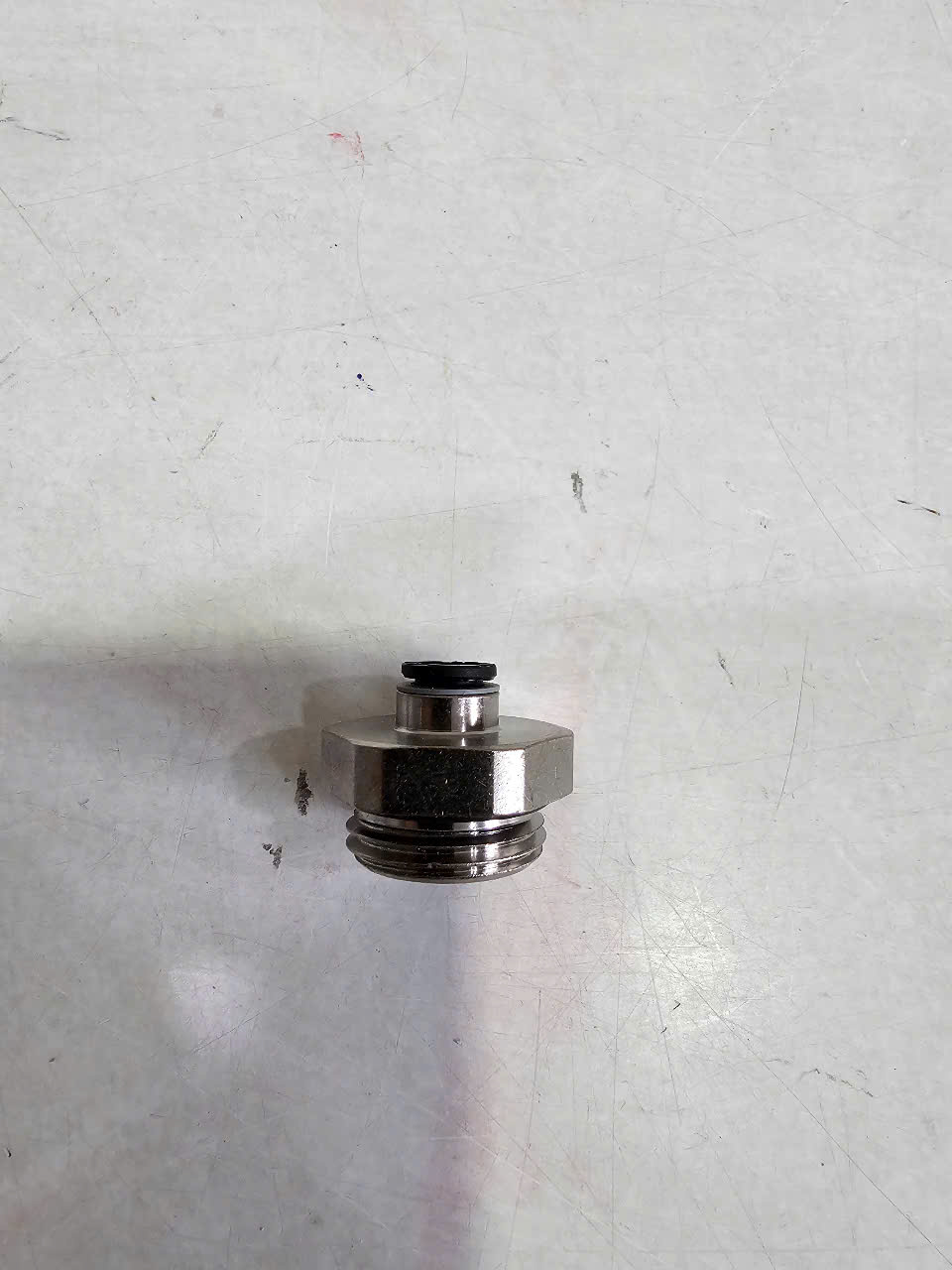

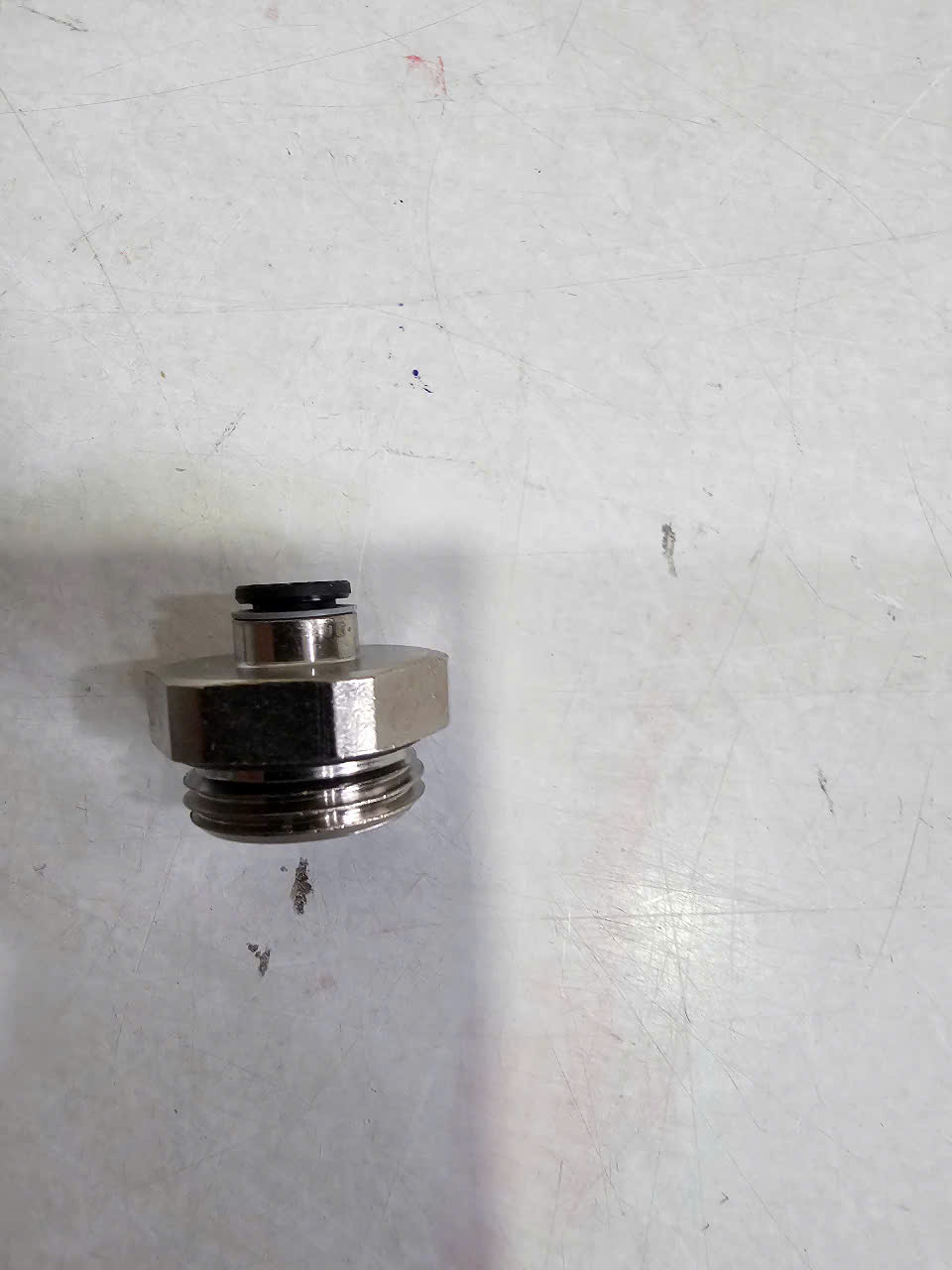

Type: Straight push-in stud fitting
Tube Size: 6 mm OD
Thread Size: 1/2″ BSPP male
Hex Size: 24 mm
Body Material: Composite (polymer)
Thread Material: Nickel-plated brass
Seals: NBR (Nitrile rubber)
Gripping Ring: Stainless steel
| Property | Value |
|---|---|
| Pressure Range | Vacuum to 20 bar (290 psi) |
| Temperature Range | –20°C to +80°C |
| Fluid Compatibility | Compressed air, inert gases |
| Weight | ~39 g |
| Compliance | ISO 14743, RoHS, REACH   |
3101 06 21
Type: Straight push-in stud fitting
Tube Size: 6 mm OD
Thread Size: 1/2″ BSPP male
Hex Size: 24 mm
Body Material: Composite (polymer)
Thread Material: Nickel-plated brass
Seals: NBR (Nitrile rubber)
Gripping Ring: Stainless steel
| Property | Value |
|---|---|
| Pressure Range | Vacuum to 20 bar (290 psi) |
| Temperature Range | –20°C to +80°C |
| Fluid Compatibility | Compressed air, inert gases |
| Weight | ~39 g |
| Compliance | ISO 14743, RoHS, REACH |
