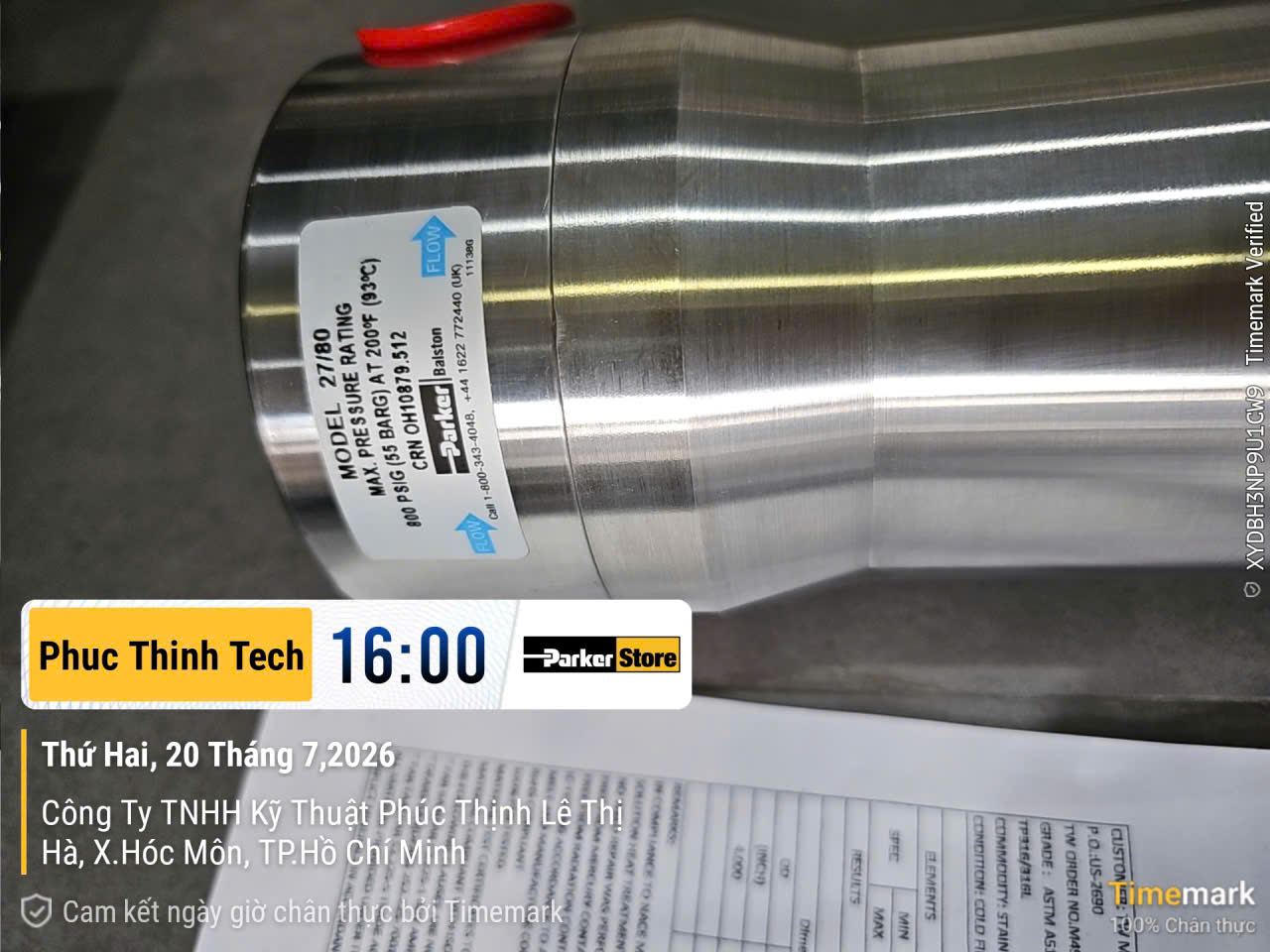

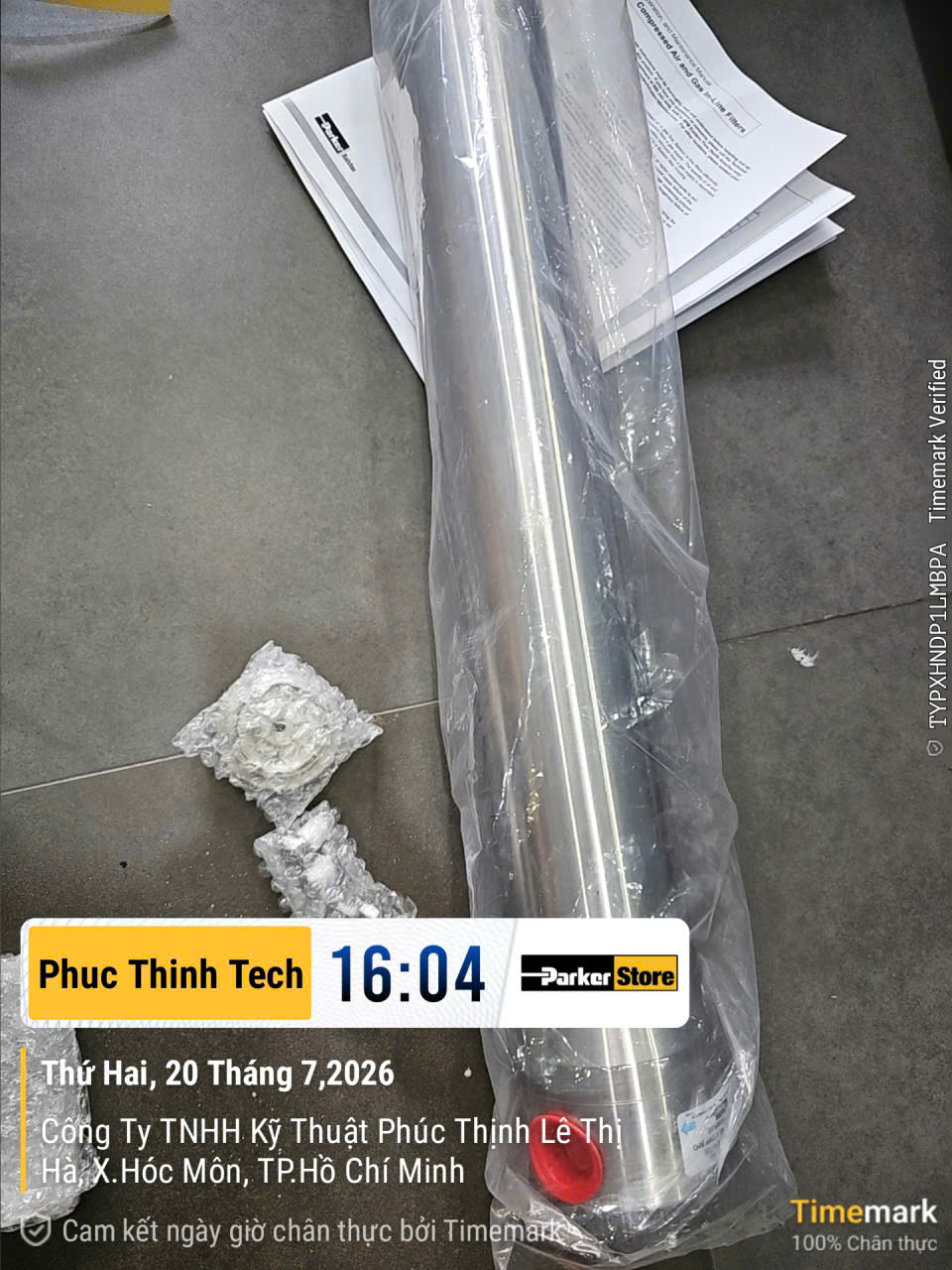

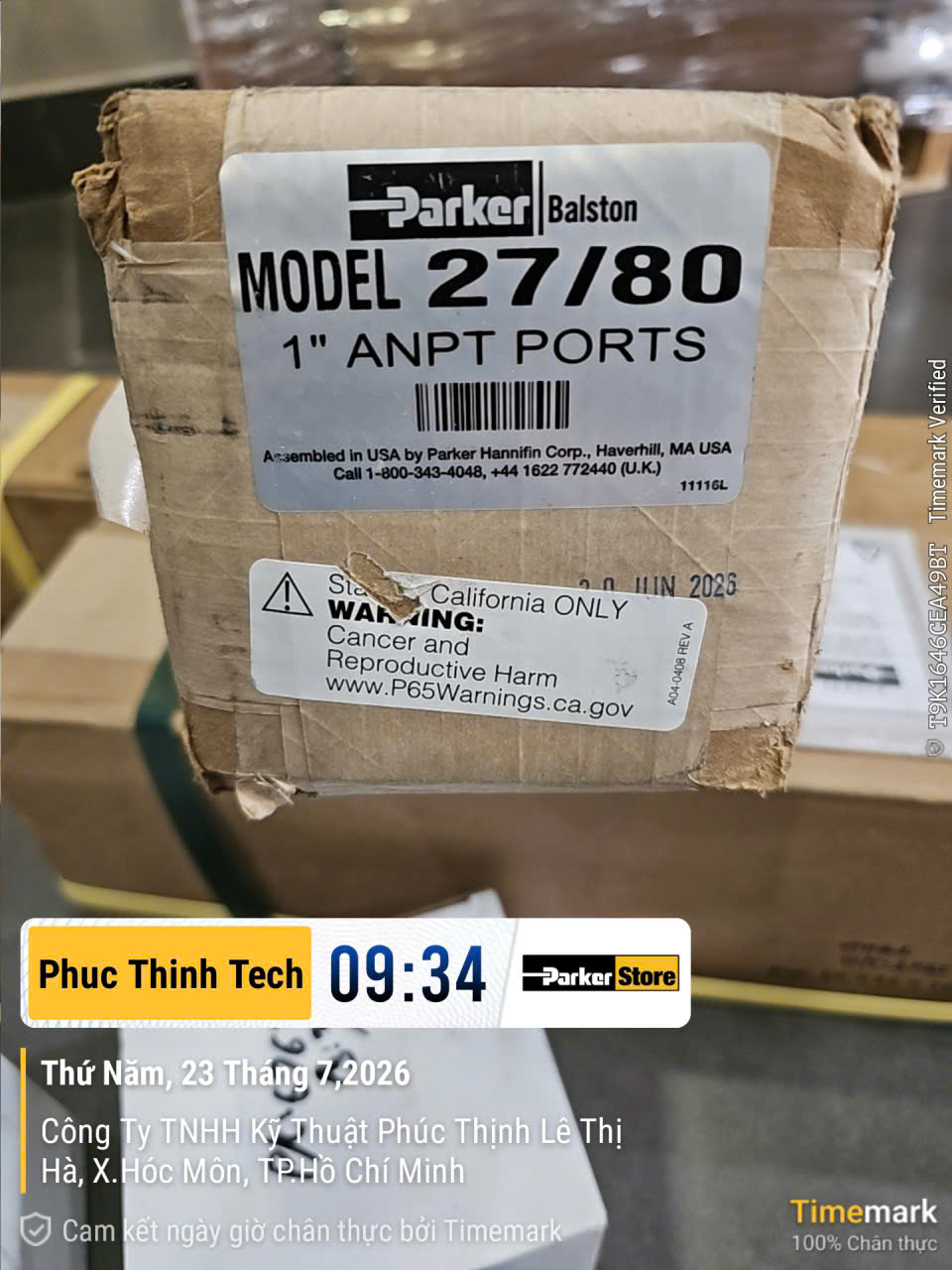

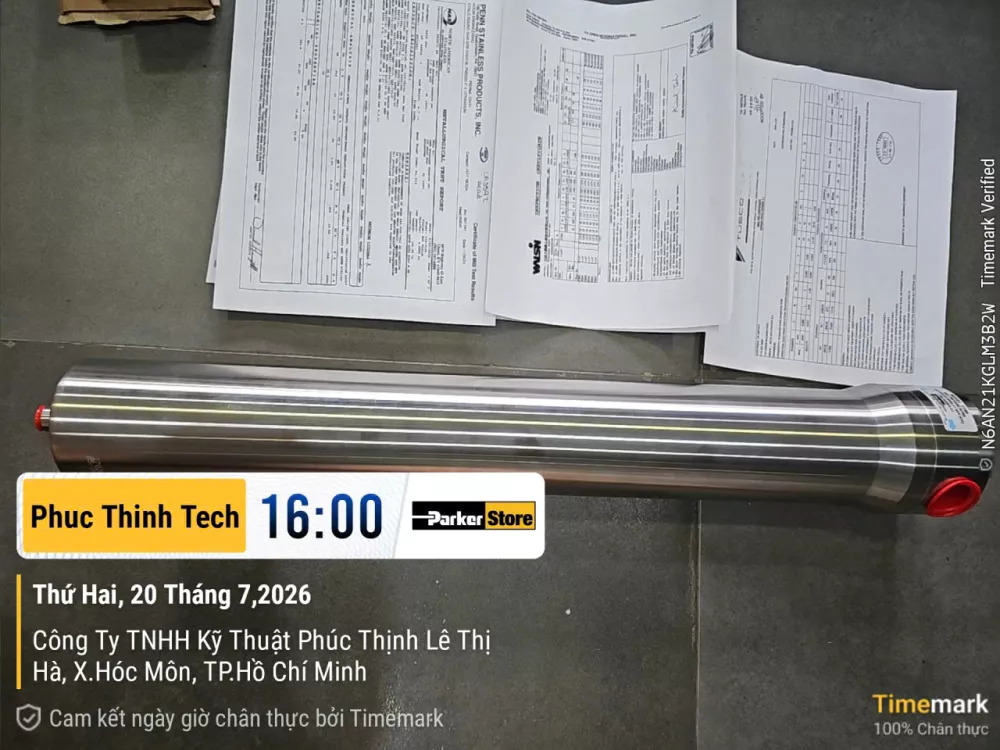

High Flow High Pressure T-type Filter
| Port Size: | 1 inch |
| Maximum Operating Pressure: | 800 psig, 55.16 barg |
| Port Type: | NPT |
| Micron Rating: | Various depending on media selected. |
| Materials of Construction: | Stainless Steel |
| Volume: | 2860.02 cm3 |
| Maximum Operating Temperature: | 400 °F, 204 °C |
| Flow Rate: | 297 ft3/min |
| Maximum Operating Pressure (psig): | 800 |
| Height: | 27 inch, 685.8 mm |
| Width: | 4 inch, 101.6 mm |
| Weight: | 32.8 lb, 14.9 kg |
| Drain Port Size: | 1/4 inch |
| Port Connection (inch): | 1 |
| Compatible Element: | 200-80-?? (Dependent on Filter Media Grade) |
| Brand: | Balston |
| Filter Type: | High Flow High Pressure T-type Filter |
| Filter Efficiency Rating: | Dependent on Media Selection |
| Materials of Construction: | Stainless Steel |
| Filtration Efficiency: | Dependent on media selection |
| Filter Type: | High Flow High Pressure T-type Filter |
| Flow Rate (CFM): | 297         |
