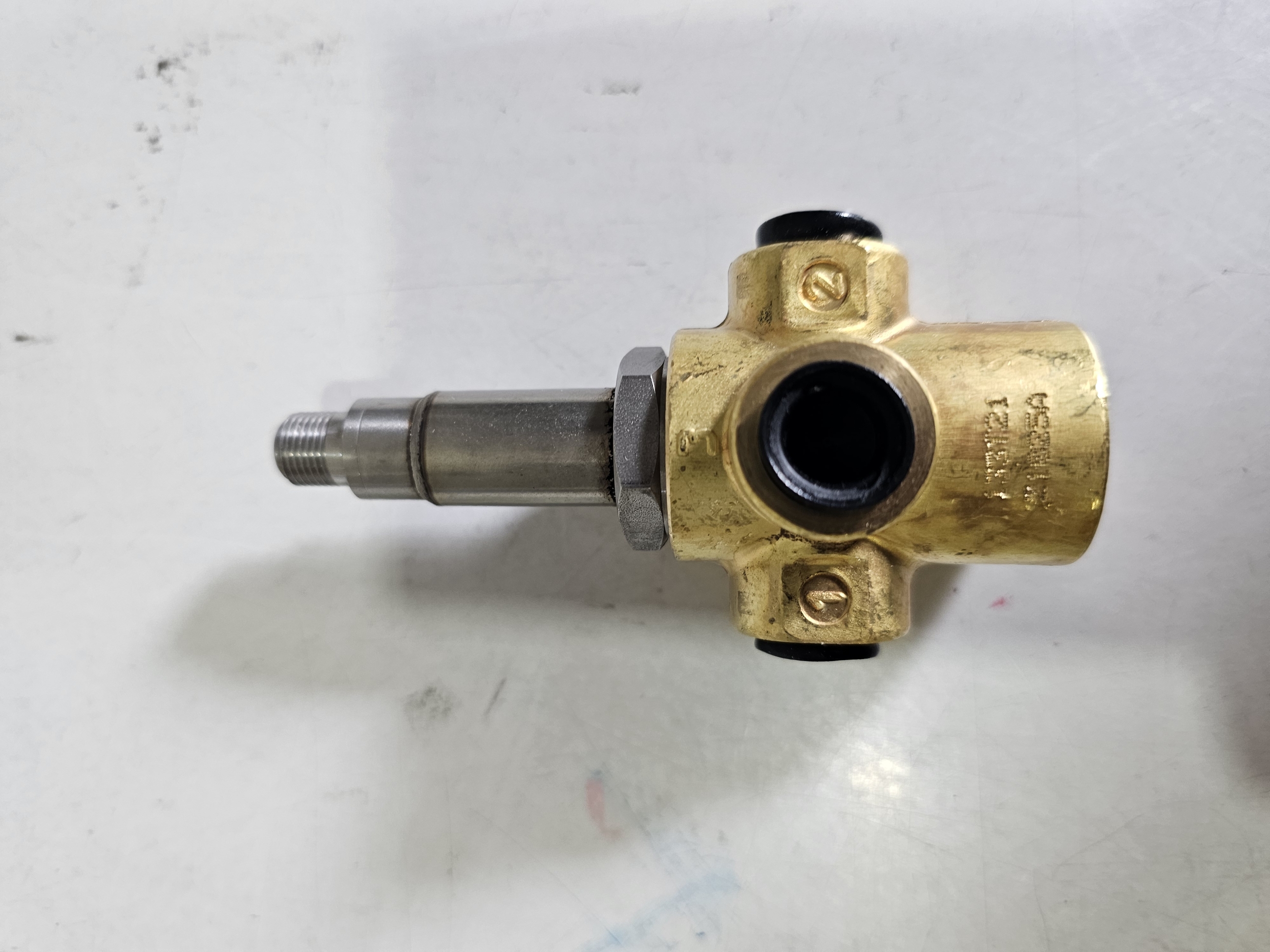

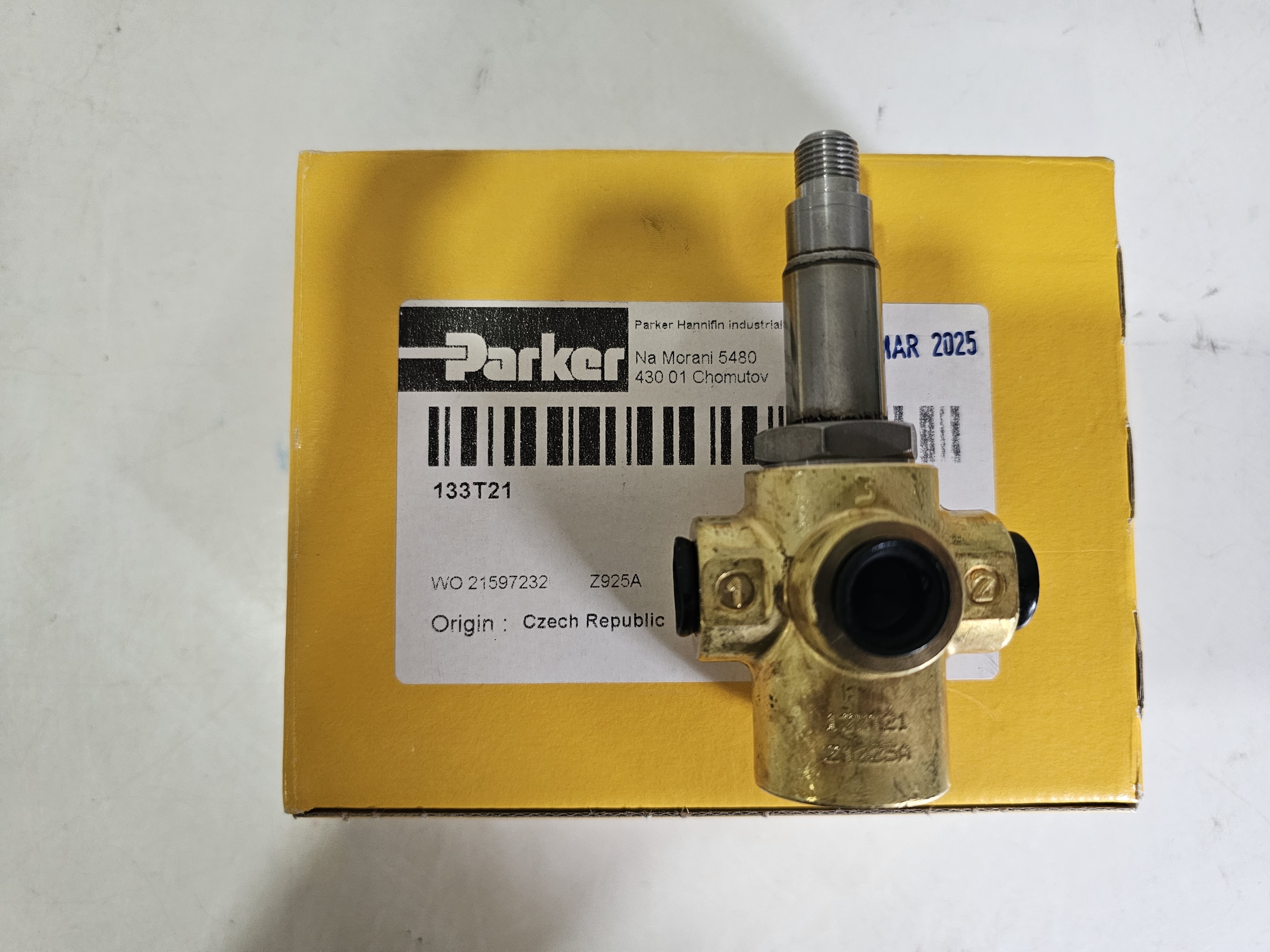

133T21 3 way valve Lucifer

133T21 Technical Specifications Body Material: Brass Voltage (V): 24VDC Product Series: General Purpose Solenoid Valves Valve Type: 3-Way Orifice 1 Size (mm): 3 Function: Universal Port Size: 1/4 inch Input Voltage: 24.0 VDC Body Material: Brass Seal Material: FKM Orifice 1 Size: 3 mm Flow Coefficient 1: 0.27 m3/hour, 4.5 L/min Power (Watts): 8 Power Consumption: 8 W Coil Type: Coil with screw terminal, 40 mm Maximum Pressure Differential: 2 bar Minimum Pressure Differential: 0 bar Number of Ports: 3 Actuation Type: Direct Operated Media: Air, Oil Port Type: BSP Orifice 2 Size: 3 mm Flow Coefficient 2: 0.27 m3/hour, 4.5 L/min Minimum Fluid Temperature: n/a Maximum Fluid Temperature: n/a Coil Specifications Met: IP44 Flow Factor 1 (l/min): 4.5 Coil Type: Coil with screw terminal, 40 mm Seal Material: FKM
