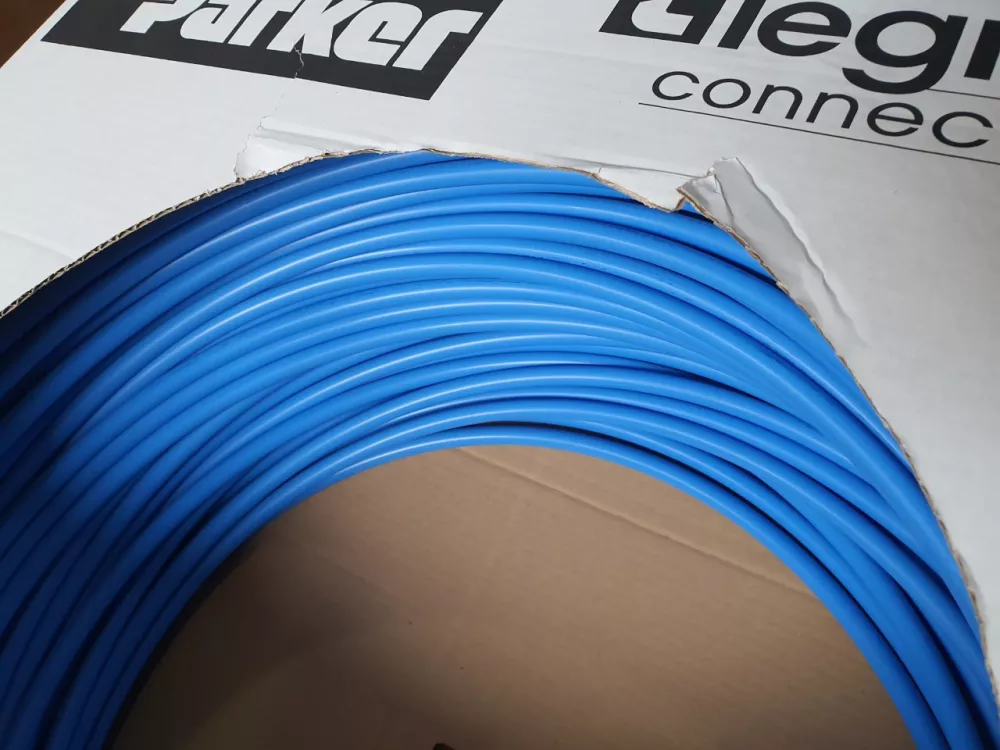

Polyamide (PA) Flexible Tubing | #1100P12 04
- Tube O.D. (mm):12
- Tube I.D. (mm):10
- Tubing Material:PA
- Color:BLUE
- Length (m):100
- Weight (per unit of measure):0.06 kg/m
- Maximum Operating Pressure:50 bar
- Minimum Operating Temperature:-40 °C
- Maximum Operating Temperature:Up to 100°C - See the graph “Working Pressure/Working Temperature”
- Vacuum Pressure Rating:755 mm-Hg
- Weight:7 kg/package
- Bend Radius:95 mm
- Number of Tubes:1
- Application:Packaging, Tooling, Compressed Air, Motion Technologies, Robotics, Industrial Machinery
- Media:Semi-Rigid PA: Compressed air, other fluids /Rigid PA: Compressed air,lubricants, other fluids
- Specifications Met:Industrial: DI: 2002/95/EC (RoHS), 2011/65/EC; DI: 97/23/EC (PED); RG: 1907/2006 (REACH)/Transportation: Chemical performance and resistance tested according to DIN 74324 -1 / DIN 73378 / ISO 7734
