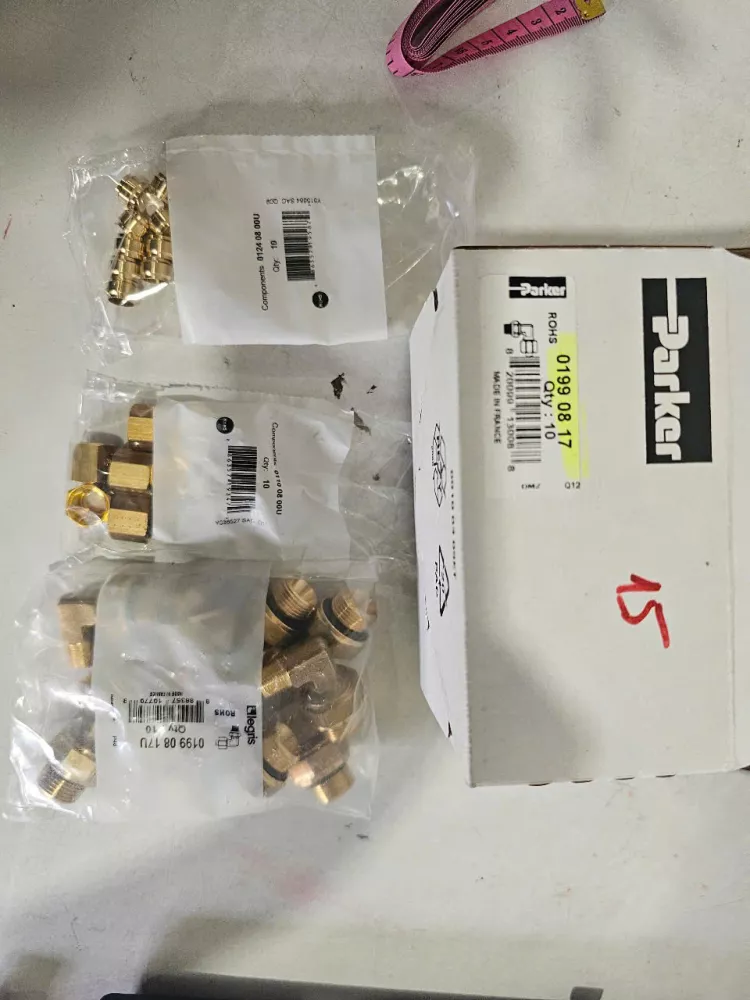

0199 08 17 BRASS FITTING PARKER LEGRIS BOX 10

0199 08 17 .  BOX 10  BRASS FITTING PARKER LEGRIS BOX 10

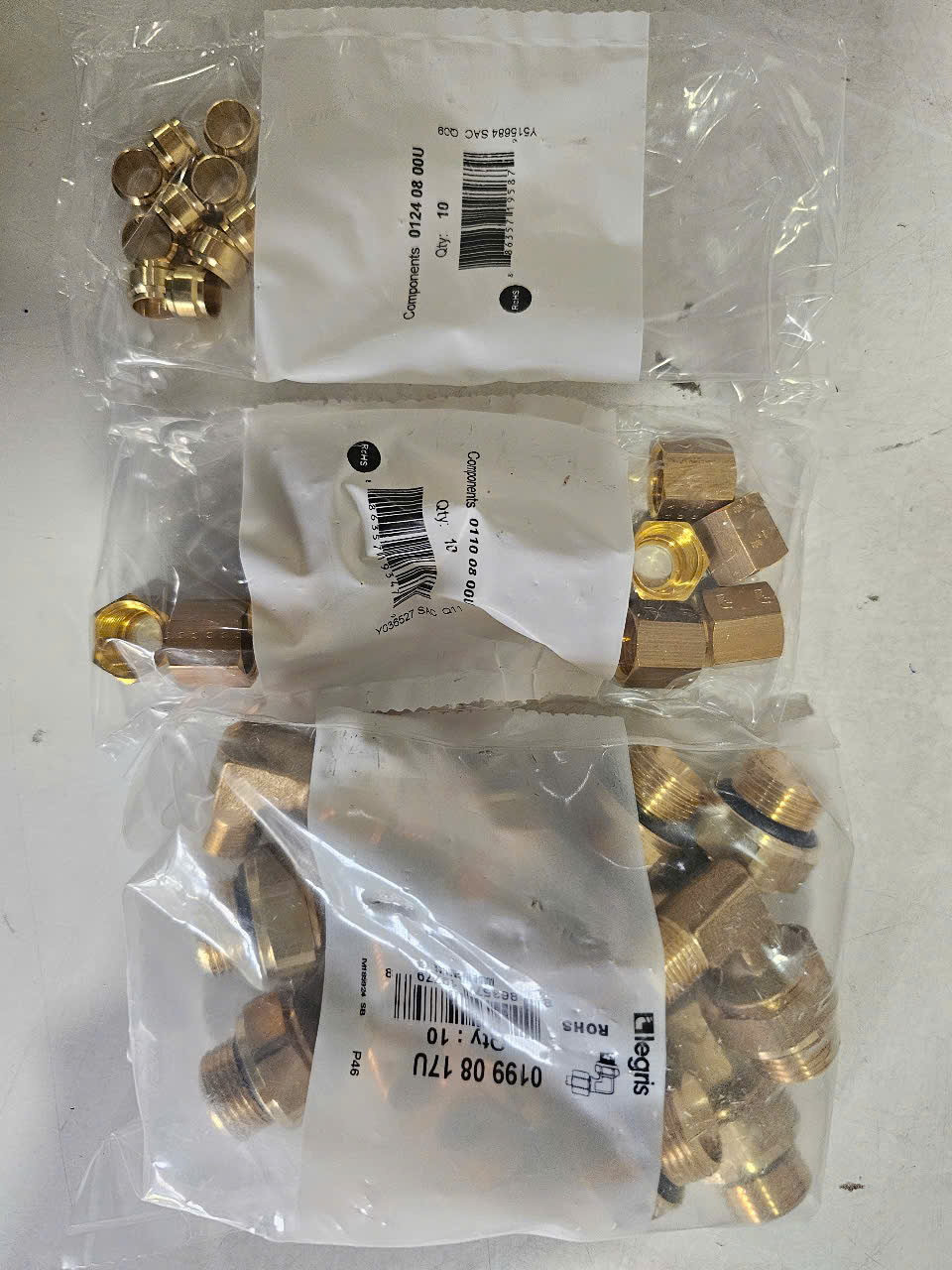

0199 08 17 = 0199 08 17U + 0110 06 00U + 0124 08 00U

• O-Ring Material:NBR
• Product Type:Brass compression fittings
• Connection 1 Thread Size (metric):G3/8
• Connection 1 Thread Style:BSPP
• Connection 2 Tube O.D. (mm):8
• Shape:Male stud elbow adjustable 90° thread
• Nut Material:BRASS
• Sleeve Material:BRASS
• Minimum Operating Temperature:-40 °C
• Maximum Operating Temperature:100 °C
• Quantity per Box:10
• Weight:0.065 kg
• Application:Pneumatics, Cooling, Automotive Process, Lubrication, Fluid Transmission, Packaging, Industrial Machinery
• Media:Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
• Specifications Met:CNOMO: E07.21.115N (for robotic equipment in the automotive industry), DI: 97/23/EC (PED), RG: 1907/2006 (REACH), DI: 2002/95/EC (RoHS), DI: 94/9/EC (ATEX)
